Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

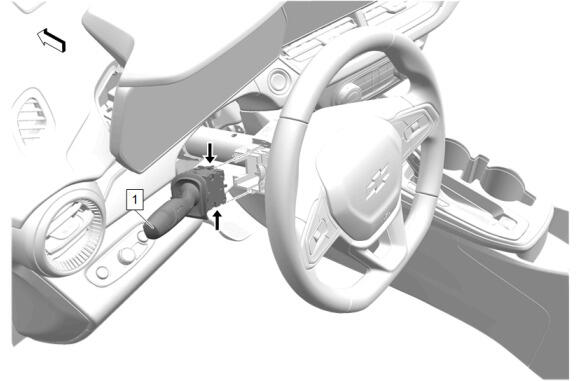

Turn Signal Switch (1) @ Turn Signal Switch Bracket - Install
Secure the retaining tabs.
Courtesy of GENERAL MOTORS COMPANY

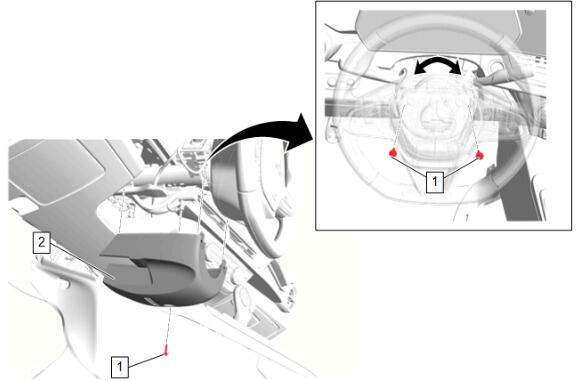

Instrument Panel Steering Column Lower Trim Cover (2) - Install

CAUTION:

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

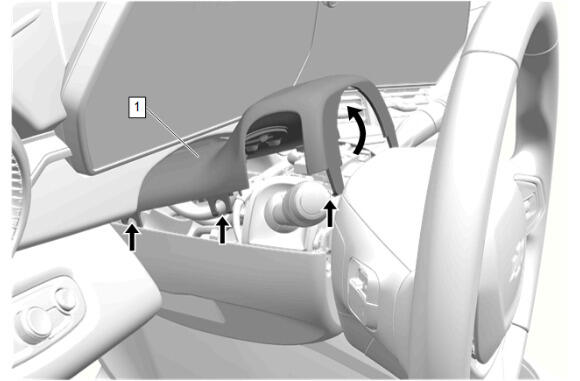

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover in the opposite direction of the arrow.
