Installation Procedure

  1. GM5925513Courtesy of GENERAL MOTORS COMPANY

    Liftgate Close Switch (1) - Install

  2. Secure the retaining tabs.

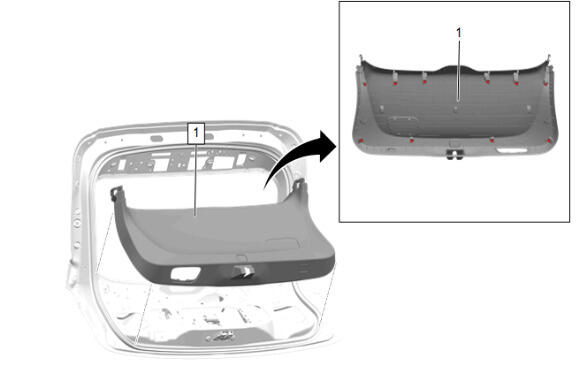

  3. GM5920395Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Liftgate Lower Trim Finish Panel (1) - Install

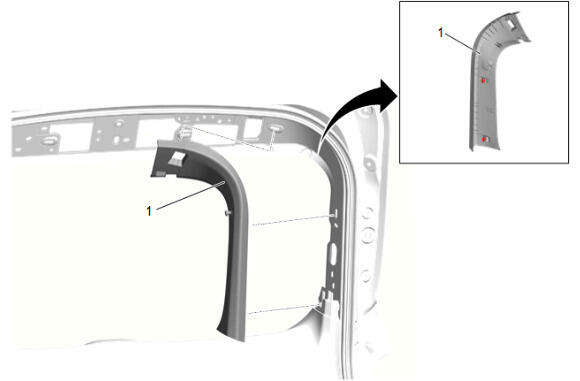

  5. GM5920373Courtesy of GENERAL MOTORS COMPANY

    Liftgate Upper Side Trim Finish Panel (1) - Left Side and Right Side - Install [2x]

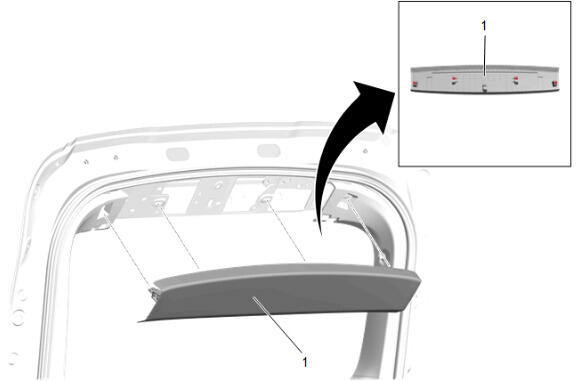

  6. GM5920285Courtesy of GENERAL MOTORS COMPANY

    Liftgate Upper Center Trim Finish Panel (1) - Install

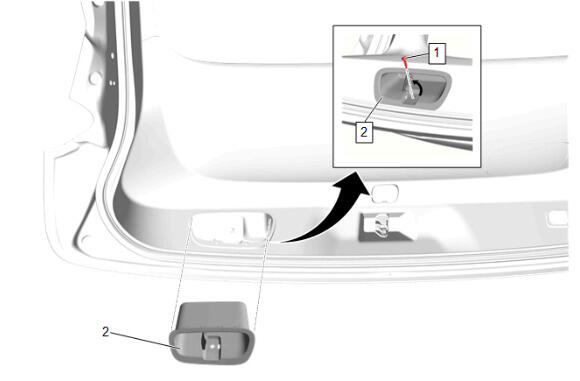

  7. GM5920383Courtesy of GENERAL MOTORS COMPANY

    Install the liftgate trim finish panel pull cup (2).

    8. CAUTION:

    Refer to Fastener Caution .

  8. Liftgate Lower Trim Finish Panel Bolt (1) - Install and tighten - Fastener Specifications
  9. Close the liftgate.
