Installation Procedure

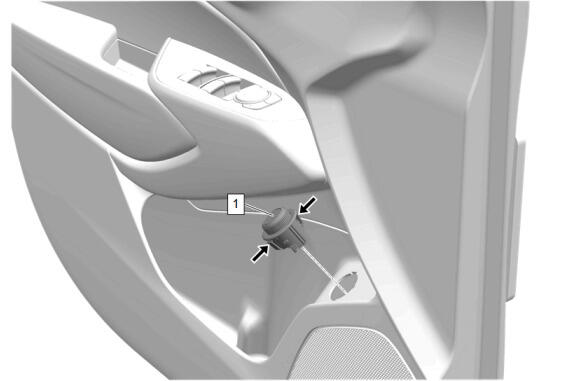

  1. GM6377372Courtesy of GENERAL MOTORS COMPANY

    Liftgate Release Switch (1) - Install

  2. Ensure that the retaining tabs are fully secured.
  3. Connect the electrical connector.
  4. Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
