Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

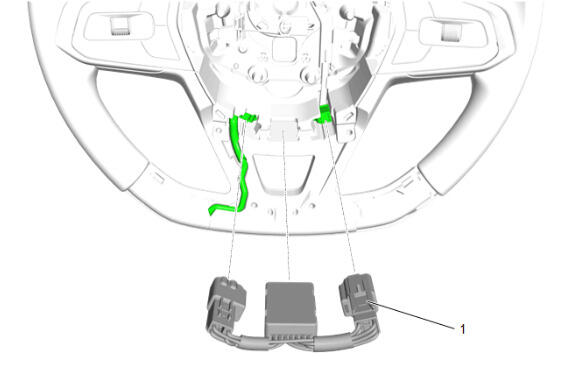

Heated Steering Wheel Module (1) - Install
Courtesy of GENERAL MOTORS COMPANY

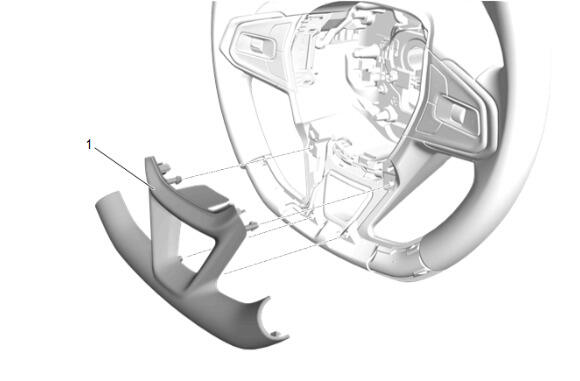

Steering Wheel Spoke Lower Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Install any connector position assurance (CPA) devices or secondary locks.

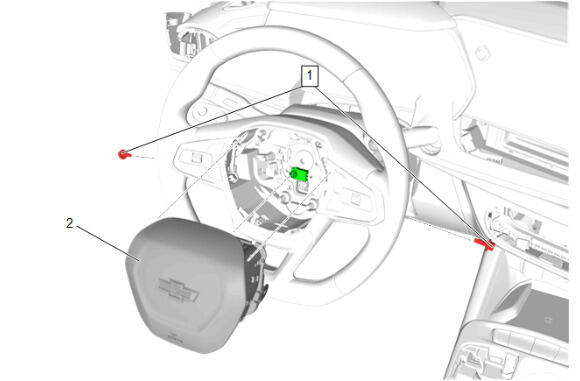

Steering Wheel Airbag (2) - Install

CAUTION:

Steering Wheel Airbag Bolt (1) Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Install the 2 steering wheel airbag access hole covers (1).
Enable the SIR System. SIR Disabling and Enabling
