Front Motor

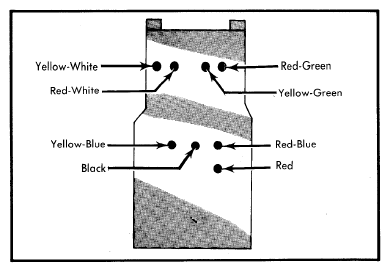

Connect a jumper lead between Red wire terminal in center section of connector and either Red-White or Yellow-White connection. Connect another jumper between Black terminal in center section and open connection in rear section. If motor does not operate, reverse jumper connections. If motor still does not operate, either harness or complete three-motor assembly should be replaced.
