Low-Reverse Band (Rear): Notes

NOTE: Low-Reverse band adjusting screw is located on rear servo lever. Transmission oil pan must be removed to provide access to band adjusting screw.

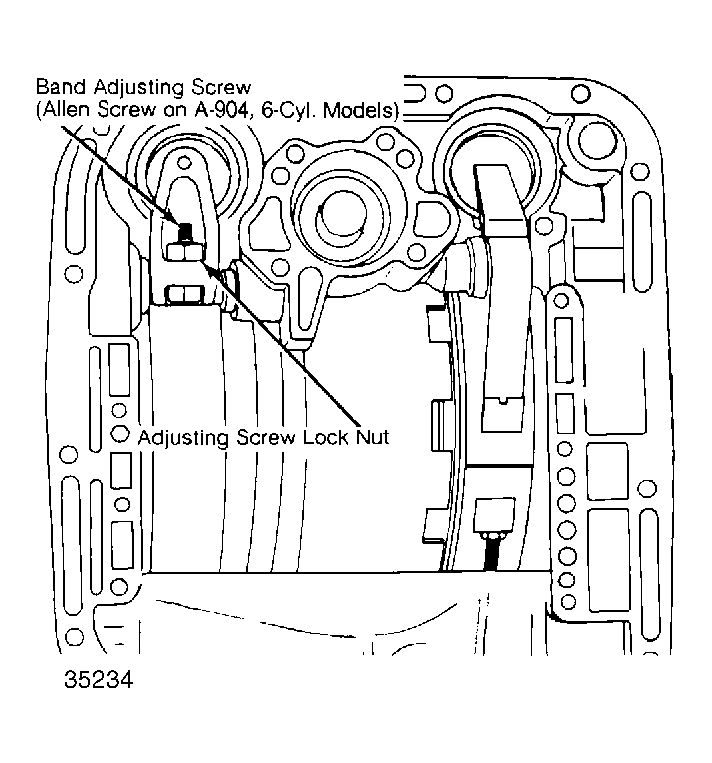

Fig 1: Low-Reverse Band Adjustment (Rear) Screw Location
G35234Courtesy of DAIMLERCHRYSLER CORP.
