Home >> Chrysler >> 1983 >> Lebaron Convertible L4-156 2.6L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Coil >> Locations

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Ignition Coil: Locations

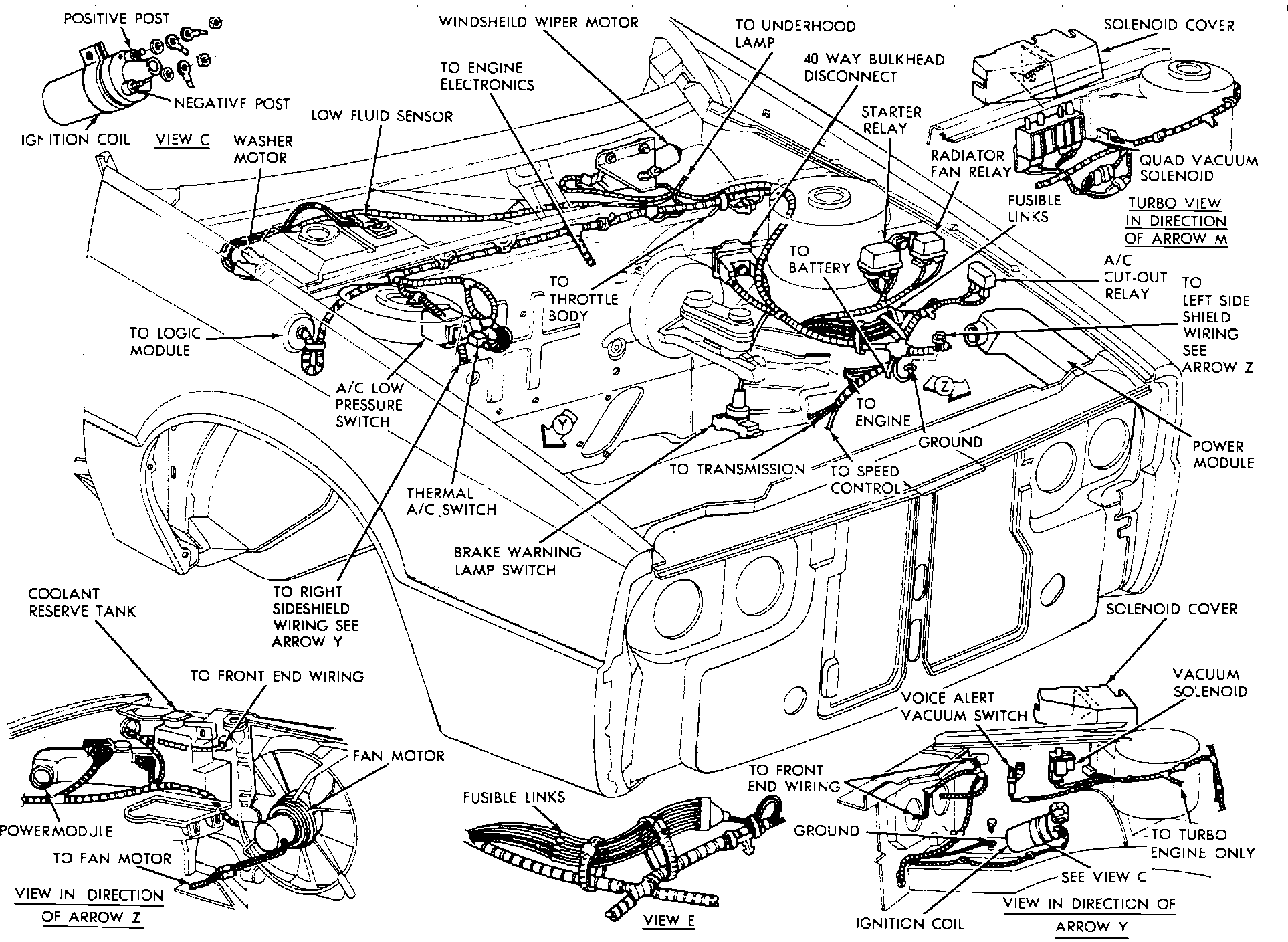

Engine Compartment Electrical Components:
