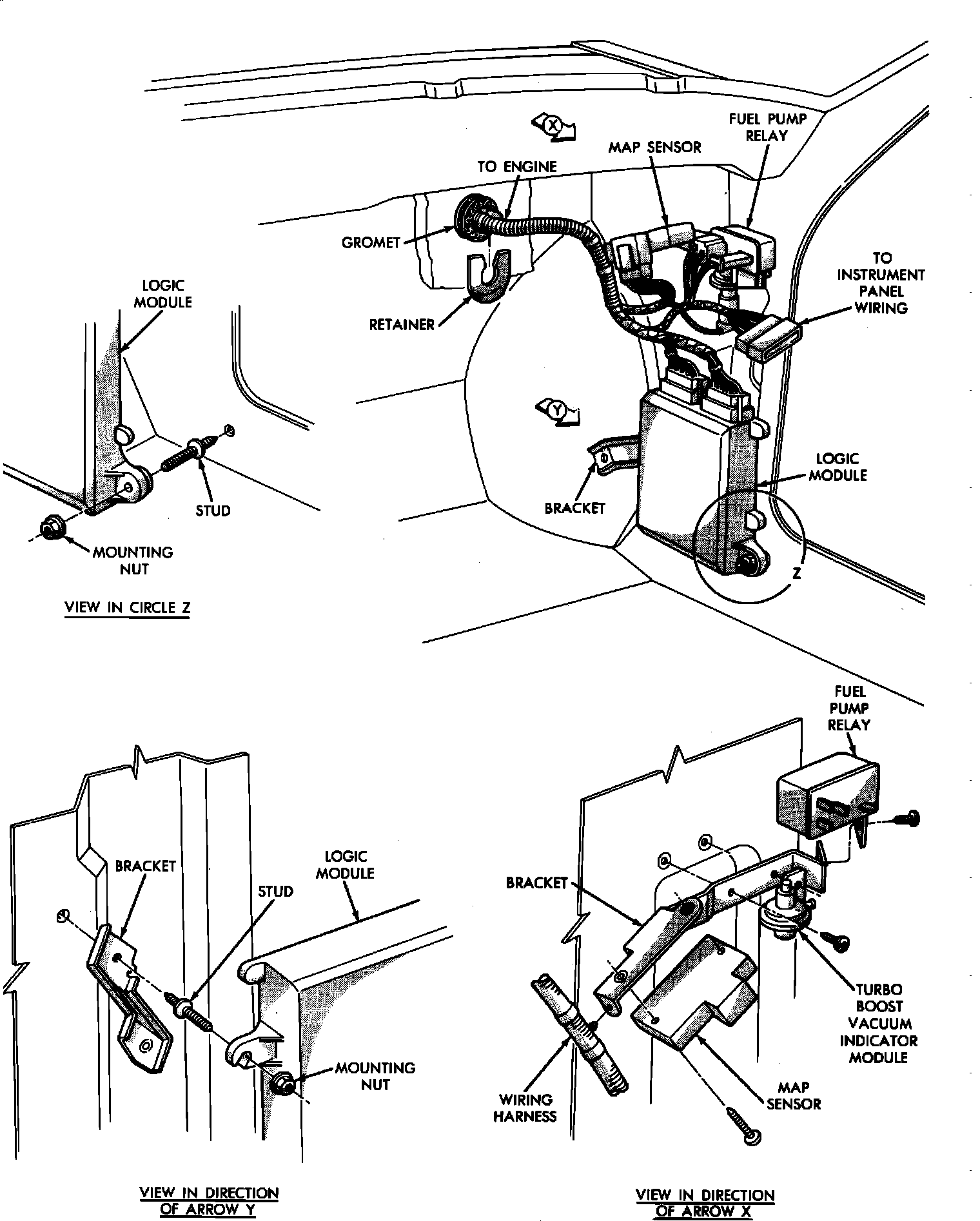

Engine Control Module: Locations

RH Front Corner Of Passenger Compartment:




In RH Front Corner Of Passenger Compartment, Under I/P
