Wiring Diagrams

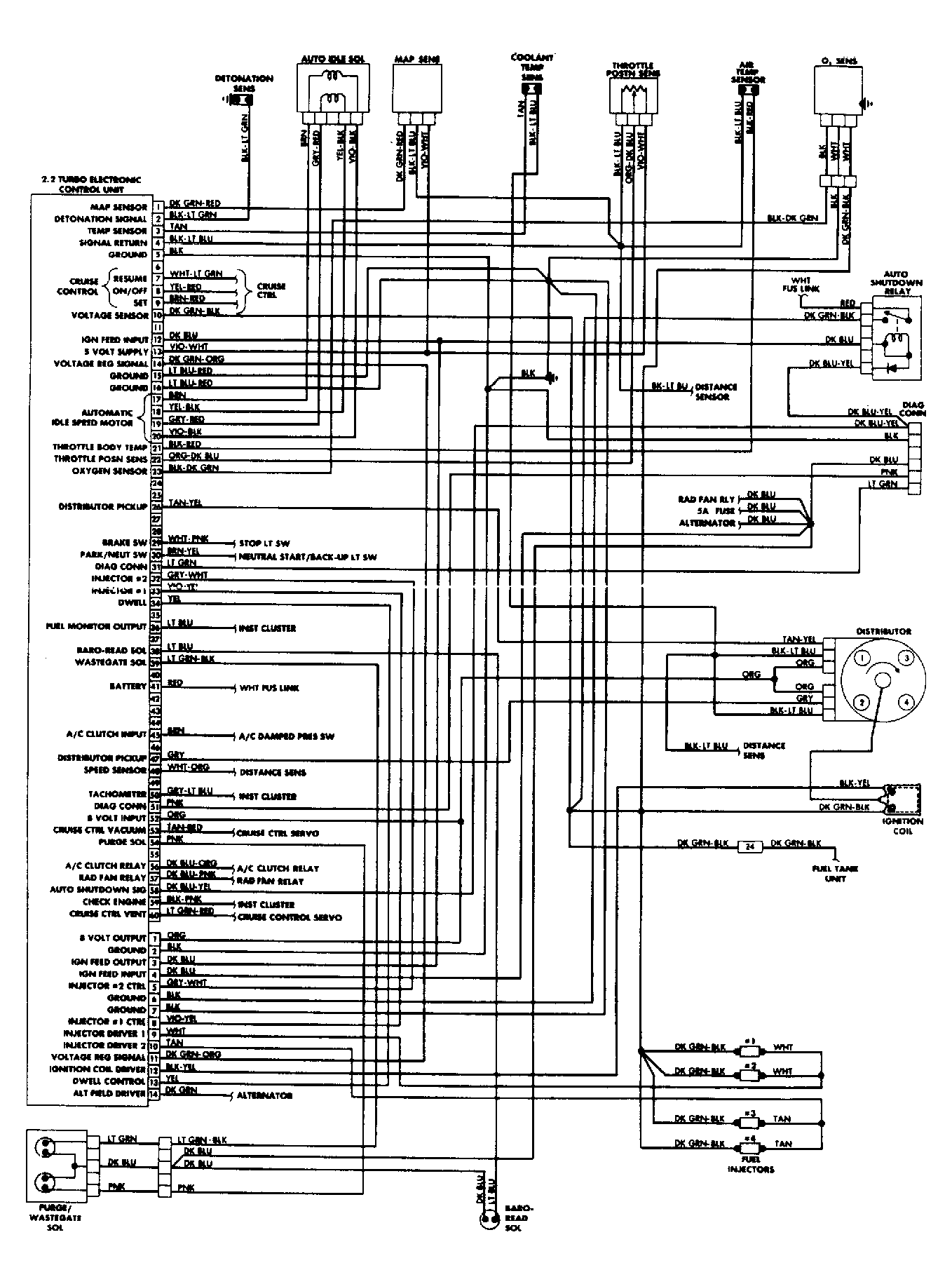

Fig 1: MPFI System Wiring Diagram (2.2L Turbo)

G54303

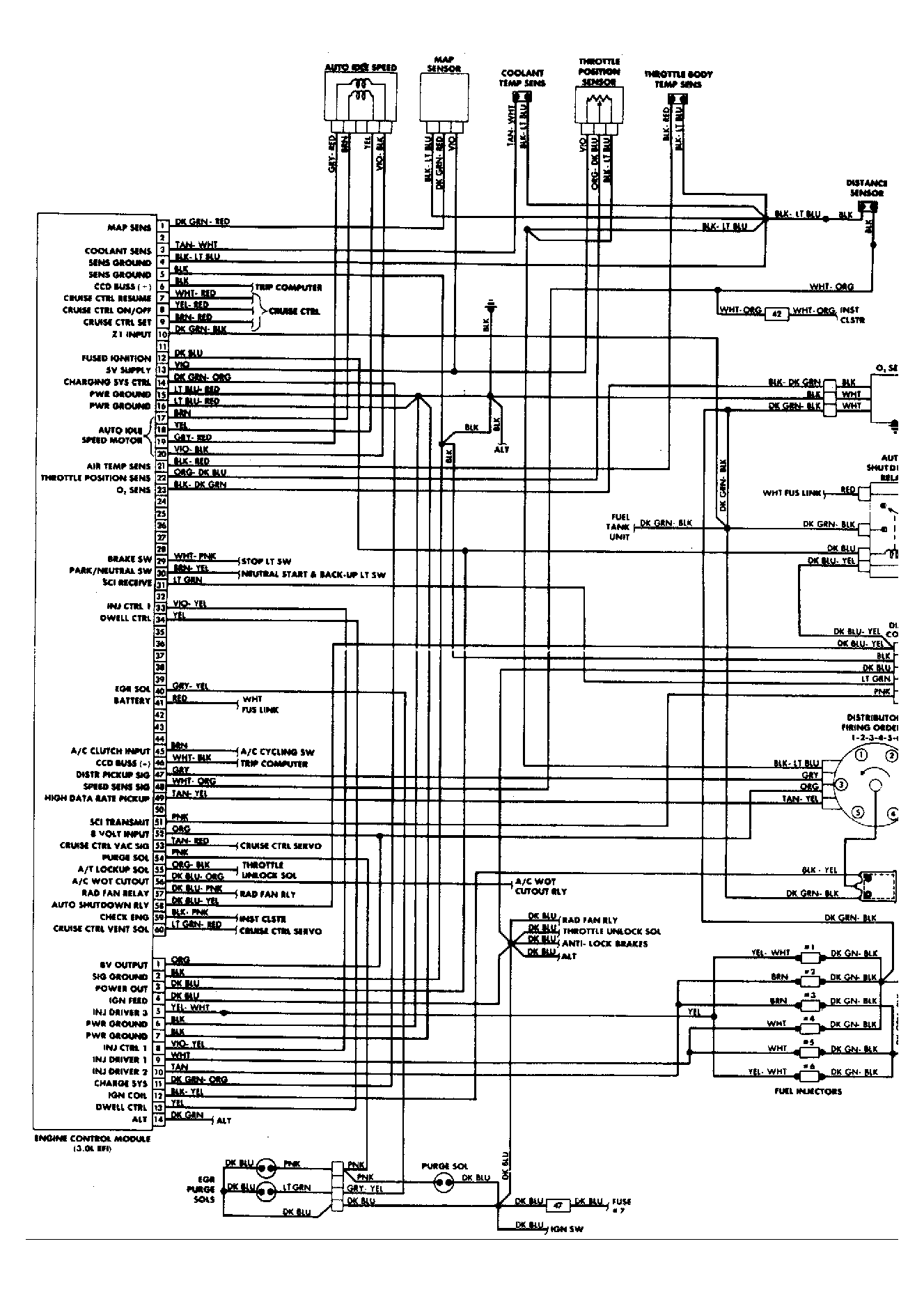

Fig 2: MPFI System Wiring Diagram (3.0L)

G54304
