Test 10H: LR Wheel Speed Sensor Fault

Fig 1: Test 10H - LR Wheel Speed Sensor Fault, Schematic
G91G10807

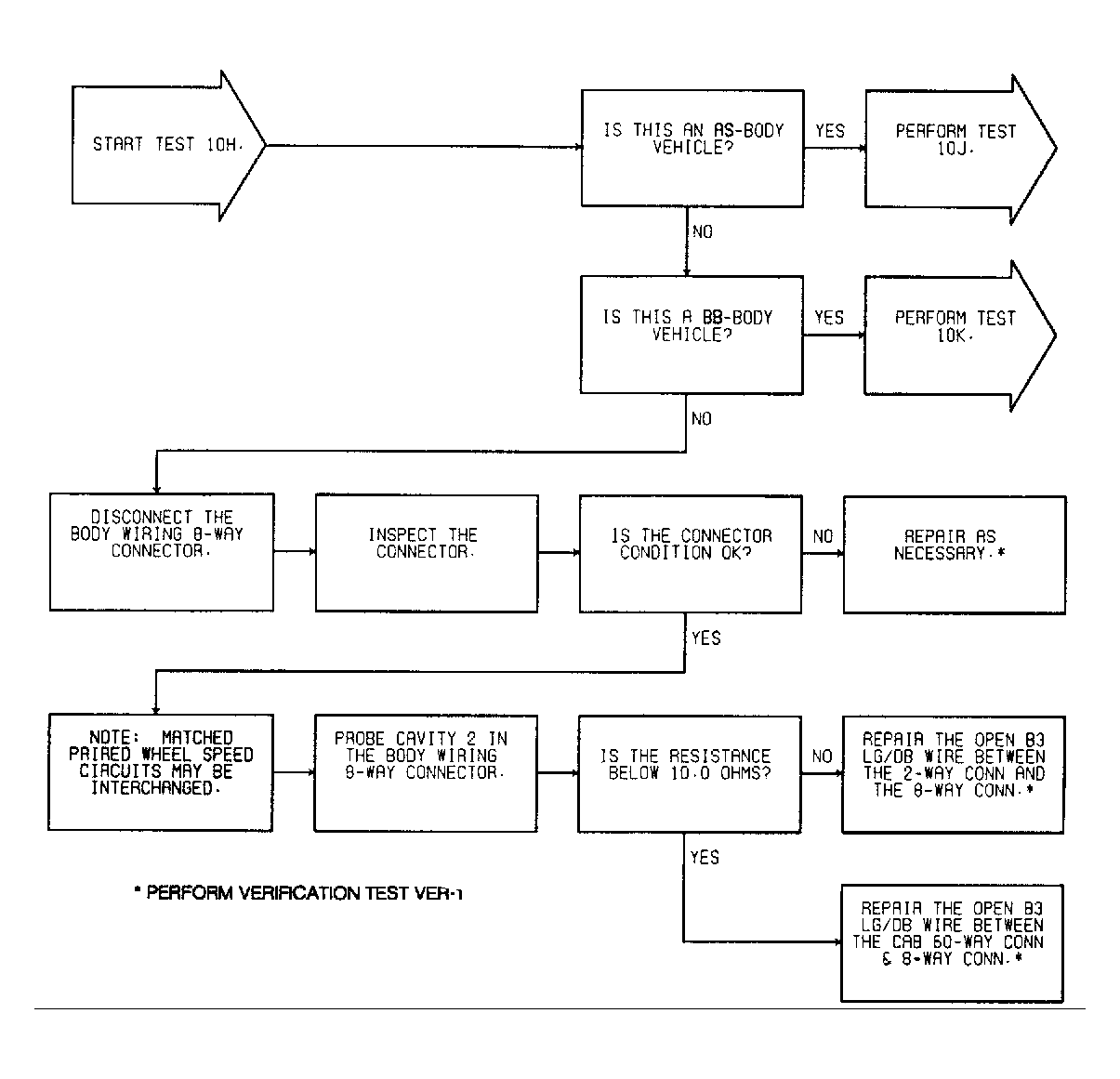

Fig 2: Test 10H - LR Wheel Speed Sensor Fault, Flow Chart
G91G10831
