Test 112 Thru 115: Repairing Bus System
>>
Test 112: Repair Bus System For Short To 5 Volts
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test 112: Repair Bus System For Short To 5 Volts

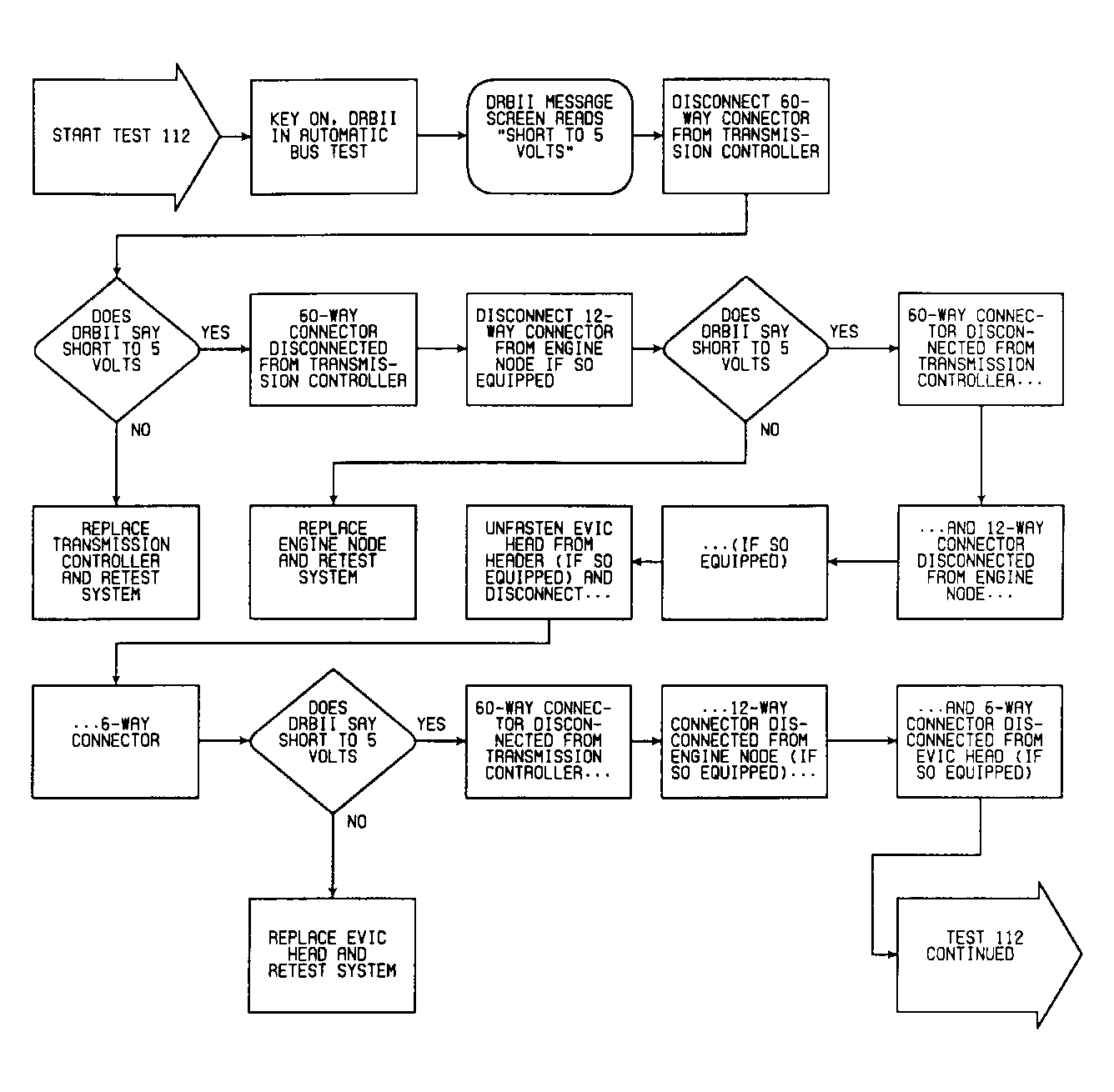

Fig 1: Test 112: Flow Chart (1 of 2)

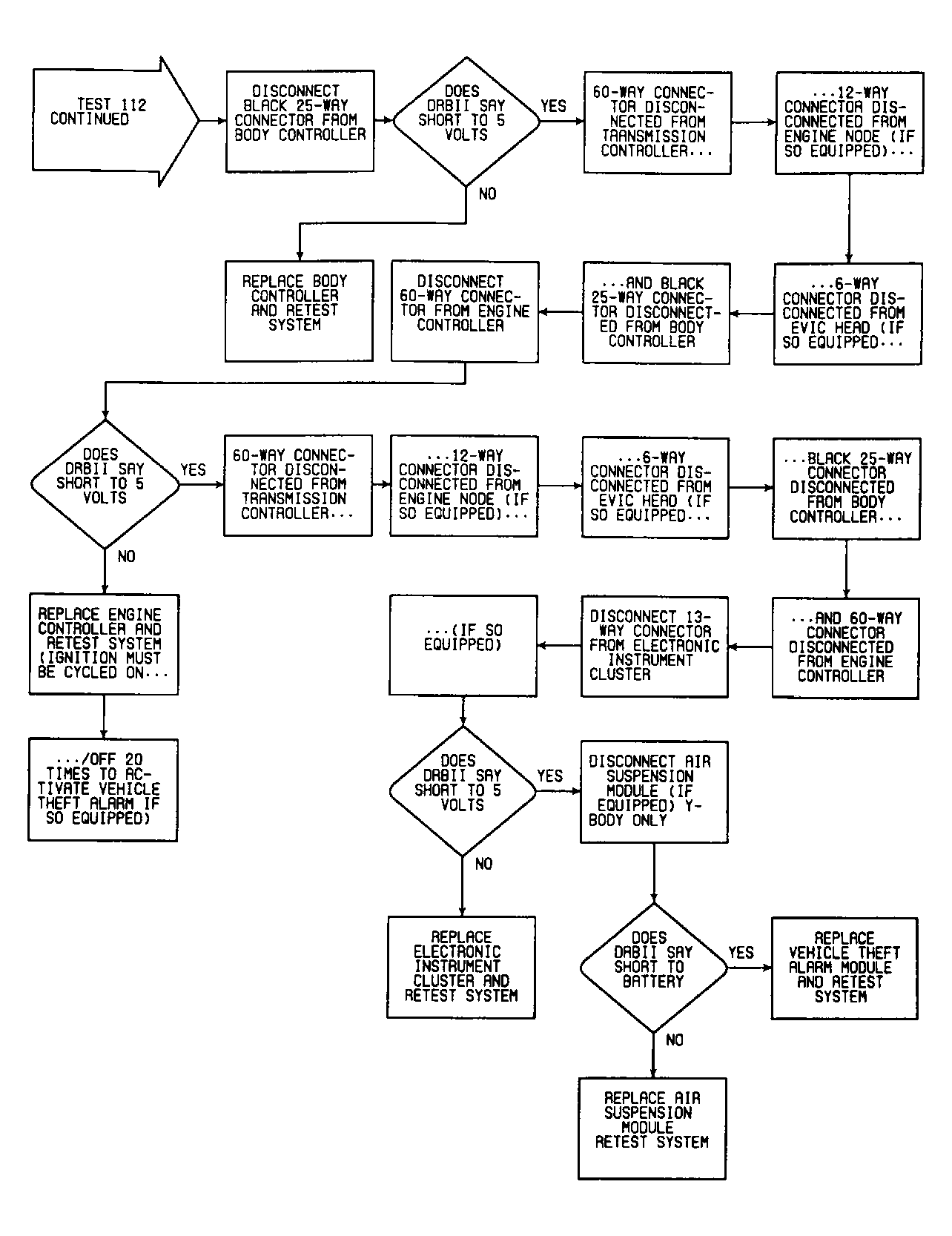

Fig 2: Test 112: Flow Chart (2 of 2)
