Test 115: Repair Bus System For No Response Message

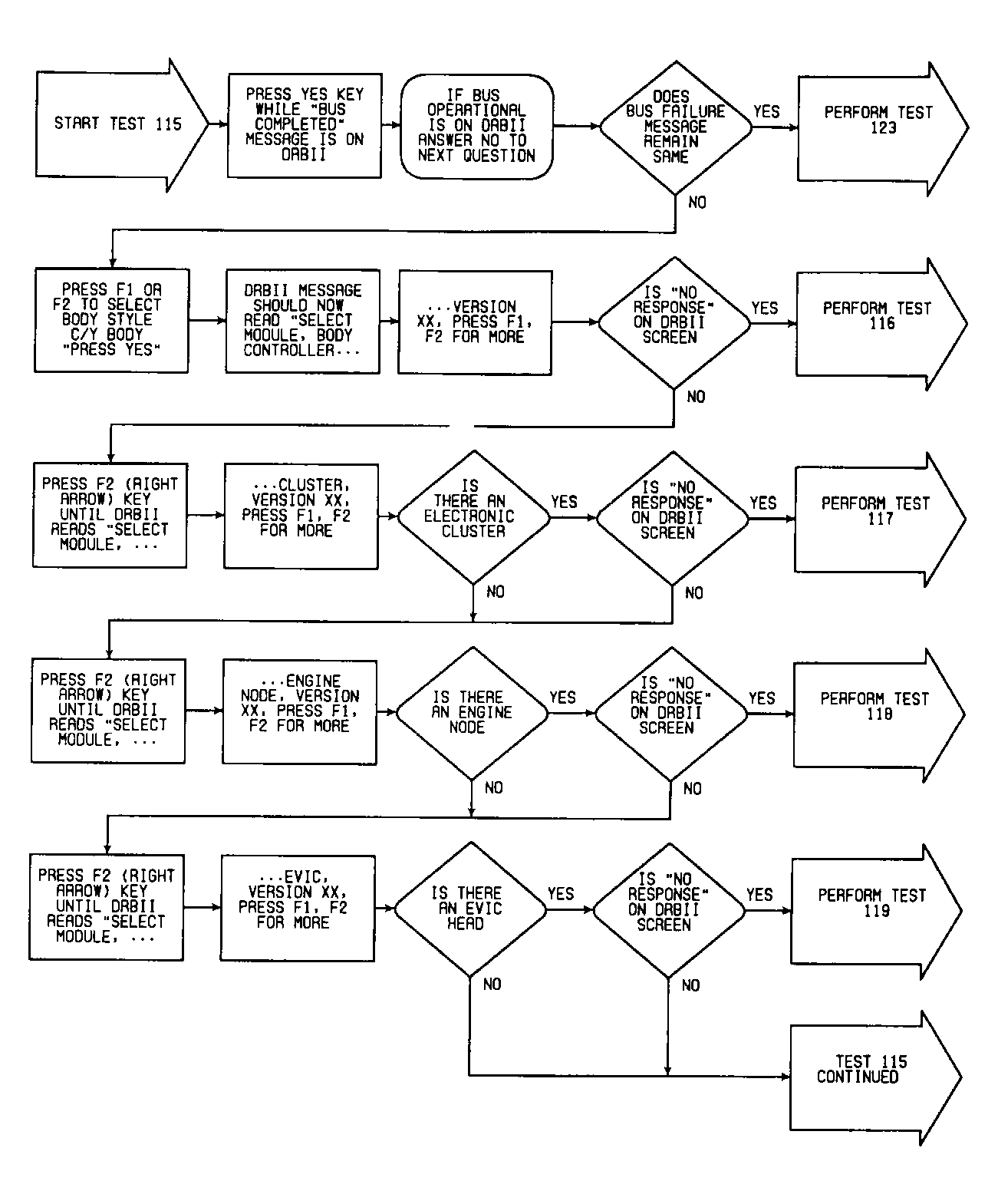

Fig 1: Test 115: Flow Chart (1 of 3)

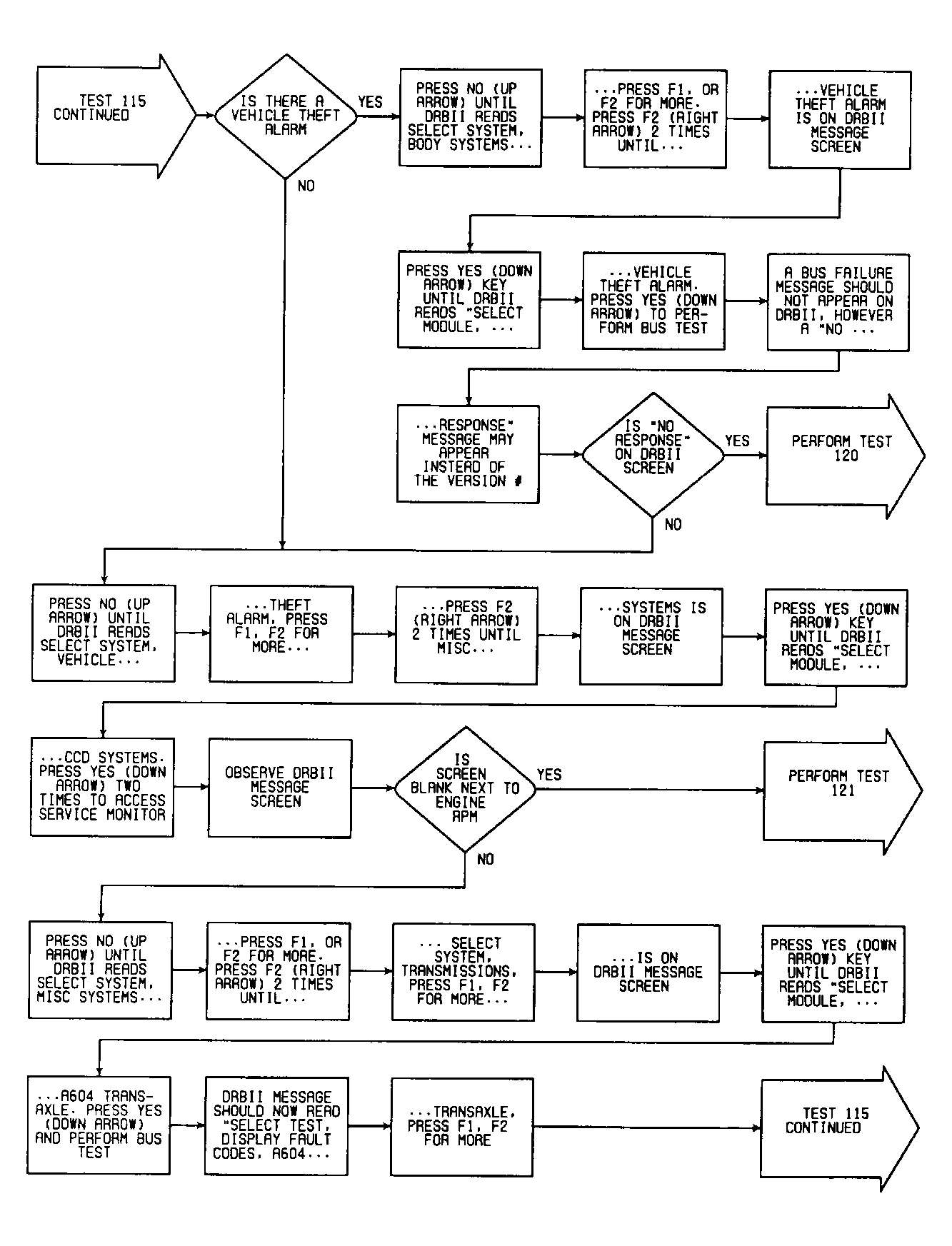

Fig 2: Test 115: Flow Chart (2 of 3)

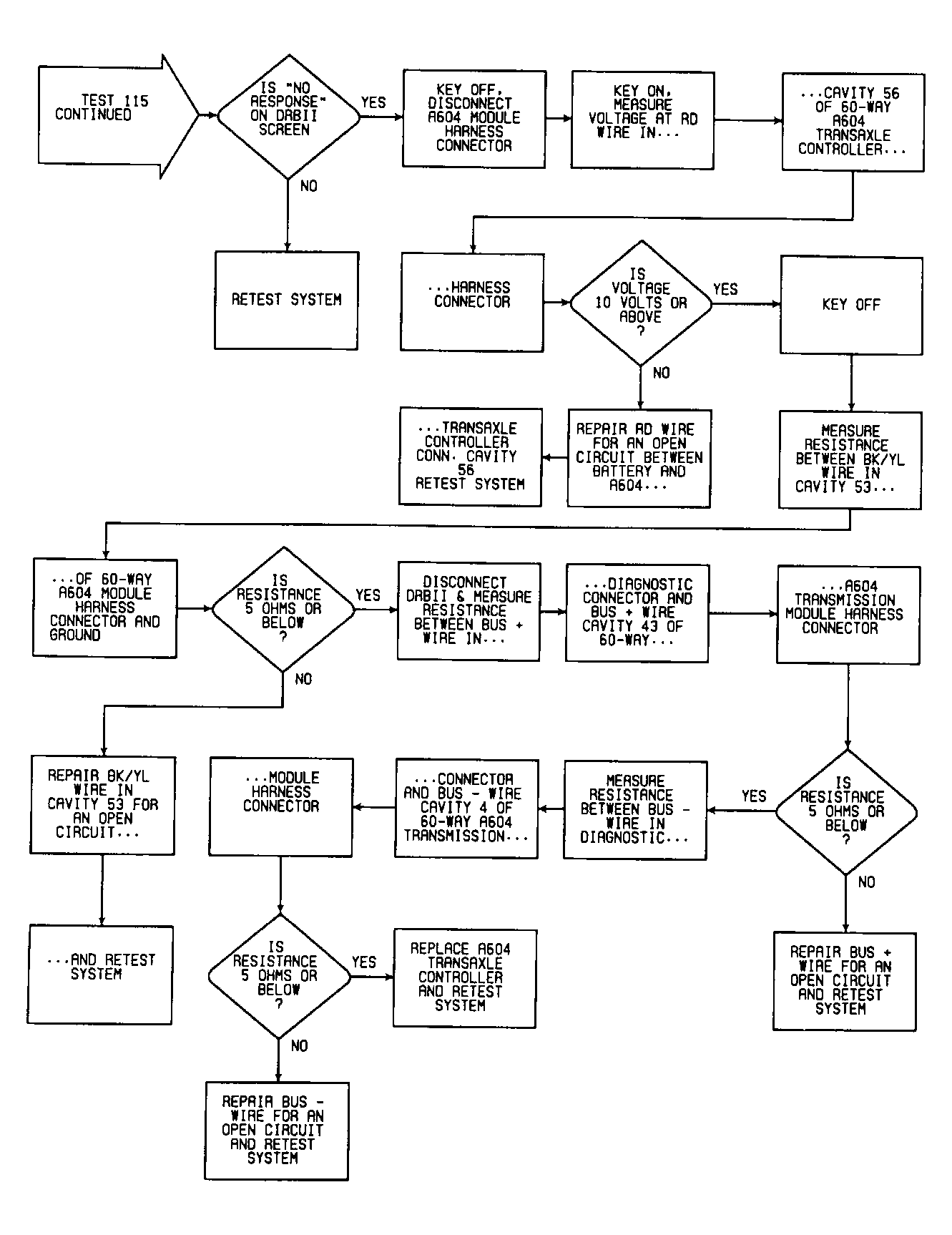

Fig 3: Test 115: Flow Chart (3 of 3)
