Compass/Temp Module Test 90: Finding Problem With Compass/Temp Module Not Covered By Fault Codes

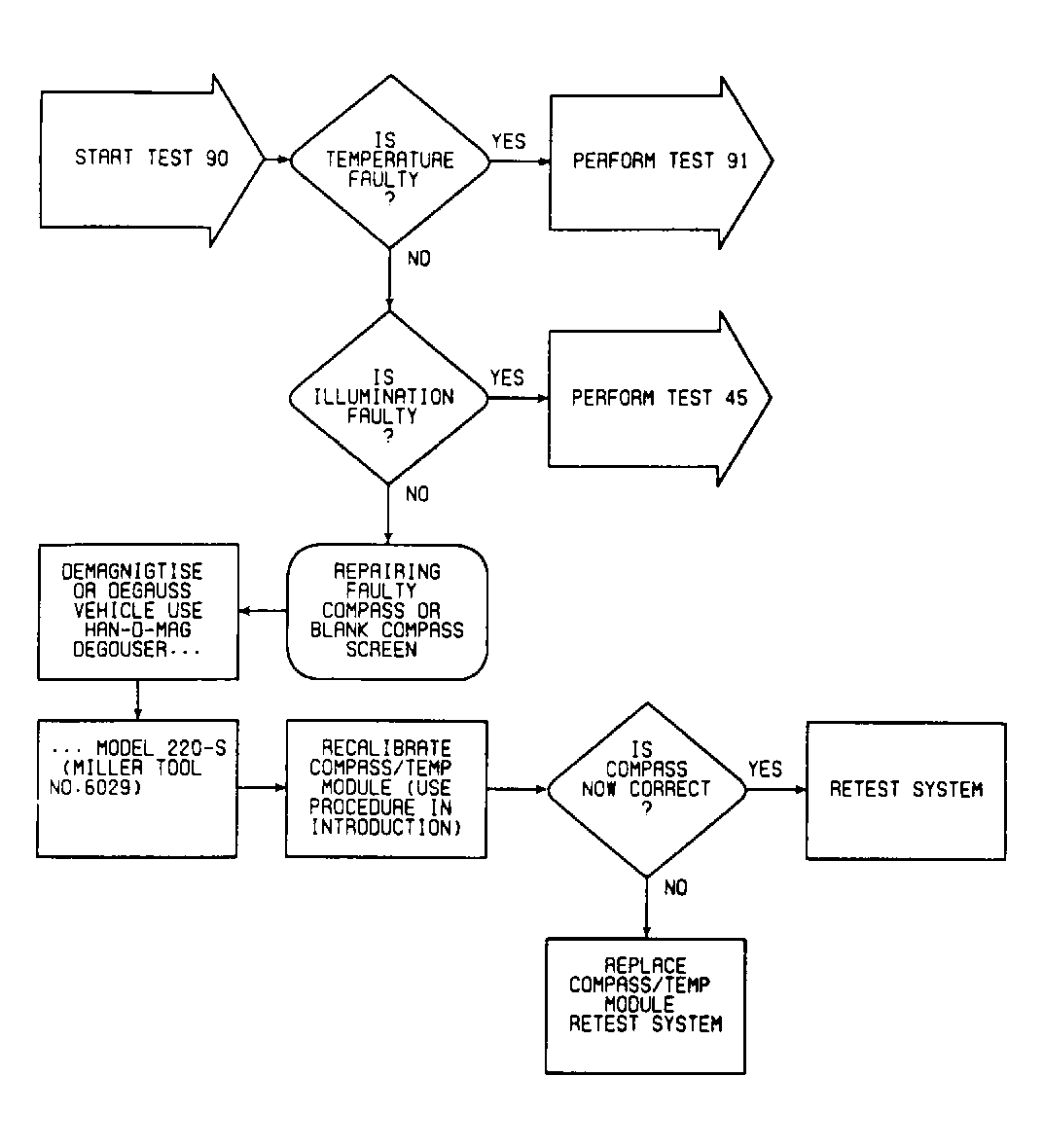

Fig 1: Test 90: Flow Chart
