Theft Alarm Module Test 58: Power Door Unlock Test
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Theft Alarm Module Test 58: Power Door Unlock Test

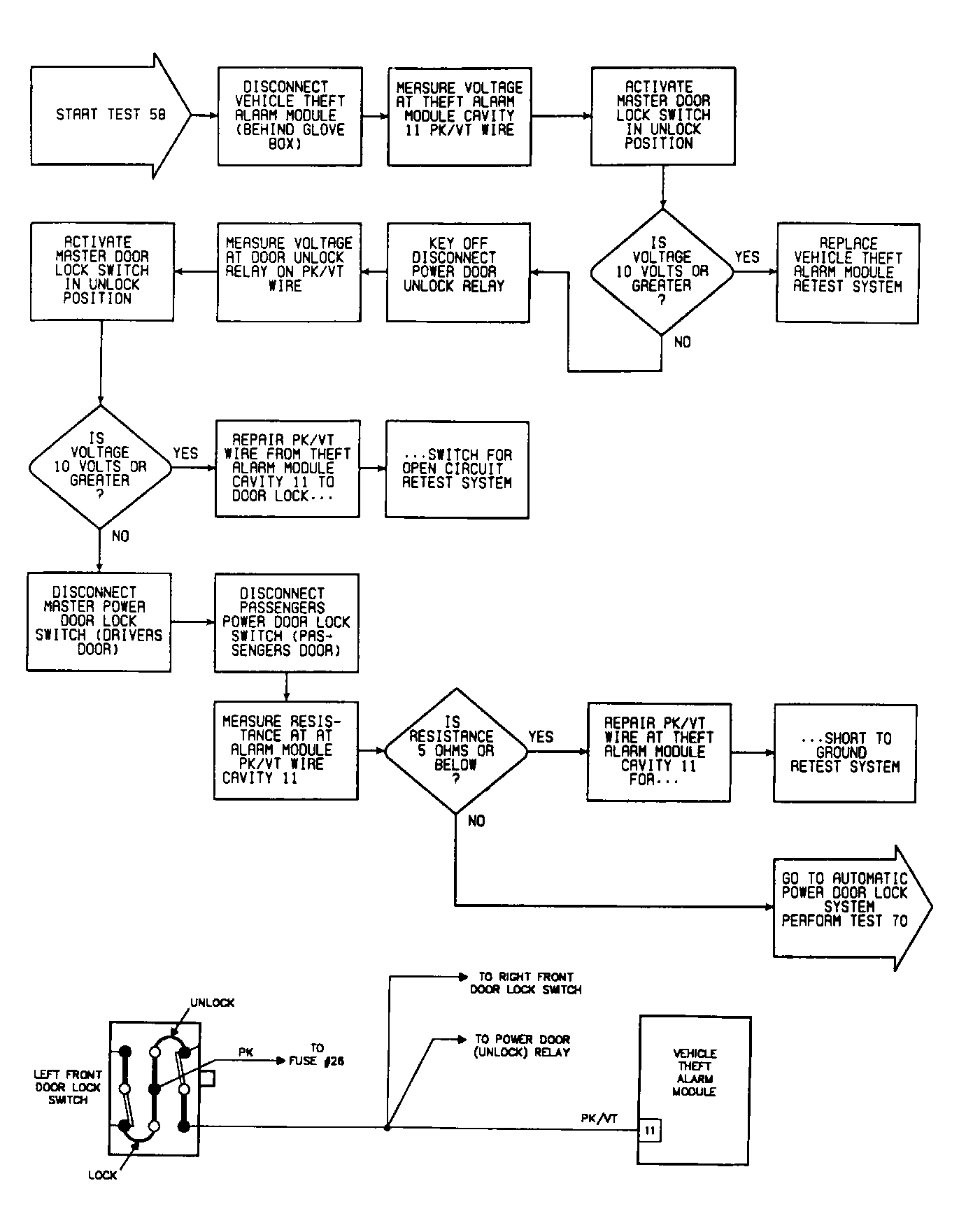

Fig 1: Test 58 Circuit Diagram & Flow Chart
