Test 22B - Checking Controller & Wiper Switch

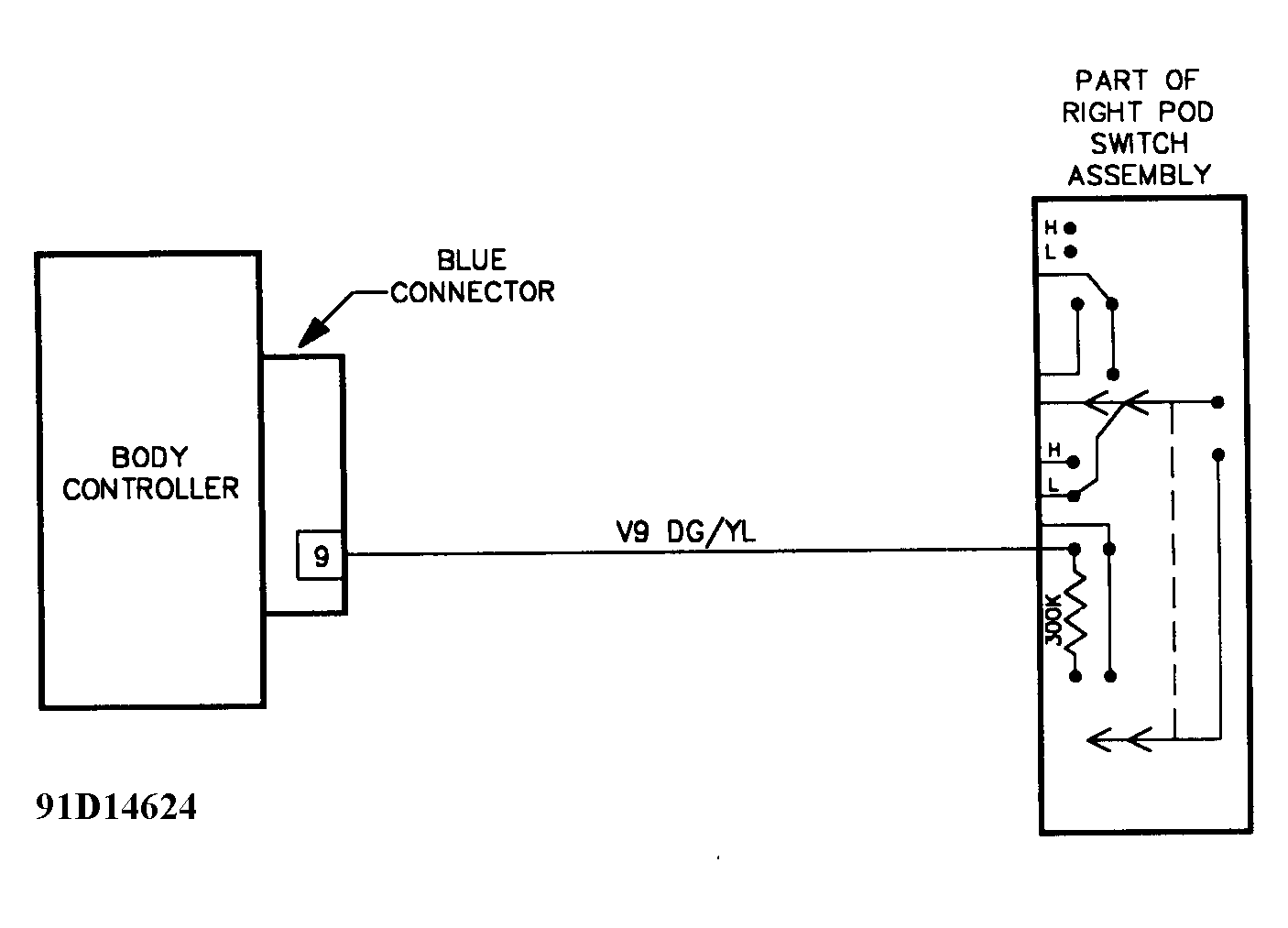

Fig 1: Test 22B Schematic - Checking Controller & Wiper Switch

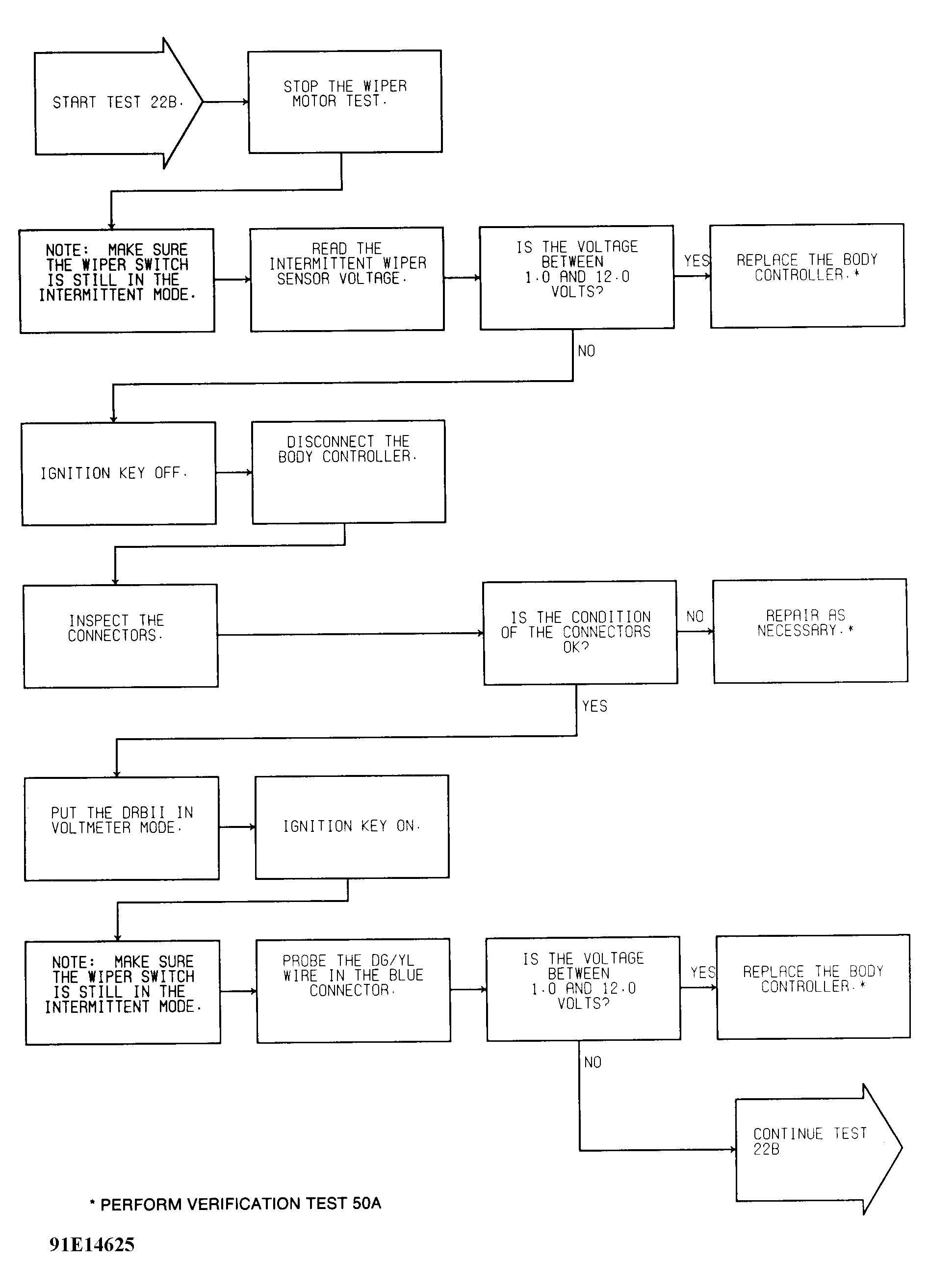

Fig 2: Test 22B Flow Chart (1 of 2) - Checking Controller & Wiper Switch

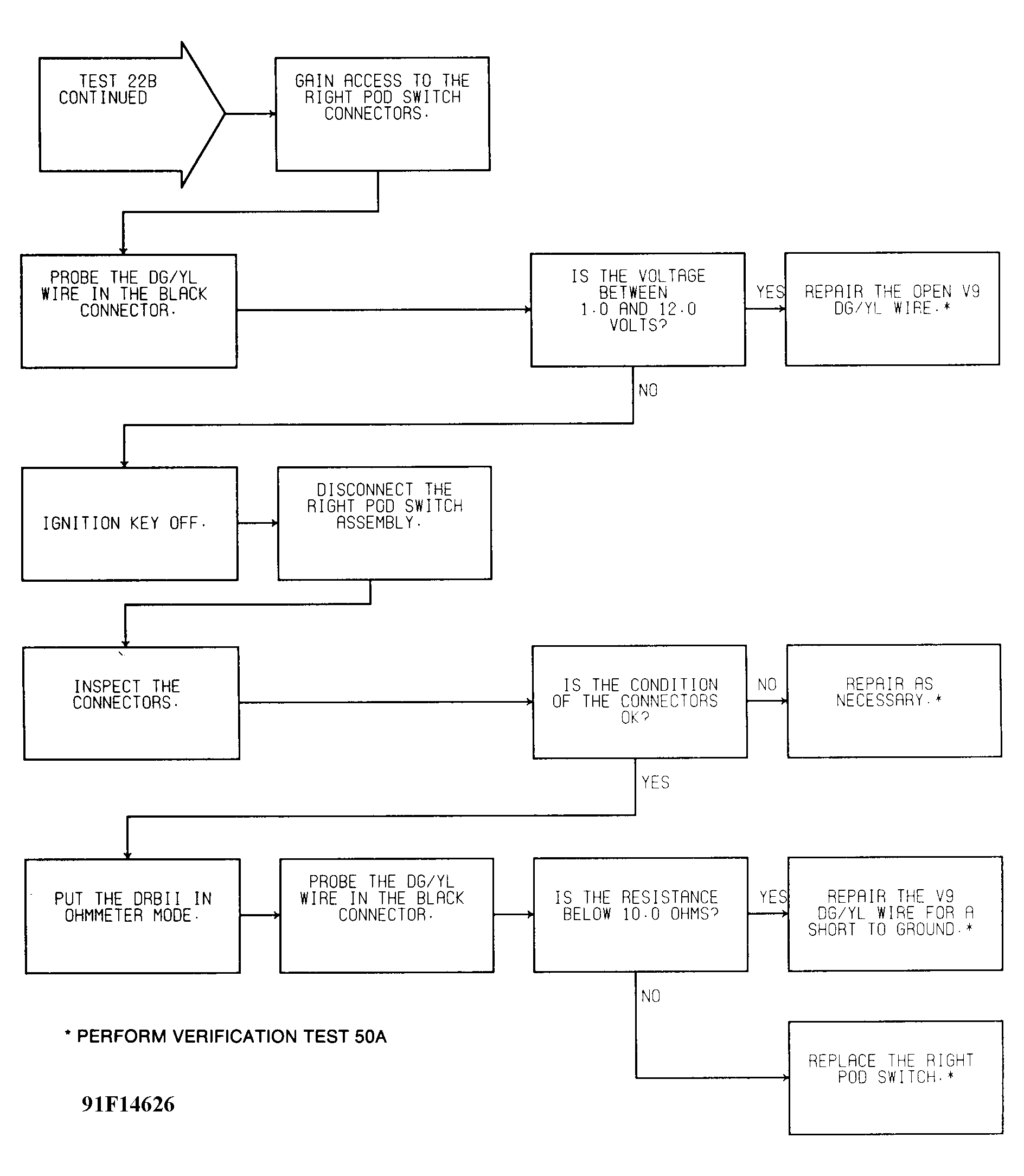

Fig 3: Test 22B Flow Chart (2 of 2) - Checking Controller & Wiper Switch
