Test 33A - Checking Left Pod Switch & For Open Ground

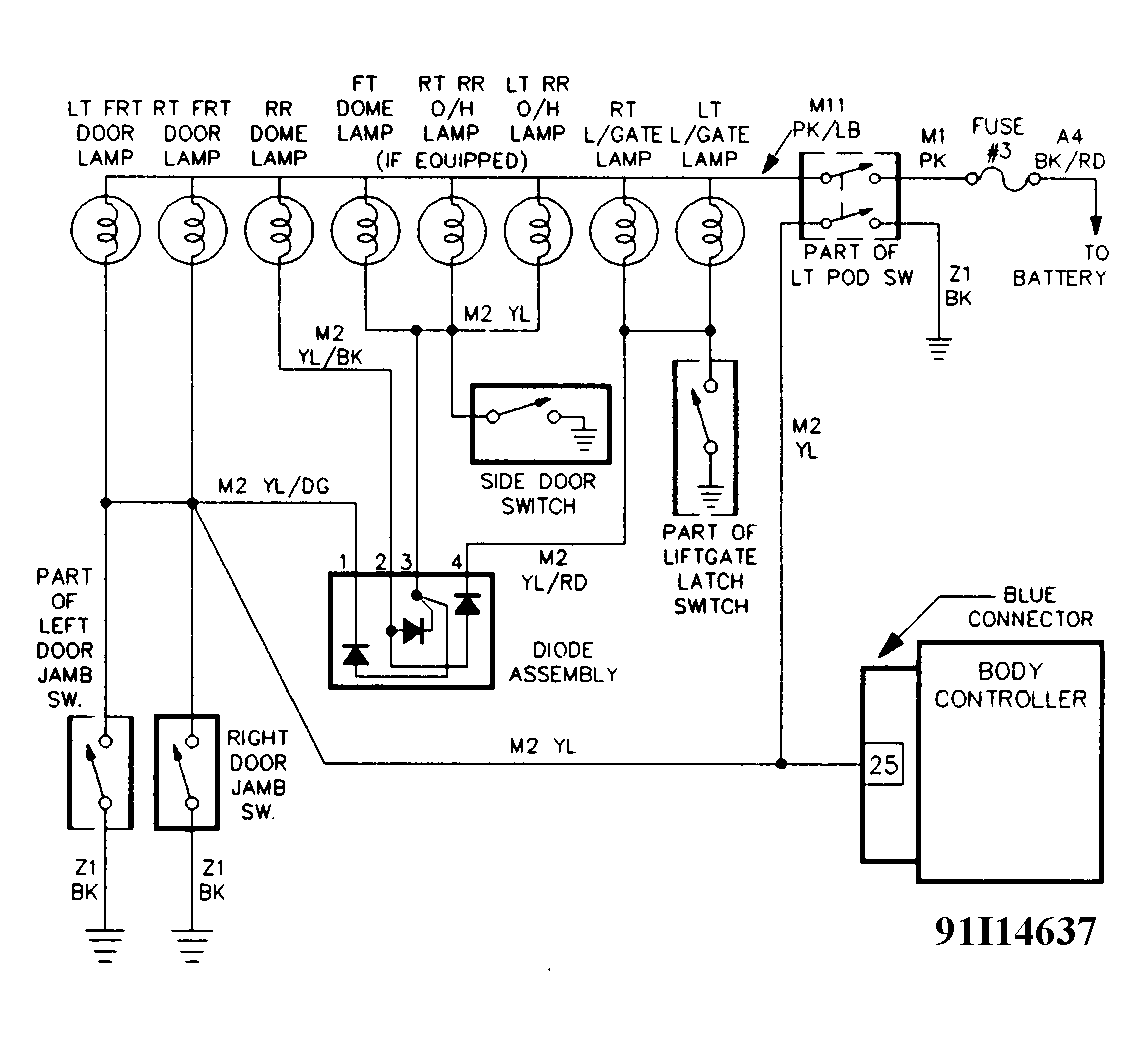

Fig 1: Test 33A Schematic - Checking Left Pod Switch & For Open Ground

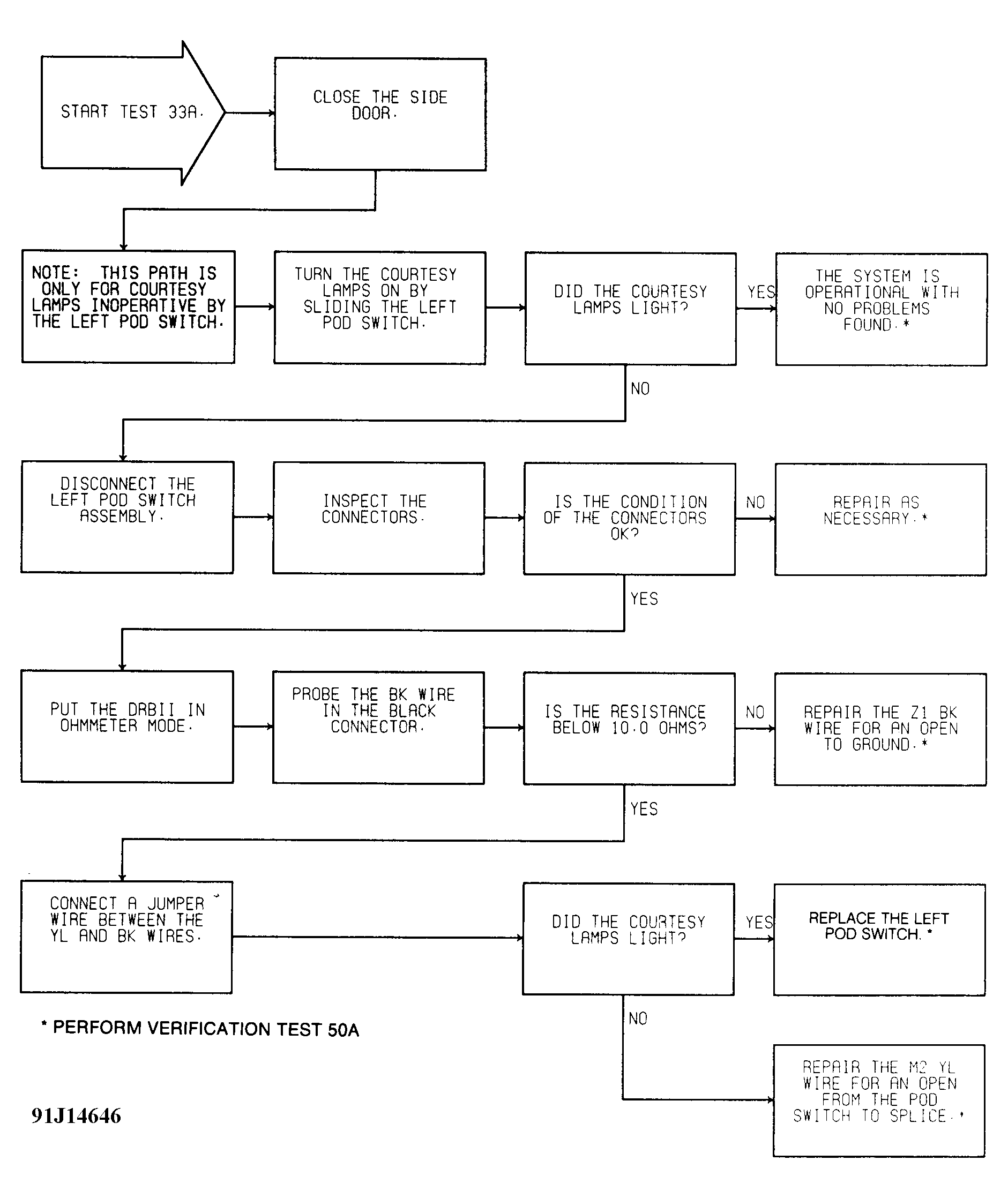

Fig 2: Test 33A Flow Chart - Checking Left Pod Switch & For Open Ground
