Engine Controls - Tests W/Codes - Body Control Computer
>>
Trouble Shooting Charts
>>
Test 49C - Checking Wiring, Controller & Cluster For Proper
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test 49C - Checking Wiring, Controller & Cluster For Proper
OPERATION

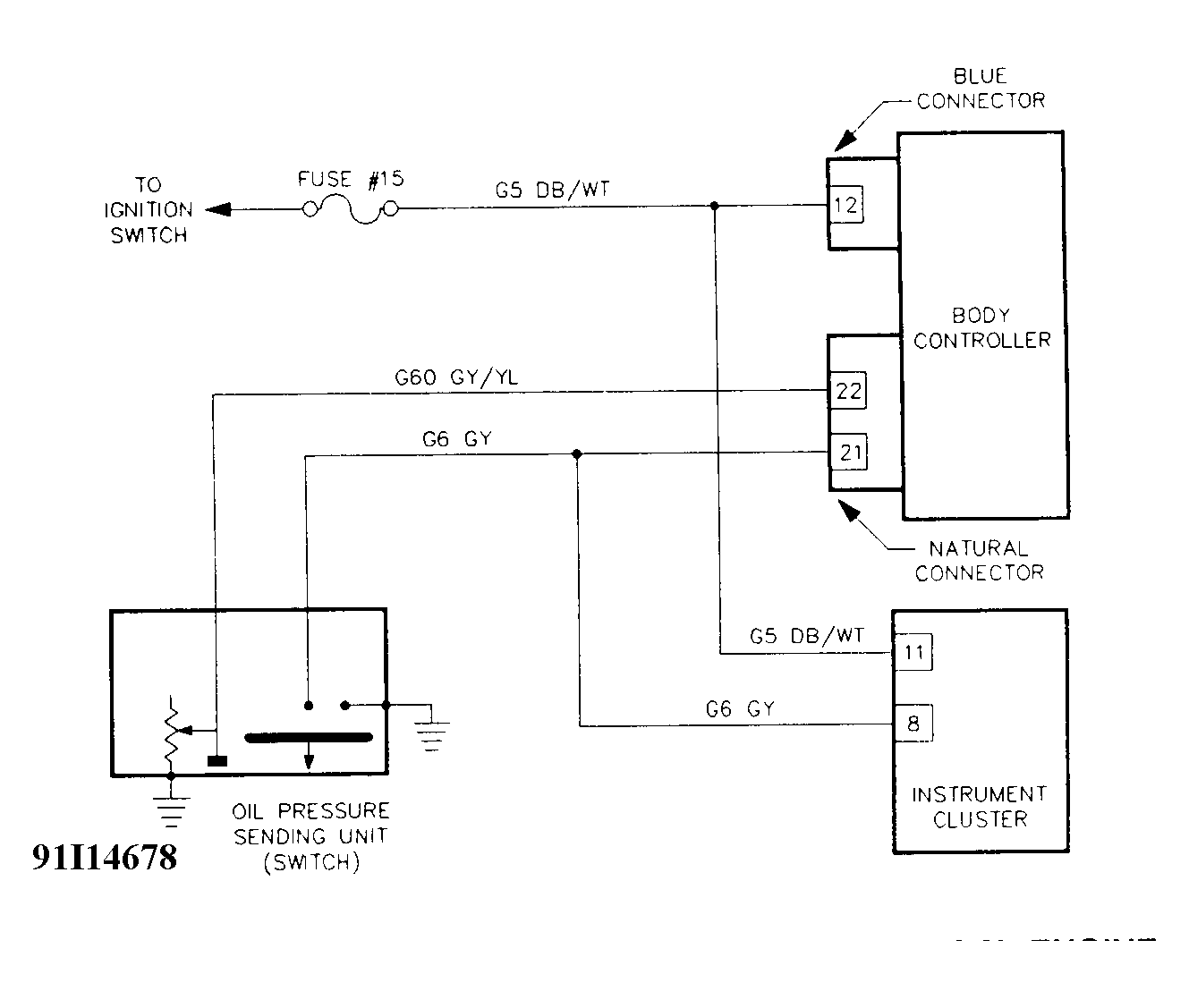

Fig 1: Test 49C Schematic - Checking Wiring, Controller & Cluster for Proper Operation

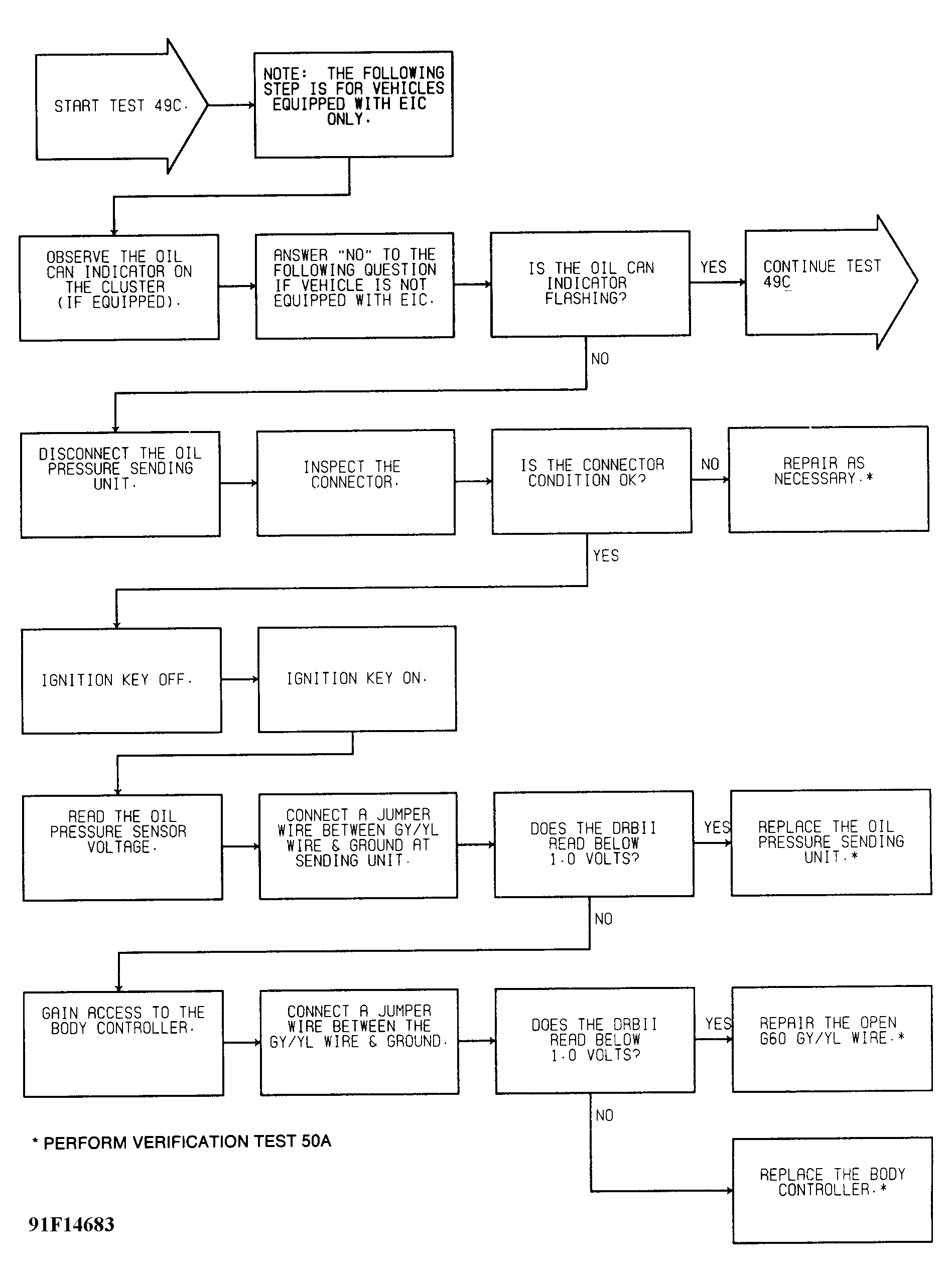

Fig 2: Test 49C Flow Chart (1 of 2) - Checking Wiring, Controller & Cluster for Proper Operation

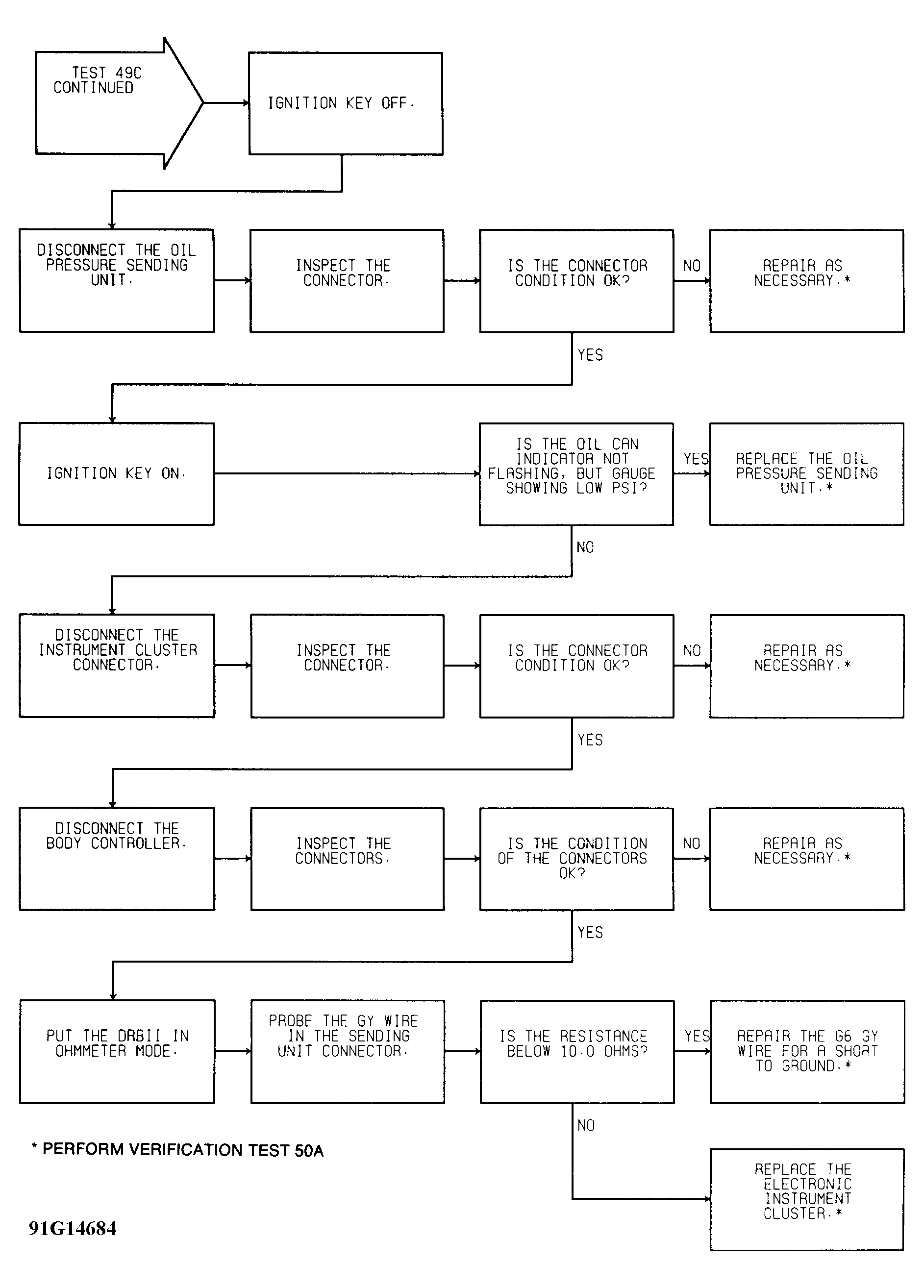

Fig 3: Test 49C Flow Chart (2 of 2) - Checking Wiring, Controller & Cluster for Proper Operation
