Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Circuit Breakers (Power Windows) | In fuse block. See Figure . |
| Fuse Block | In glove box. |
| Power Distribution Center | In engine bay, forward of left strut tower. See Figure . |

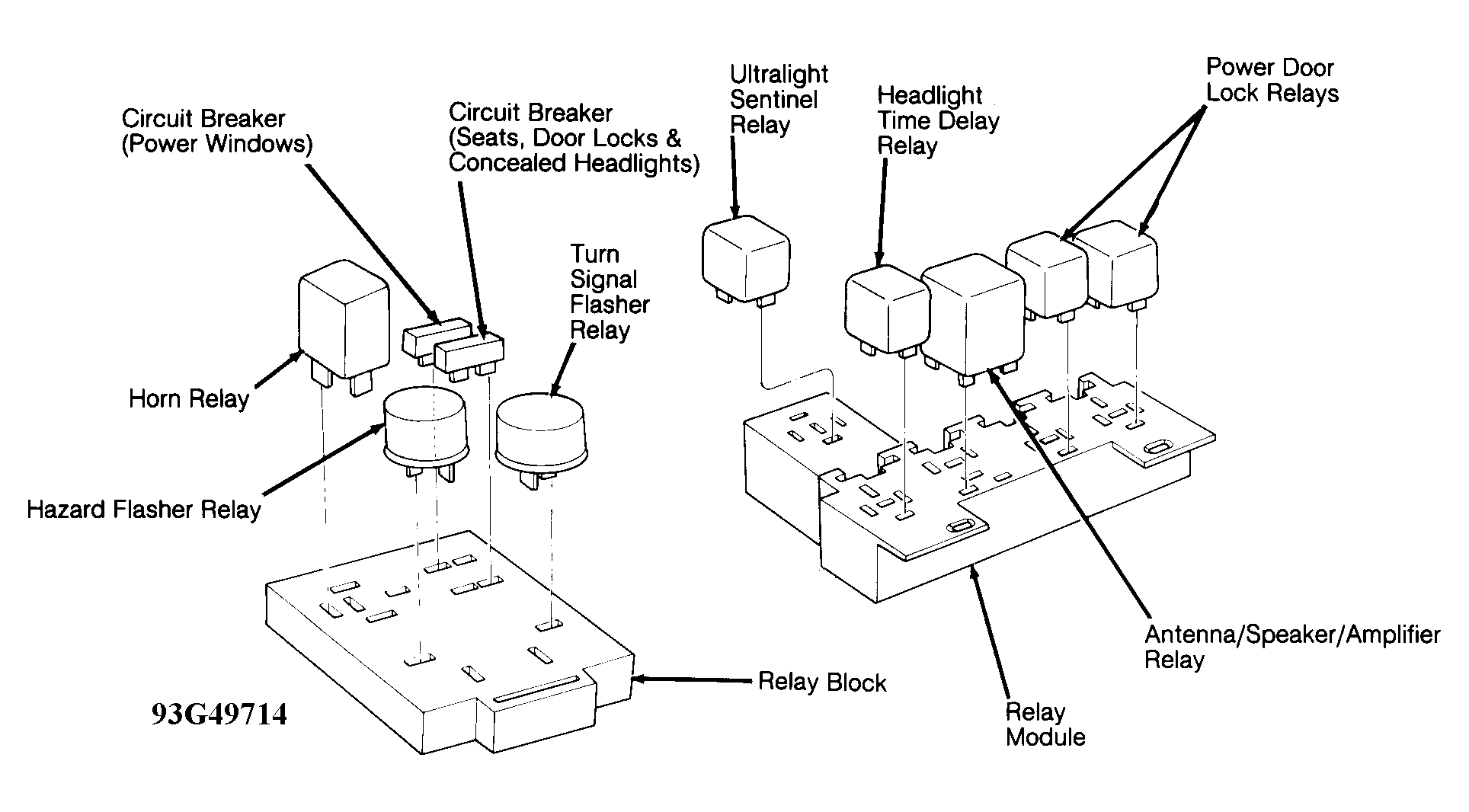

| Relay Block | Behind right side of dash, above fuse block. See Figure . |
| Relay Module | Behind right side of dash, above fuse block. See Figure . |
