Connector Views

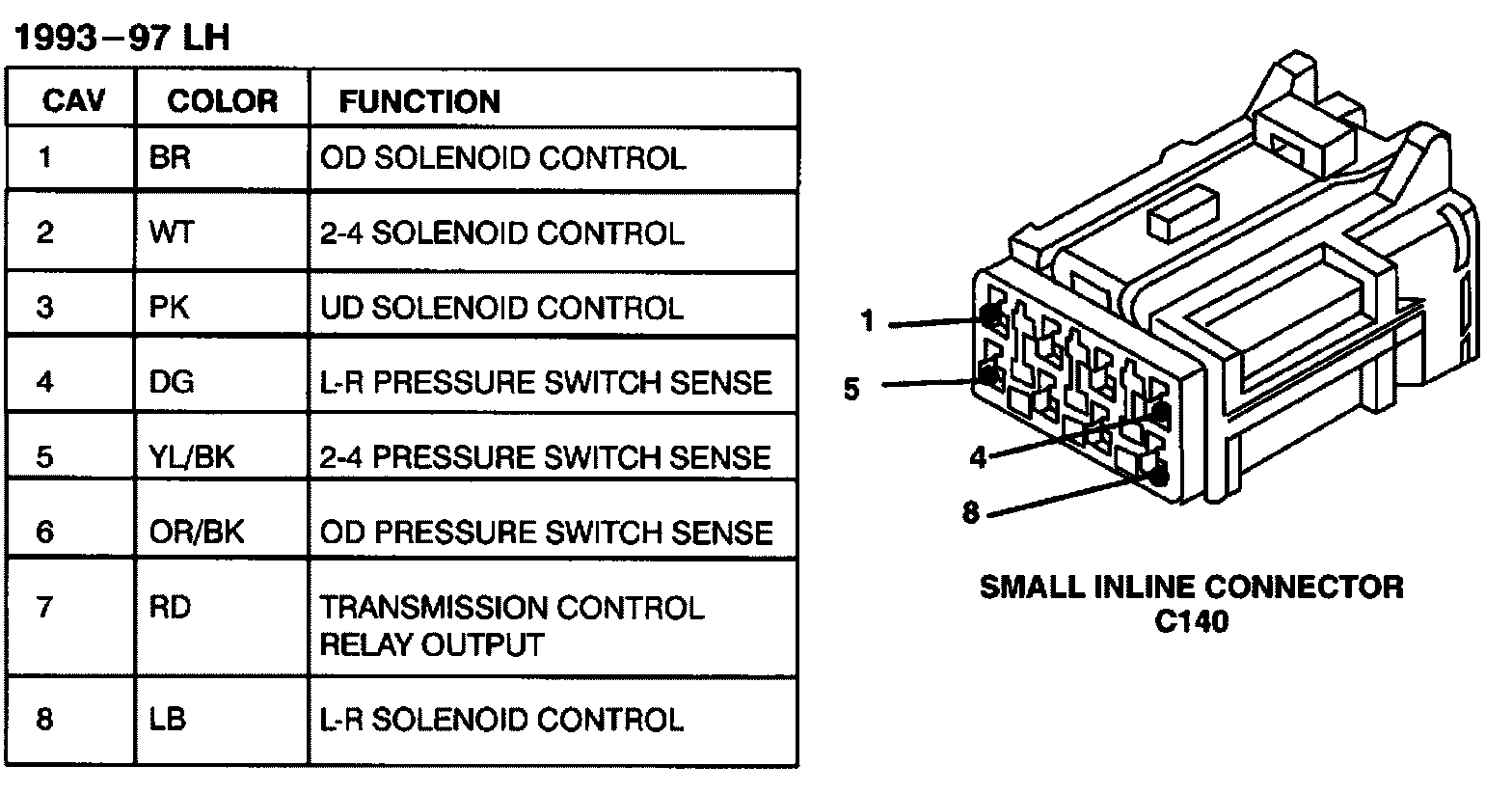

In-line 8 Way (Harness Side):

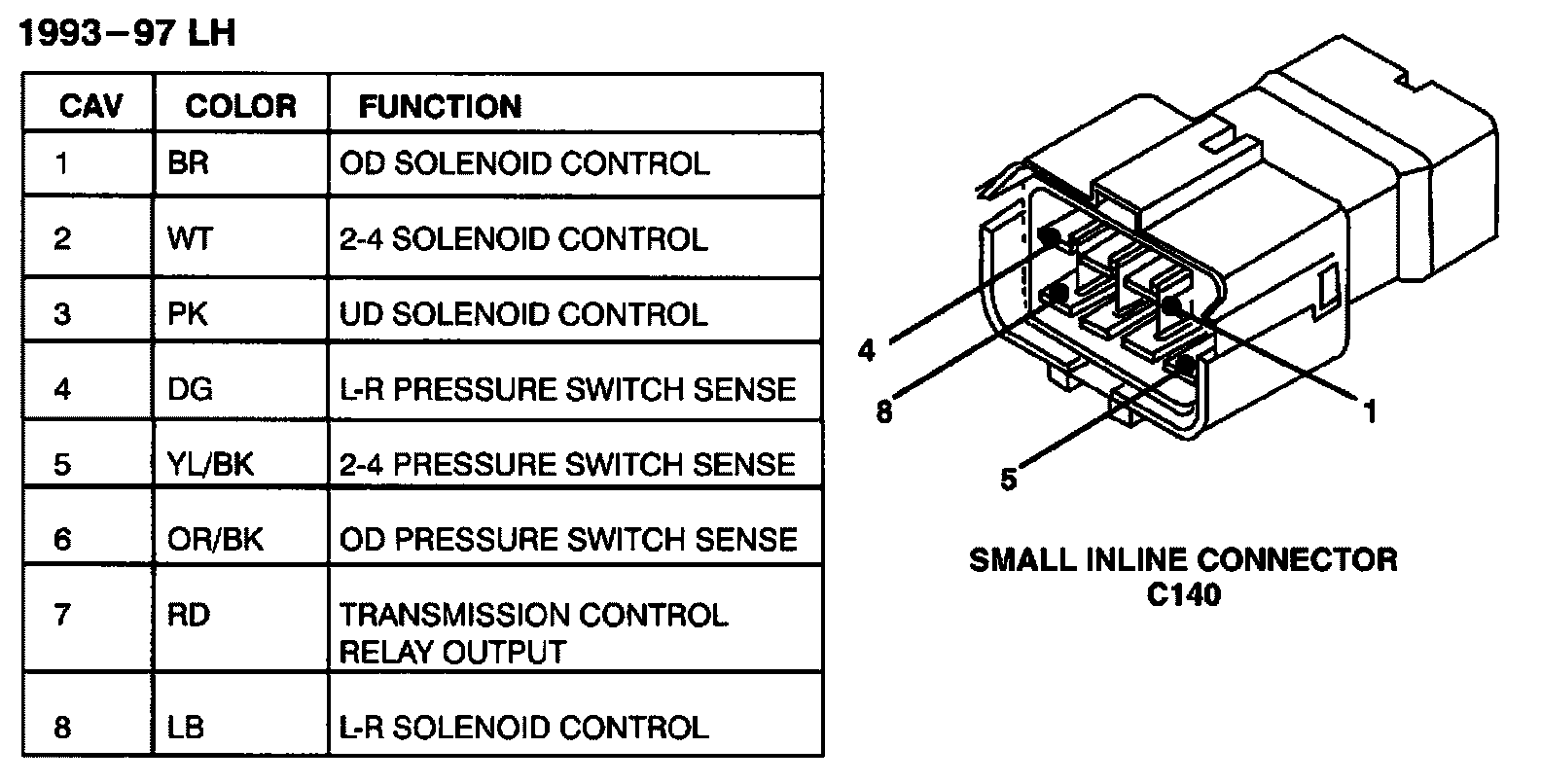

In-line 8 Way (Transmission Side):

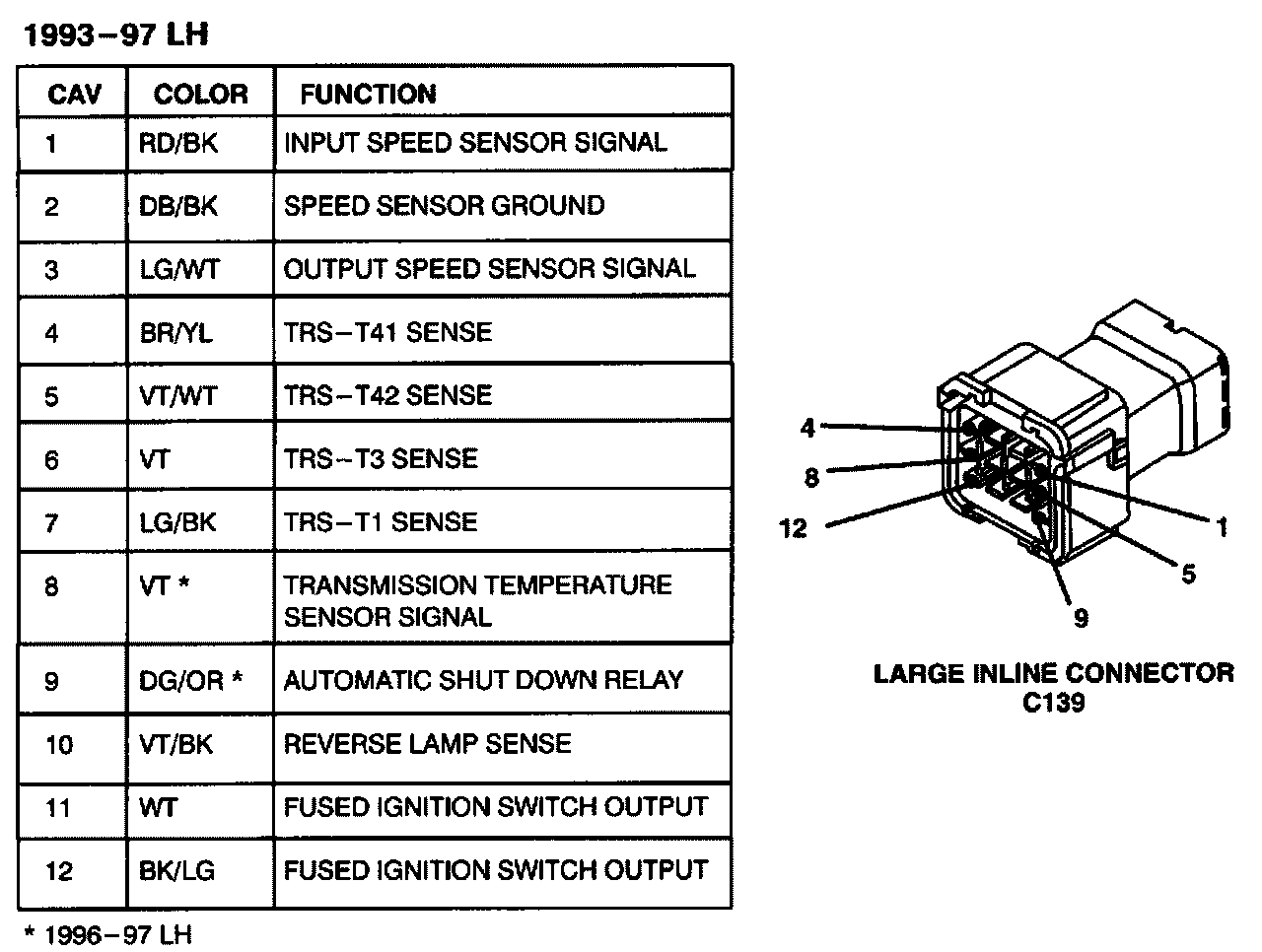

In-line 12 Way (Harness Side):

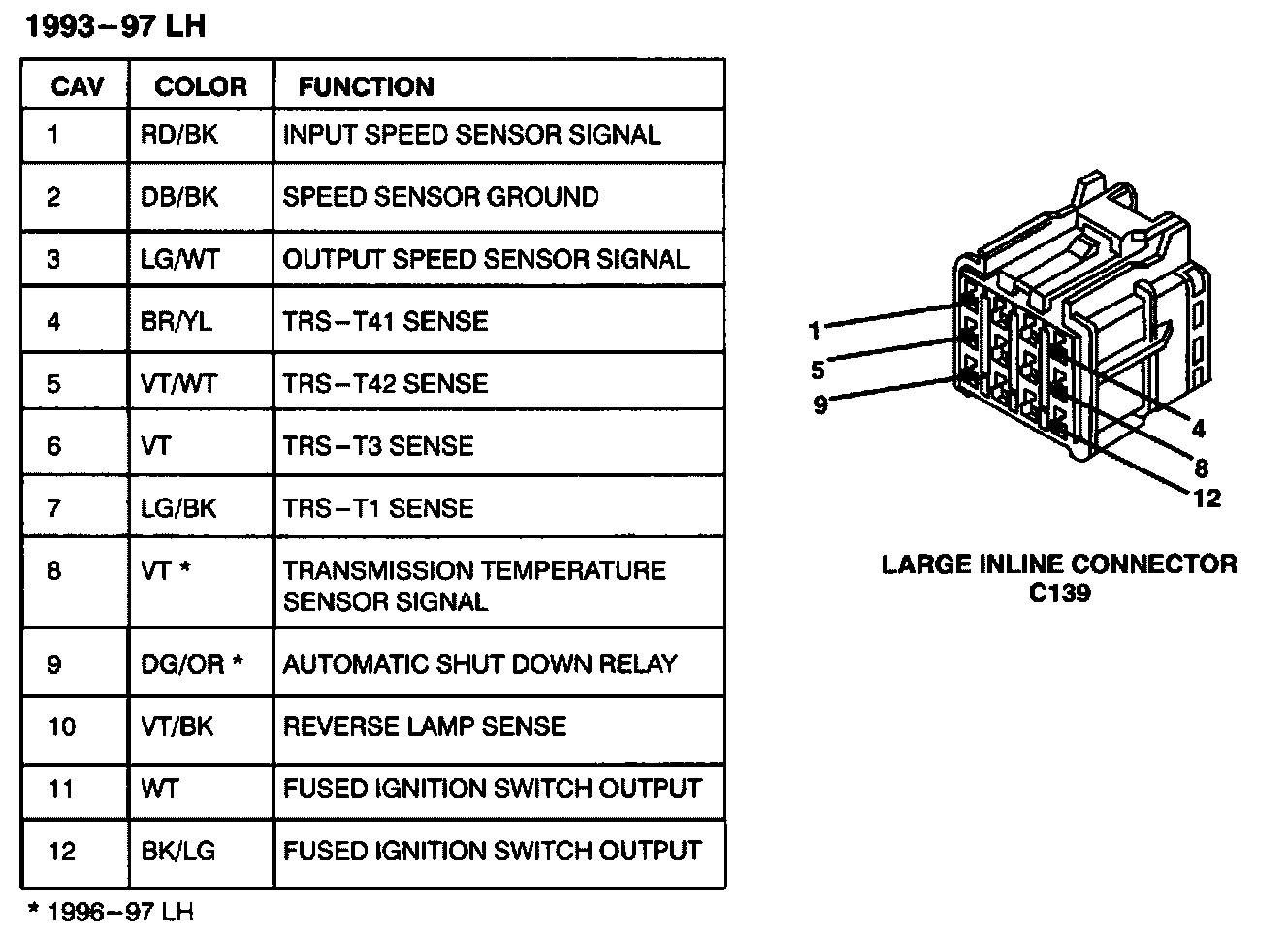

In-Line 12 Way (Transmission Side):
