Electrical Schematics

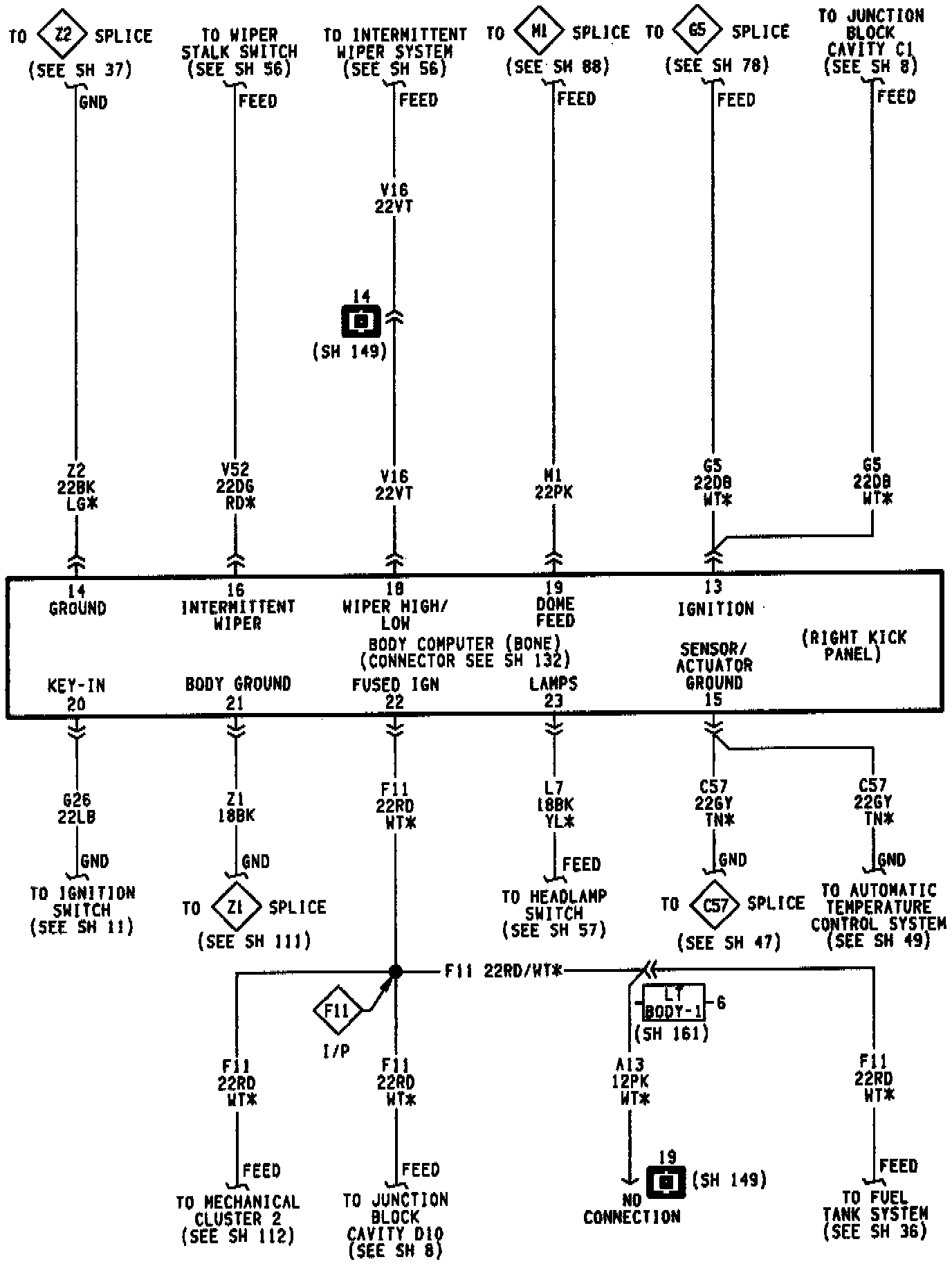

Body Computer Connector (BONE):

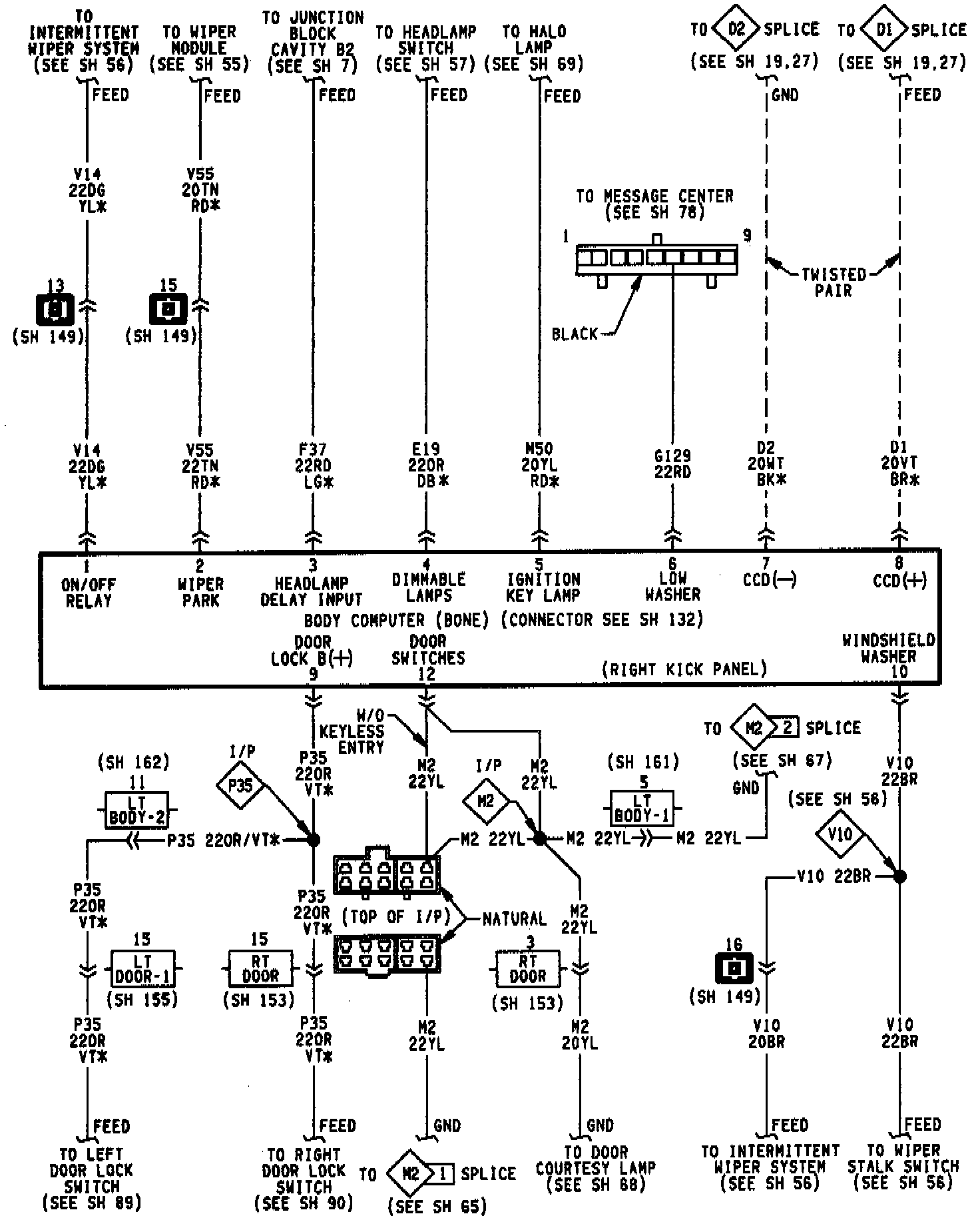

Body Computer Connector (BONE):

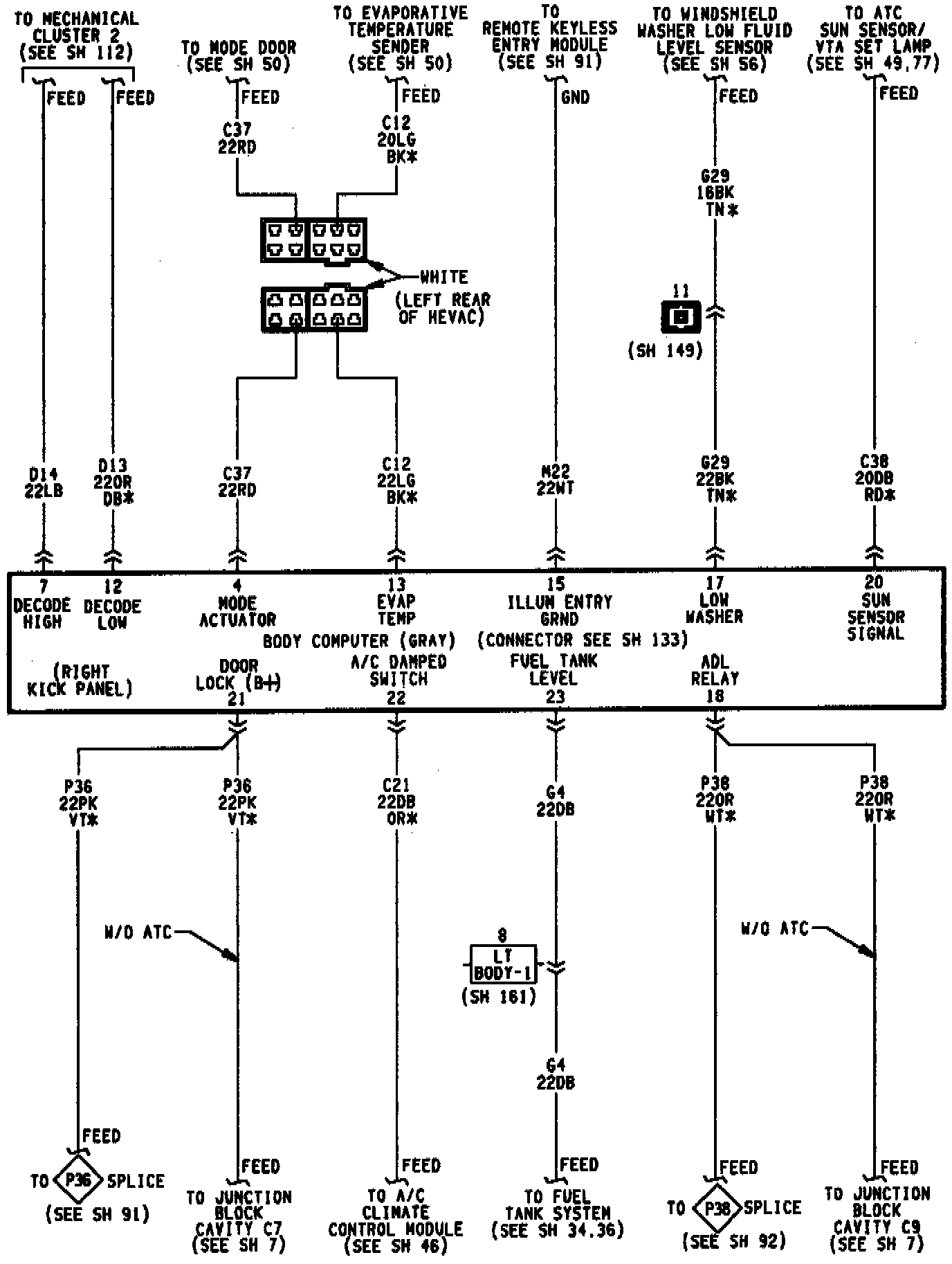

BCM Grey Connector Part 1 Of 2:

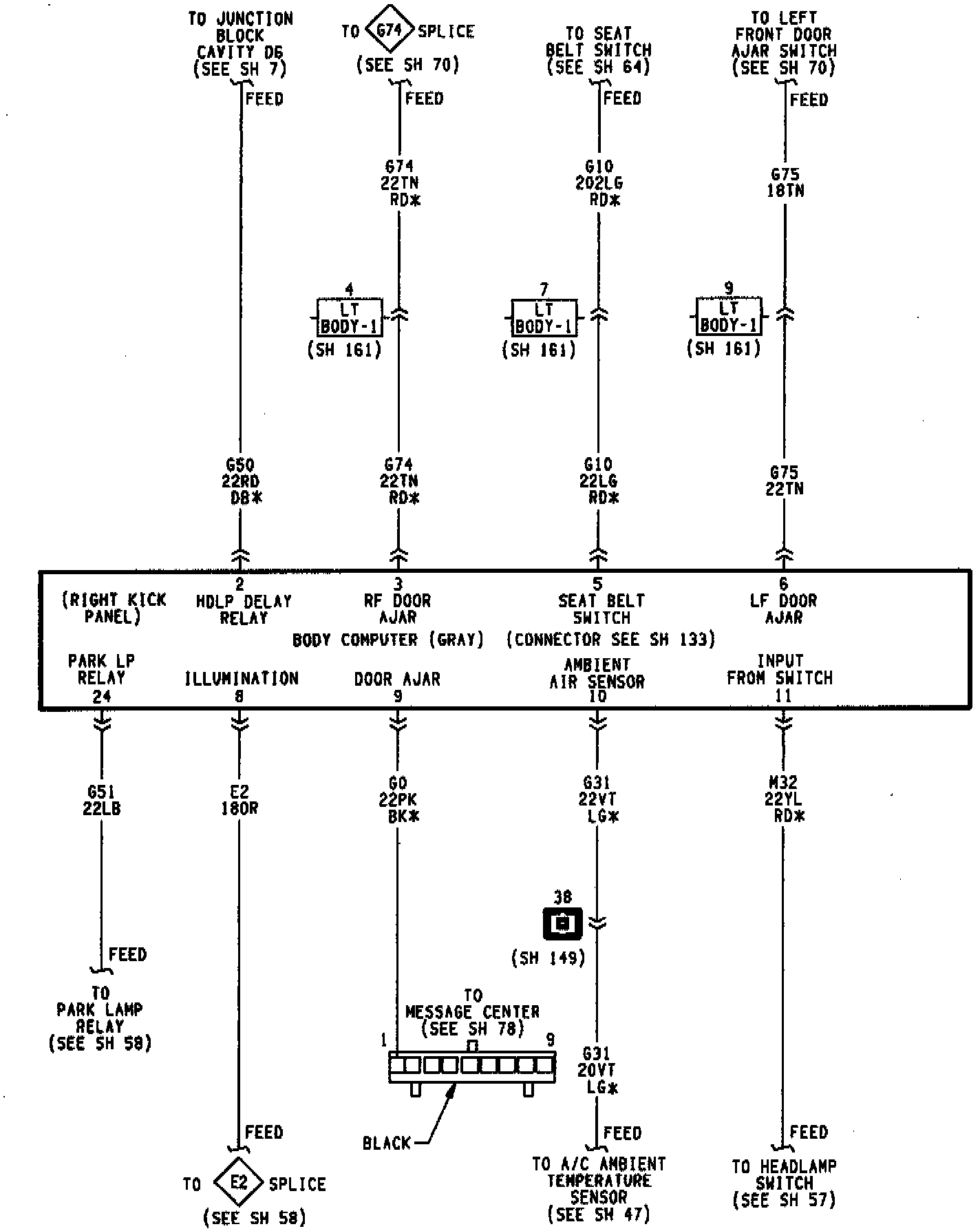

BCM Grey Connector Part 2 Of 2:

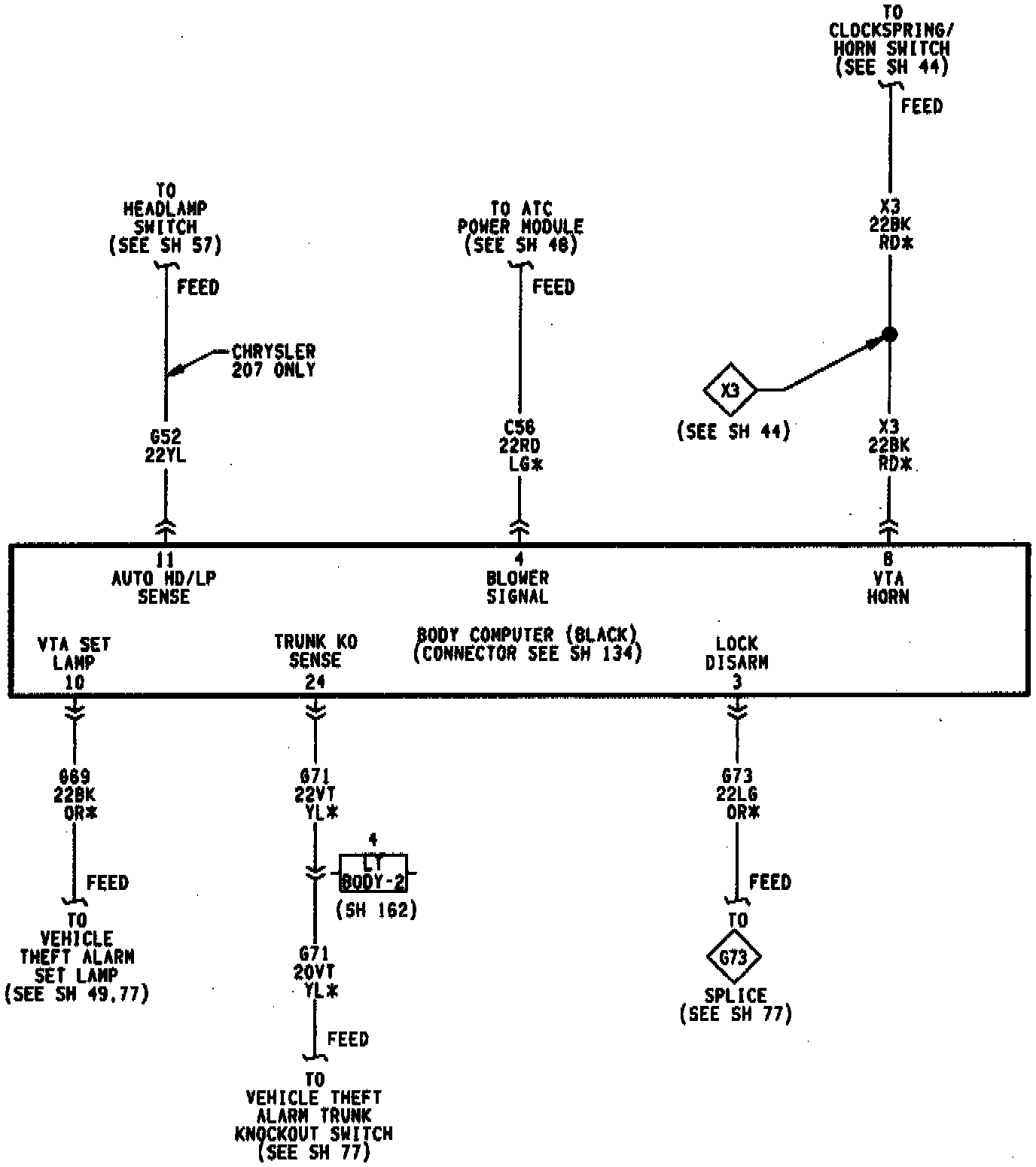

BCM Black Connector-from Connector End:

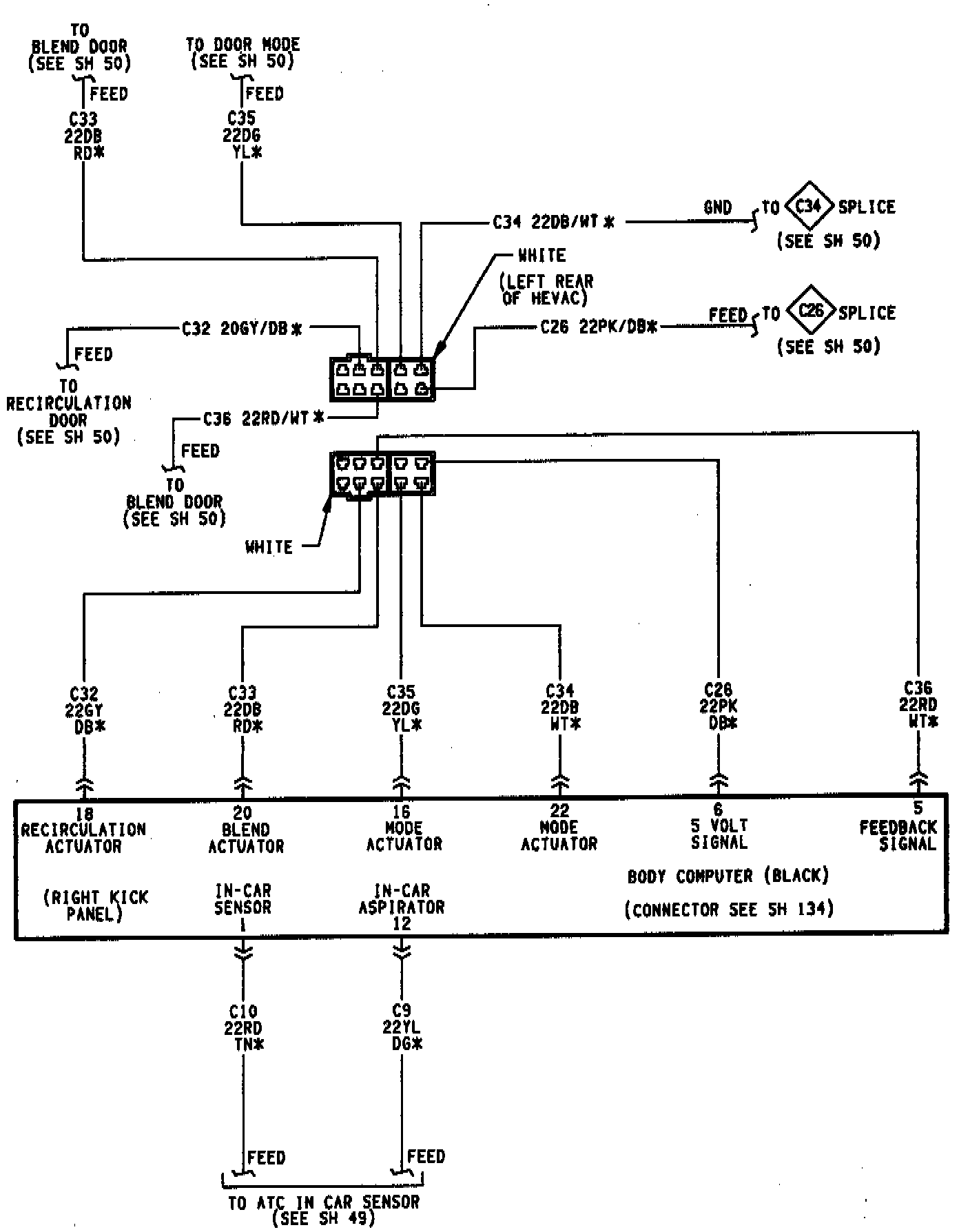

BCM Black Connector-from BCM End:
