Without Infinity System

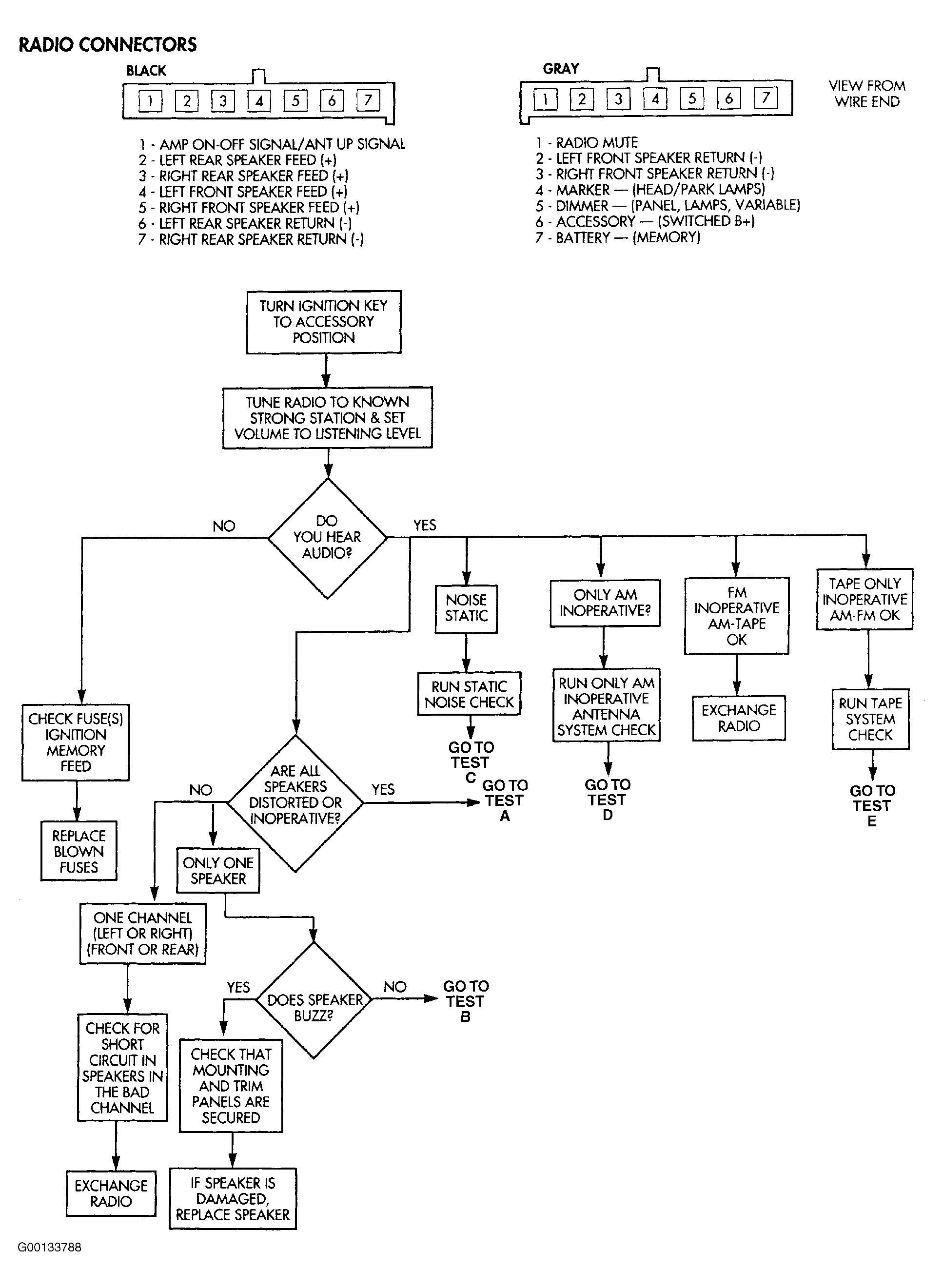

Fig 1: Audio Diagnostic Flow Chart (Without Infinity)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
