Power Mirror Switch Test
- Remove door panel. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Remove power mirror switch from its mounting position. Disconnect switch from wiring harness.

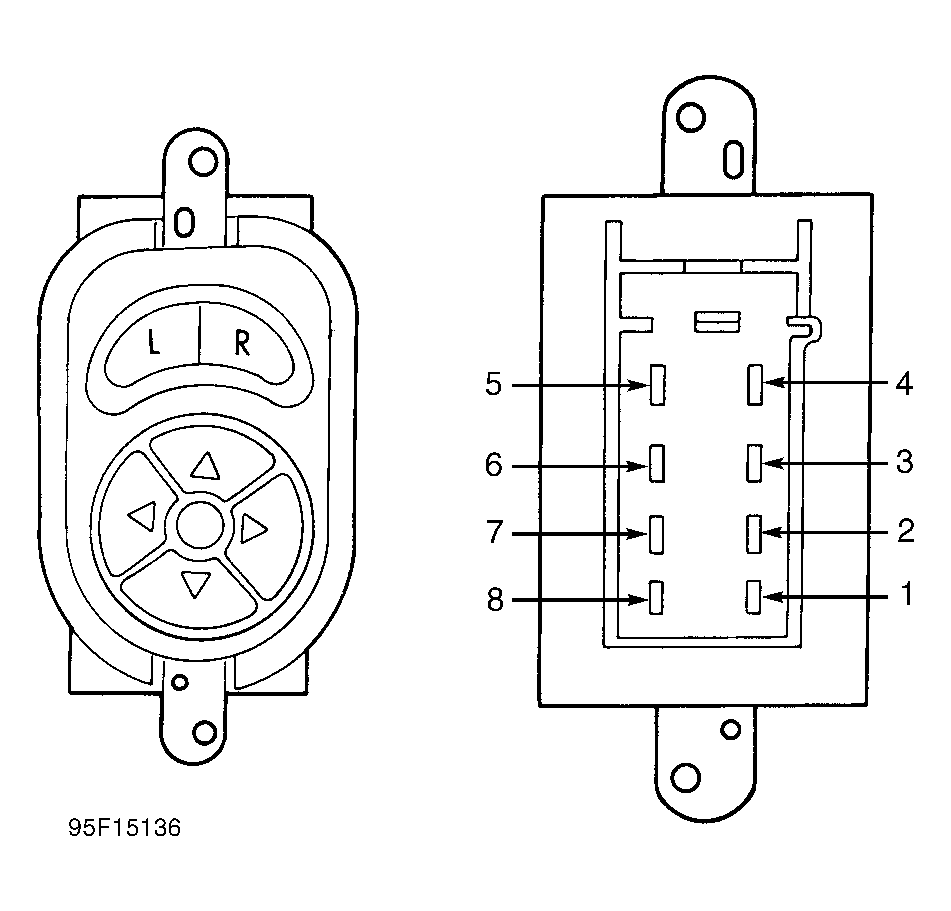

- Place mirror selector in appropriate position. See POWER MIRROR SWITCH CONTINUITY TEST table. Check for continuity between specified switch pins with mirror in position indicated. See Figure . If continuity is not as specified, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Mirror Angle | Continuity Between Pins No. | |
|---|---|---|
| Mirror Selector In LEFT Position | ||
| Up | 1 & 8; 2 & 5 | |
| Down | 1 & 5; 2 & 8 | |
| Left | 1 & 7; 2 & 6 | |
| Right | 1 & 6; 2 & 7 | |
| Mirror Selector In RIGHT Position | ||
| Up | 1 & 8; 2 & 4 | |
| Down | 1 & 4; 2 & 8 | |
| Left | 1 & 7; 2 & 3 | |
| Right | 1 & 3; 2 & 7 | |
