Window Switch Test

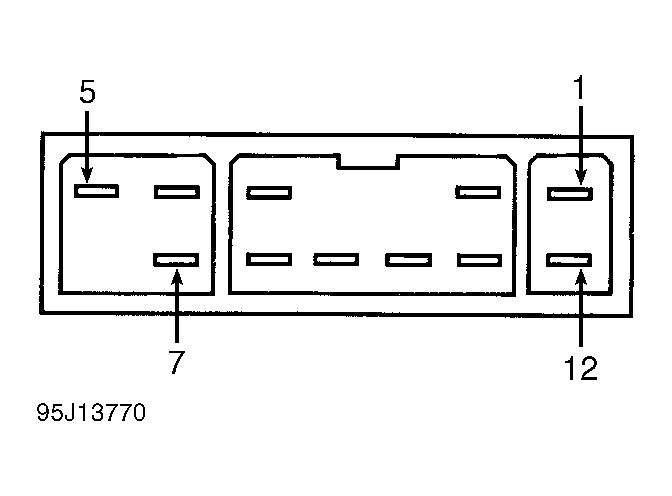

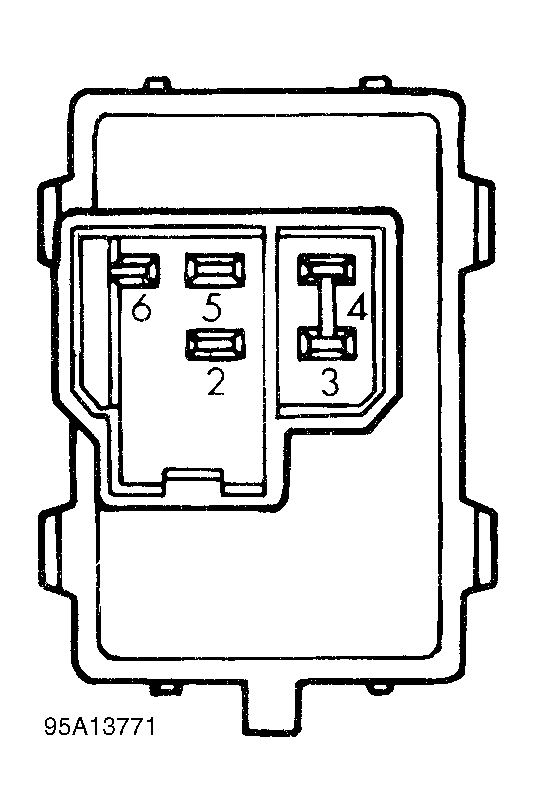

Remove power window switch. Using an ohmmeter, check continuity between appropriate switch terminals. See appropriate WINDOW SWITCH CONTINUITY table. See Fig 1 and Fig 2 . If continuity is not as specified, replace power window switch.
WINDOW SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Off | 2 & 10; 3 & 10; 4 & 10; 7 & 10; 8 & 10; 9 & 10; 10 & 11; 10 & 12 | |
| Up | ||
| Left Front | 5 & 7; 8 & 10 | |
| Right Front | 5 & 12; 10 & 11 | |
| Left Rear | 3 & 10; 4 & 5 | |
| Right Rear | 2 & 5; 9 & 10 | |
| Down | ||
| Left Front | 5 & 8; 7 & 10 | |
| Right Front | 5 & 11; 10 & 12 | |
| Left Rear | 3 & 5; 4 & 10 | |
| Right Rear | 2 & 10; 5 & 9 | |
| Window Lock |
1 & 5 | |
WINDOW SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Off | 2 & 5; 3 & 4 |
| Up | 3 & 4; 5 & 6 |
| Down | 2 & 5; 3 & 6 |
