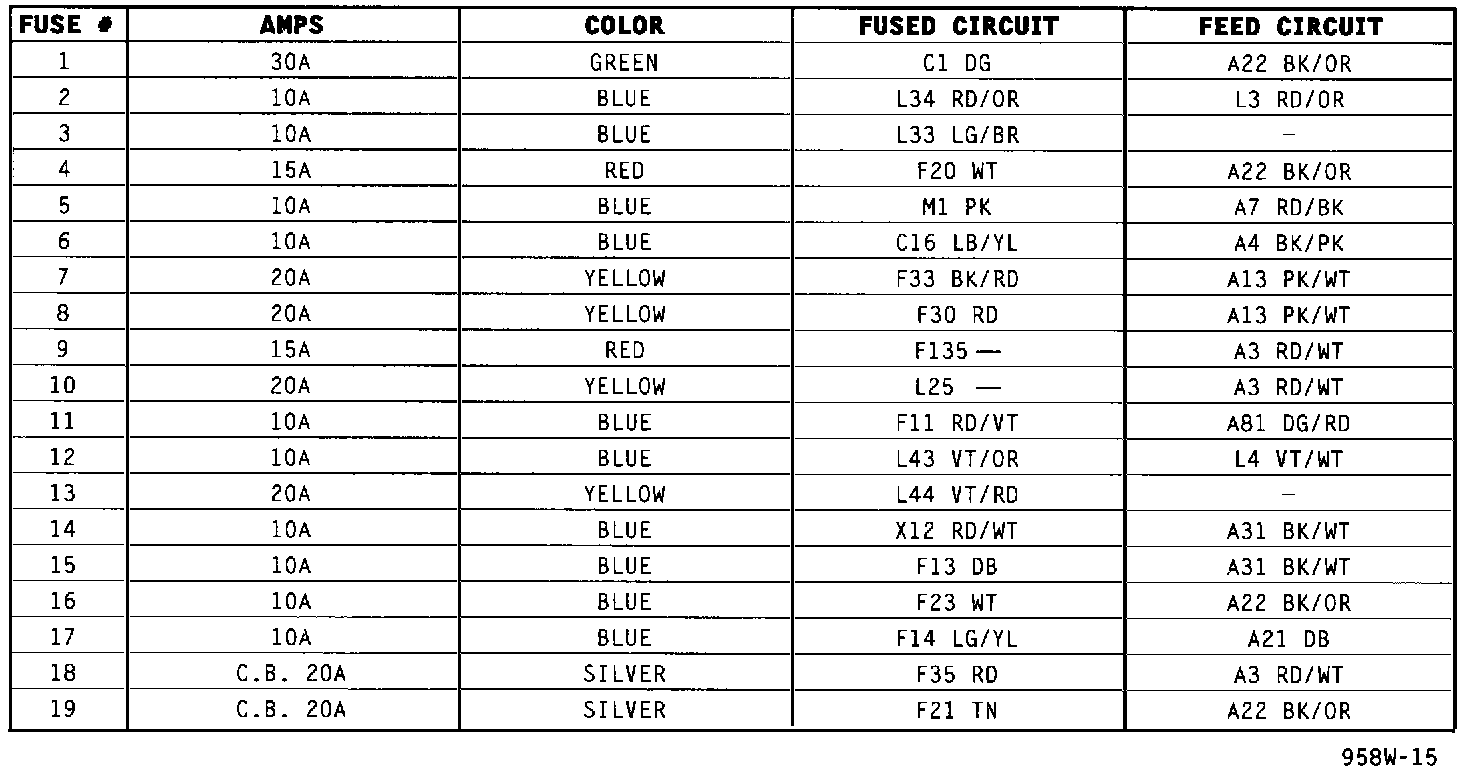

Fuse Block

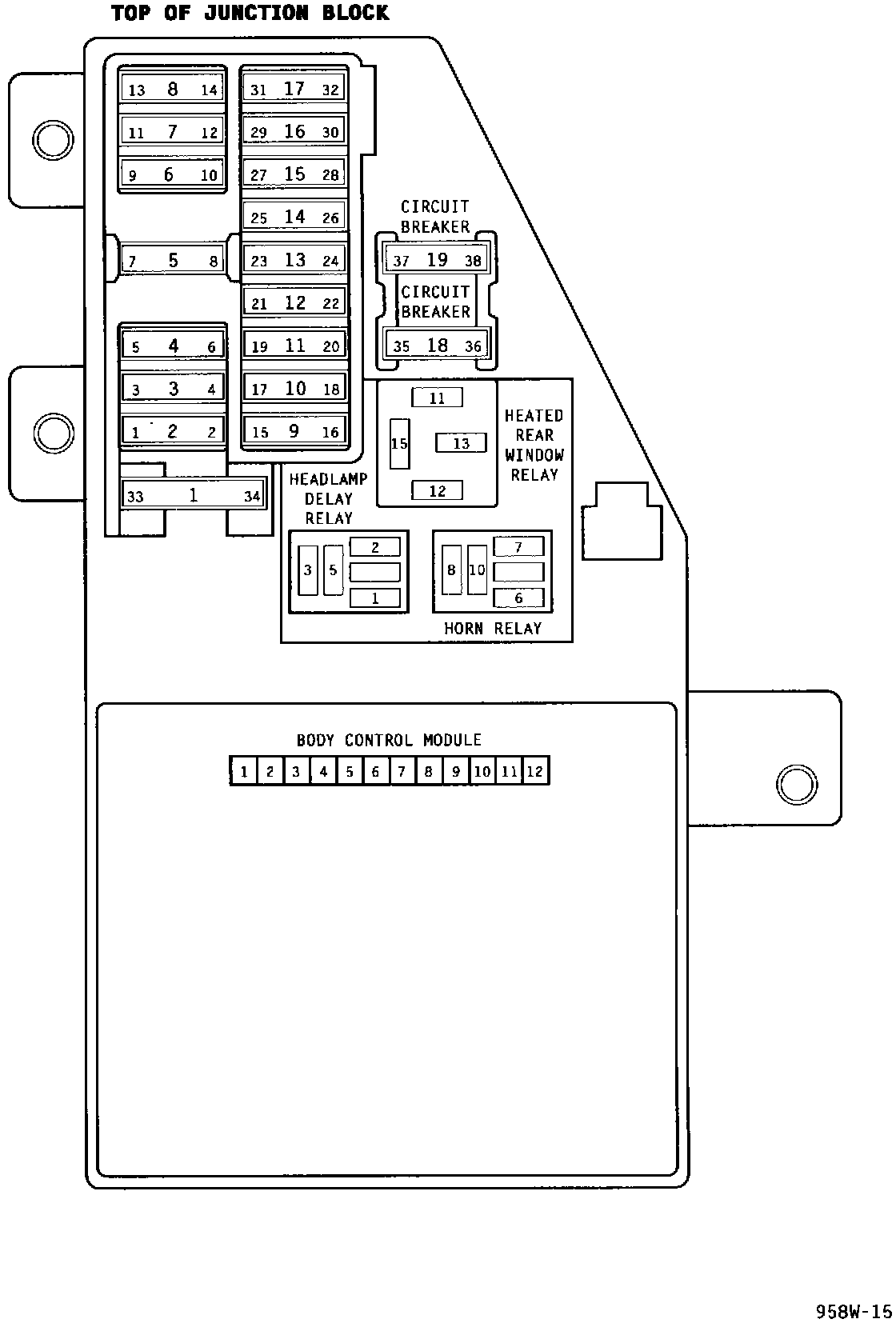

Top Of Junction Block (Part 1 Of 2):
Top Of Junction Block (Part 2 Of 2):
NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
