Connecting Rod Bearing


Fig. 34 Balance Shaft Gear Alignment:

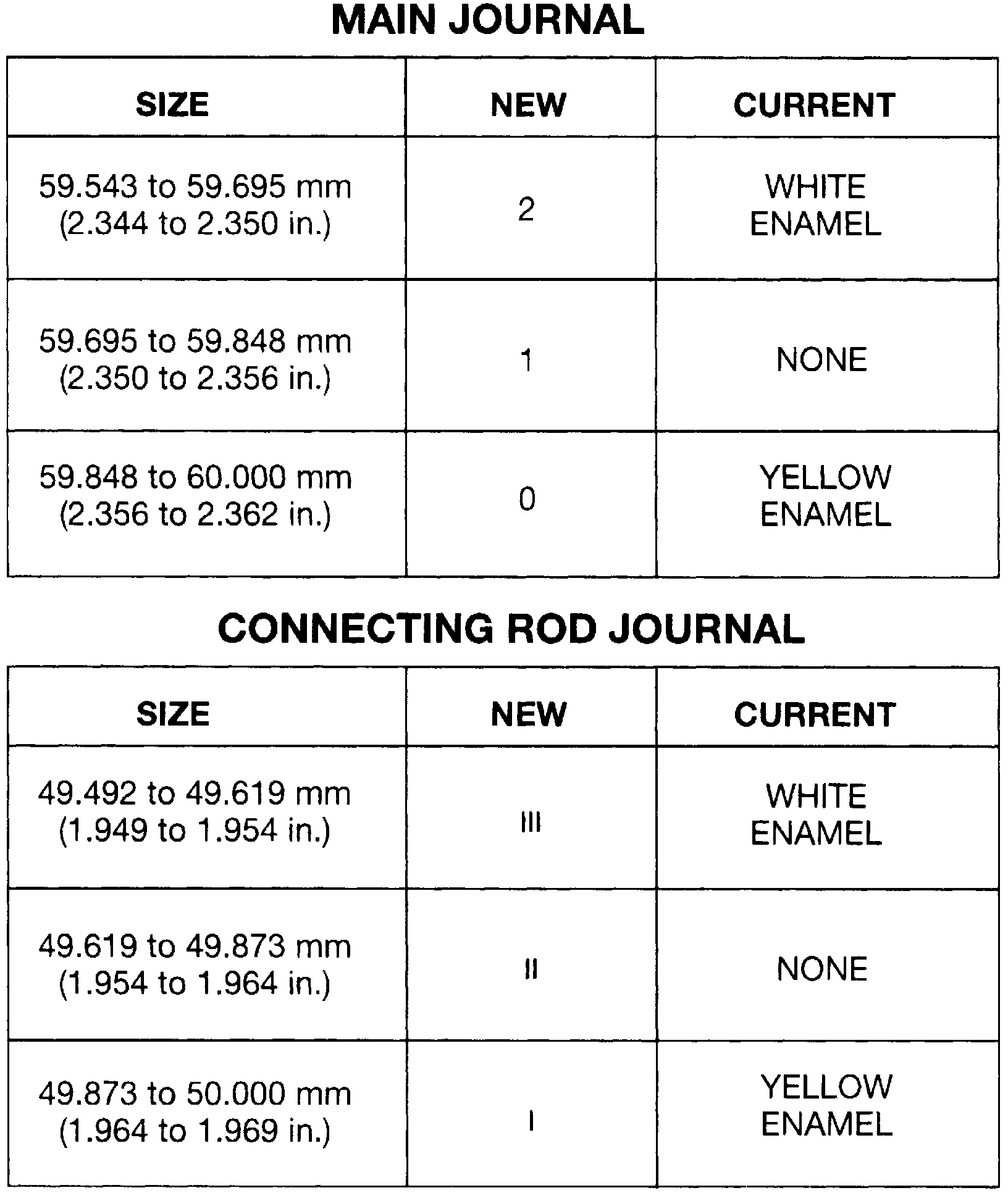

Service replacement parts carry identification marks, but factory parts are unmarked. The crankshaft journal markings may aid in the selection of bearings.
