Door Lock Power Relay 2 Continuity Check

Check for continuity between terminals. See Fig 1 .

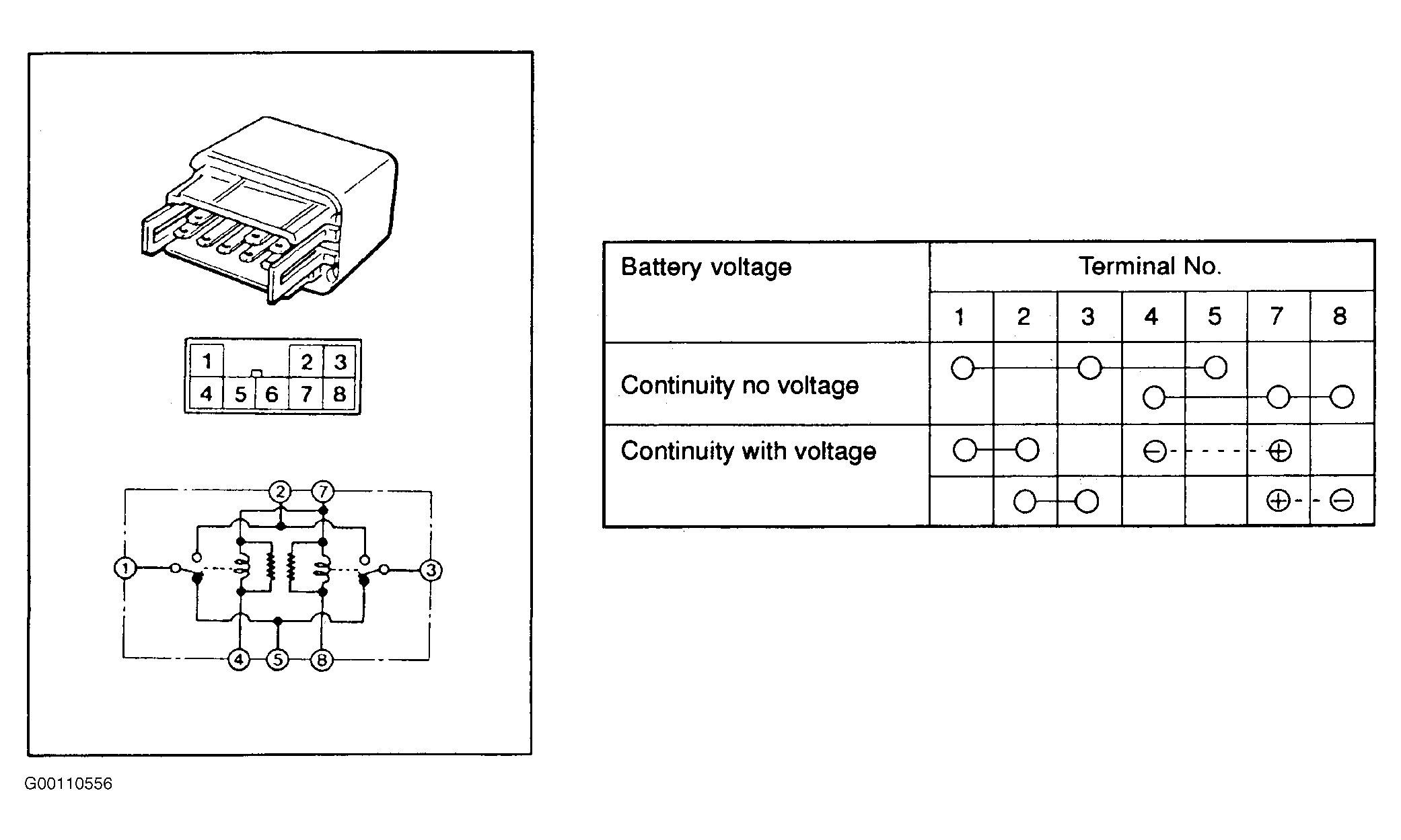

Fig 1: Door Lock Power Relay 2 Continuity Test
G00110556Courtesy of CHRYSLER CORP.
