Disassembly and Reassembly

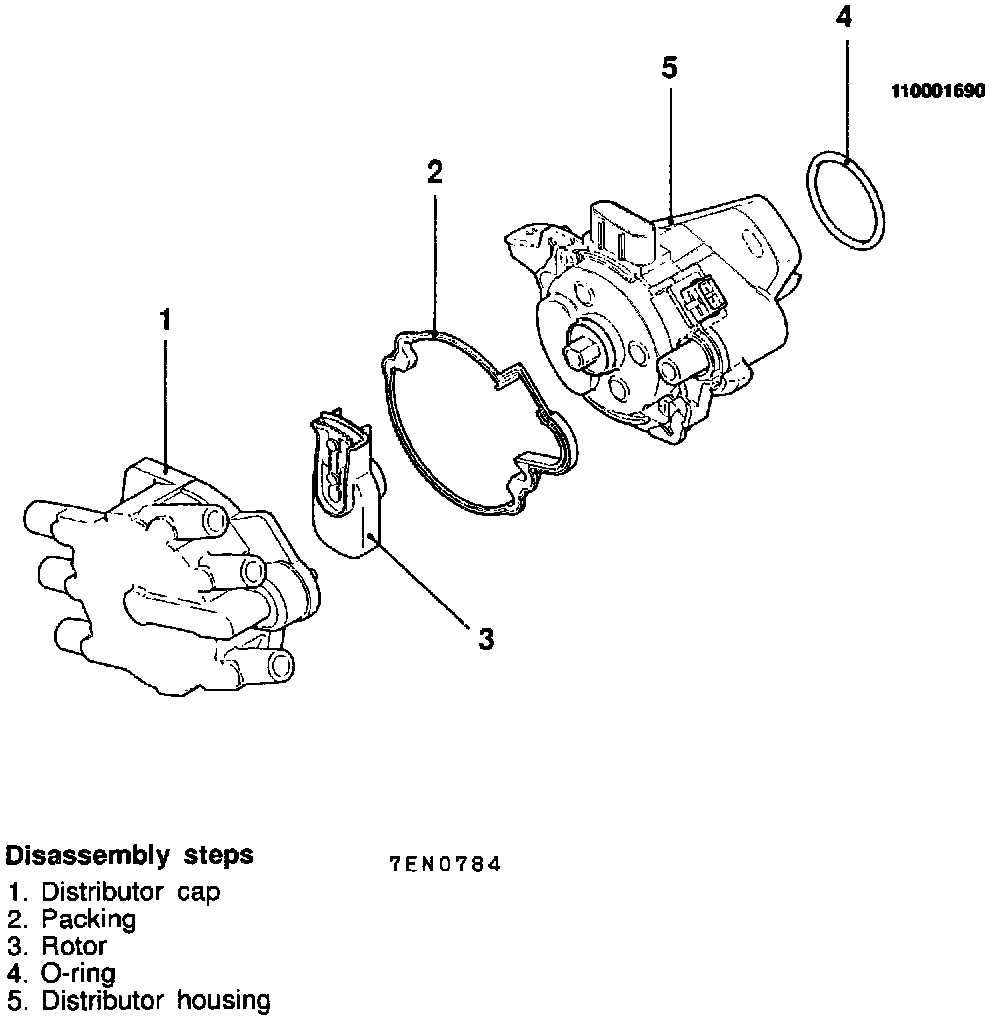

Distributor - Disassembly And Reassembly:





REMOVE
1. Distributor cap.
2. Packing.
3. Rotor.
4. 0-ring.
5. Distributor housing.

INSTALL
1. Distributor housing.
2. 0-ring.
3. Rotor.
4. Packing.
5. Distributor cap.
