Heater Control Disassembly and Reassembly

Control Assembly Disassembly & Assembly:

Disassembly Service Point:

DISASSEMBLY

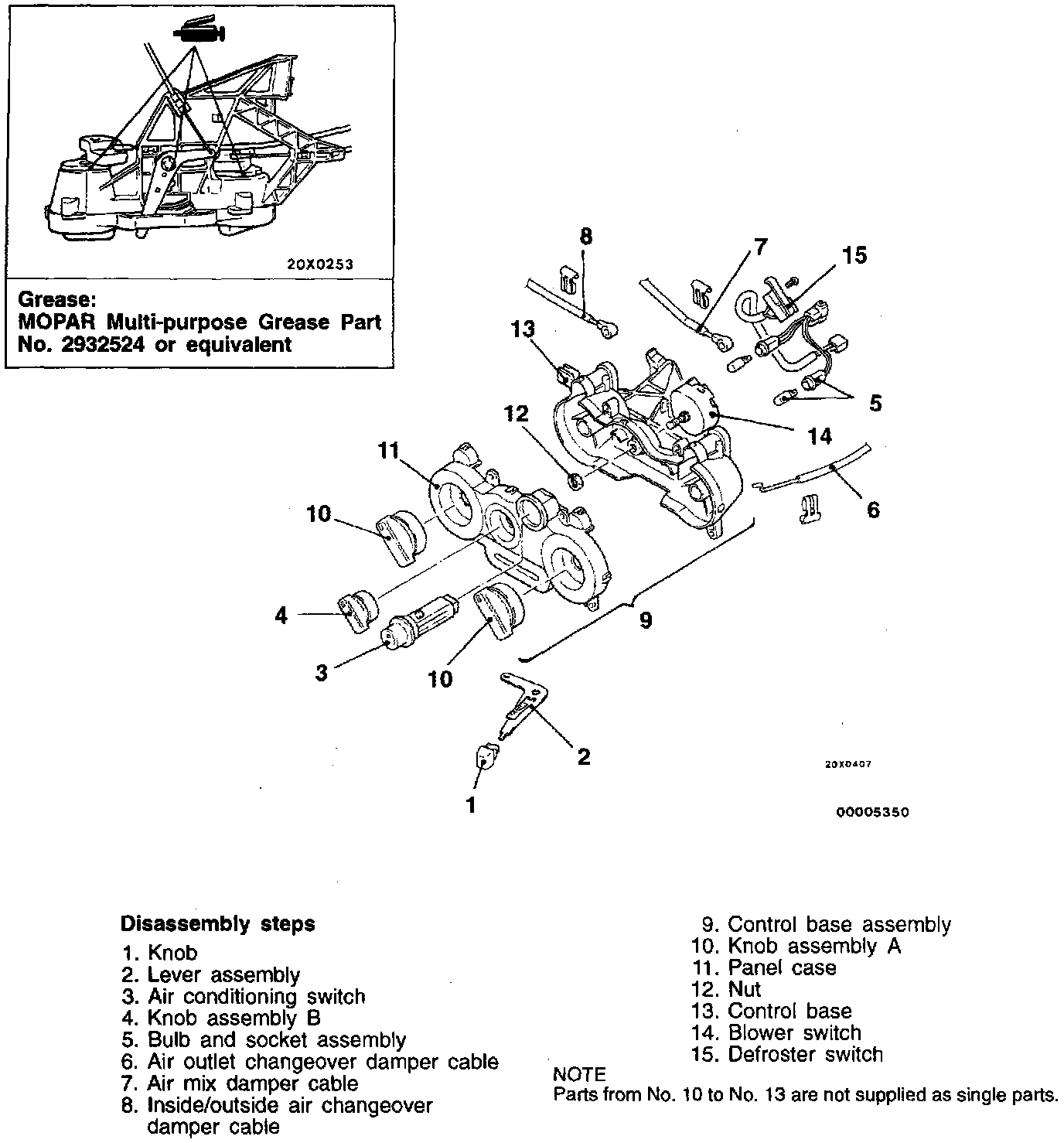

For disassembly follow steps in image noting the following:
Steps 6,7 & 8
AIR OUTLET CHANGEOVER DAMPER CABLE/AIR MIXING DAMPER CABLE/INSIDE/OUTSIDE AIR CHANGEOVER DAMPER CABLE REMOVAL
- Insert a flat-tipped screwdriver to disengage the claws, and then remove the cables.
