Knock Sensor: Service and Repair

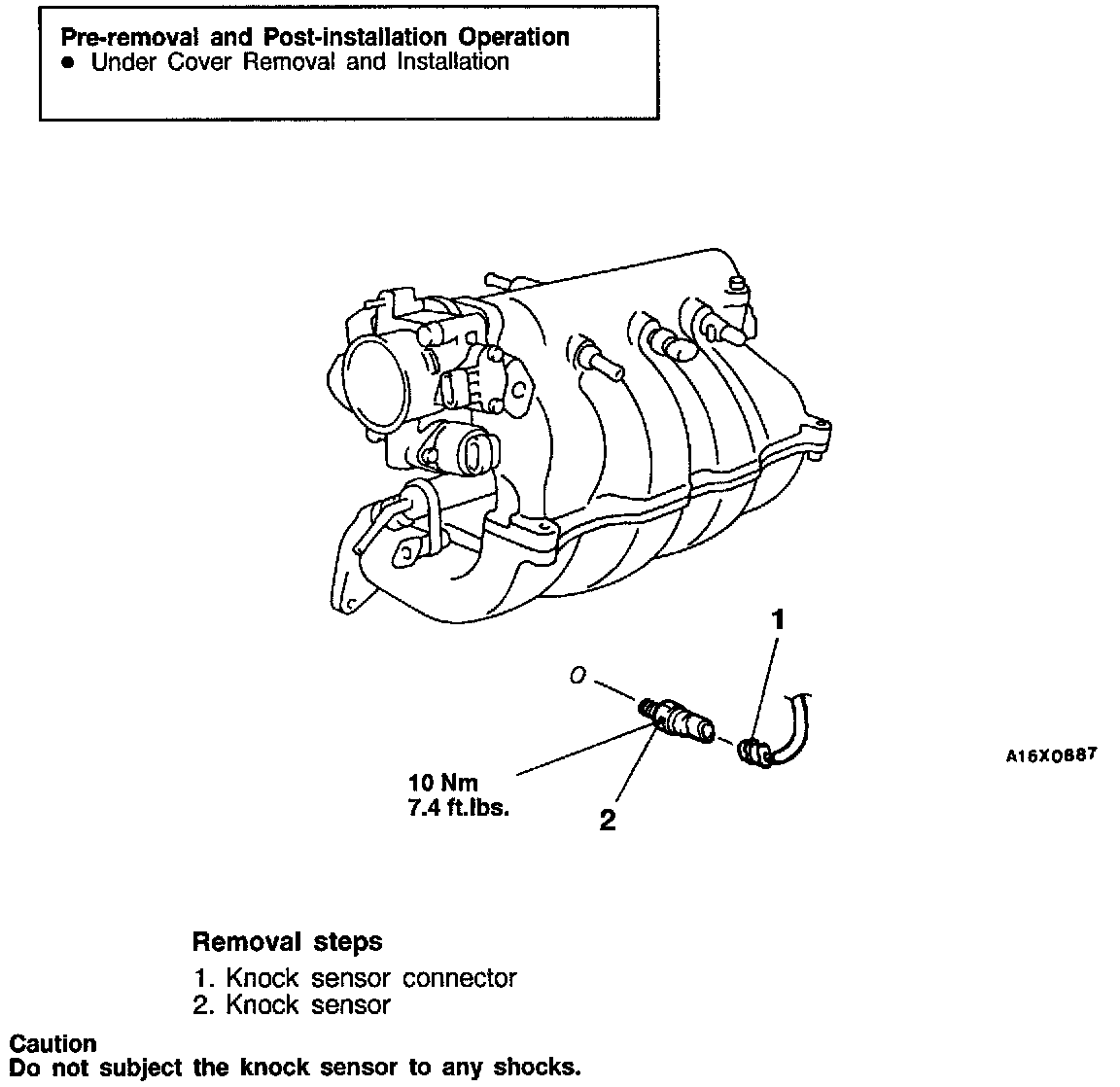

Knock Sensor - Removal And Installation:





Pre-Removal
- Under cover

REMOVE
1. Knock Sensor connector.
2. Knock Sensor.

INSTALL
1. Knock Sensor connector.
2. Knock Sensor.

Post-Installation
- Under cover

CAUTION: Do not subject the knock sensor to any shocks.
