Inspection

Visual And Aural Checks:

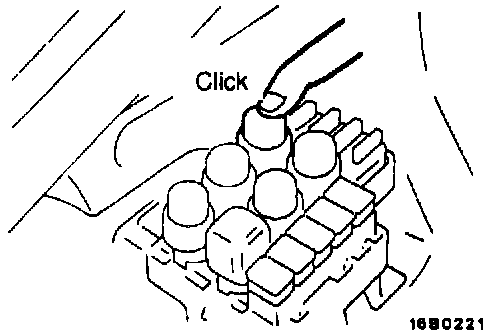

1. Visual And Aural Checks
Check relay operation, blower motor rotation, light illumination, etc. visually or aurally. The flow of current is invisible but can be checked by the operation of the parts.


Simple Checks:

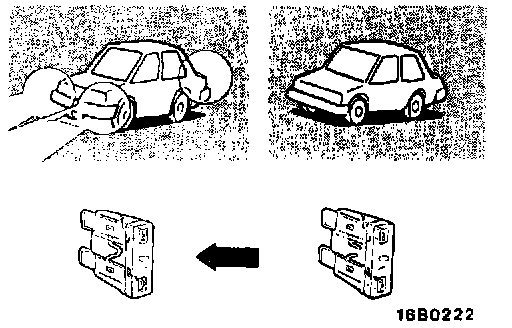

2. Simple Checks
For example, if a headlight does not come on and a fault fuse or poor grounding is suspected, replace the fuse with a new one or ground the light to the body by a jump wire to determine which part is responsible for the problem


Checking With Instruments:

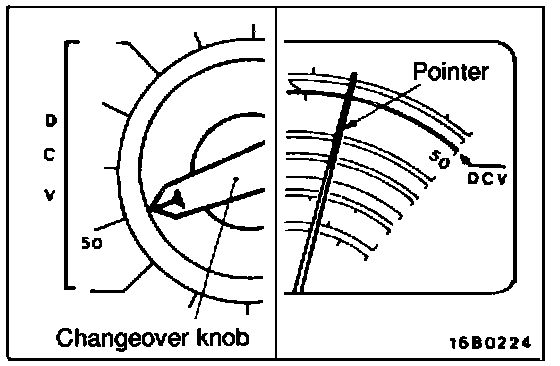

3. Checking With Instruments
Use an appropriate instrument in an adequate range and read the indication correctly. You must have sufficient knowledge and experience to handle instruments correctly.
