Main Relay (Computer/Fuel System): Diagrams

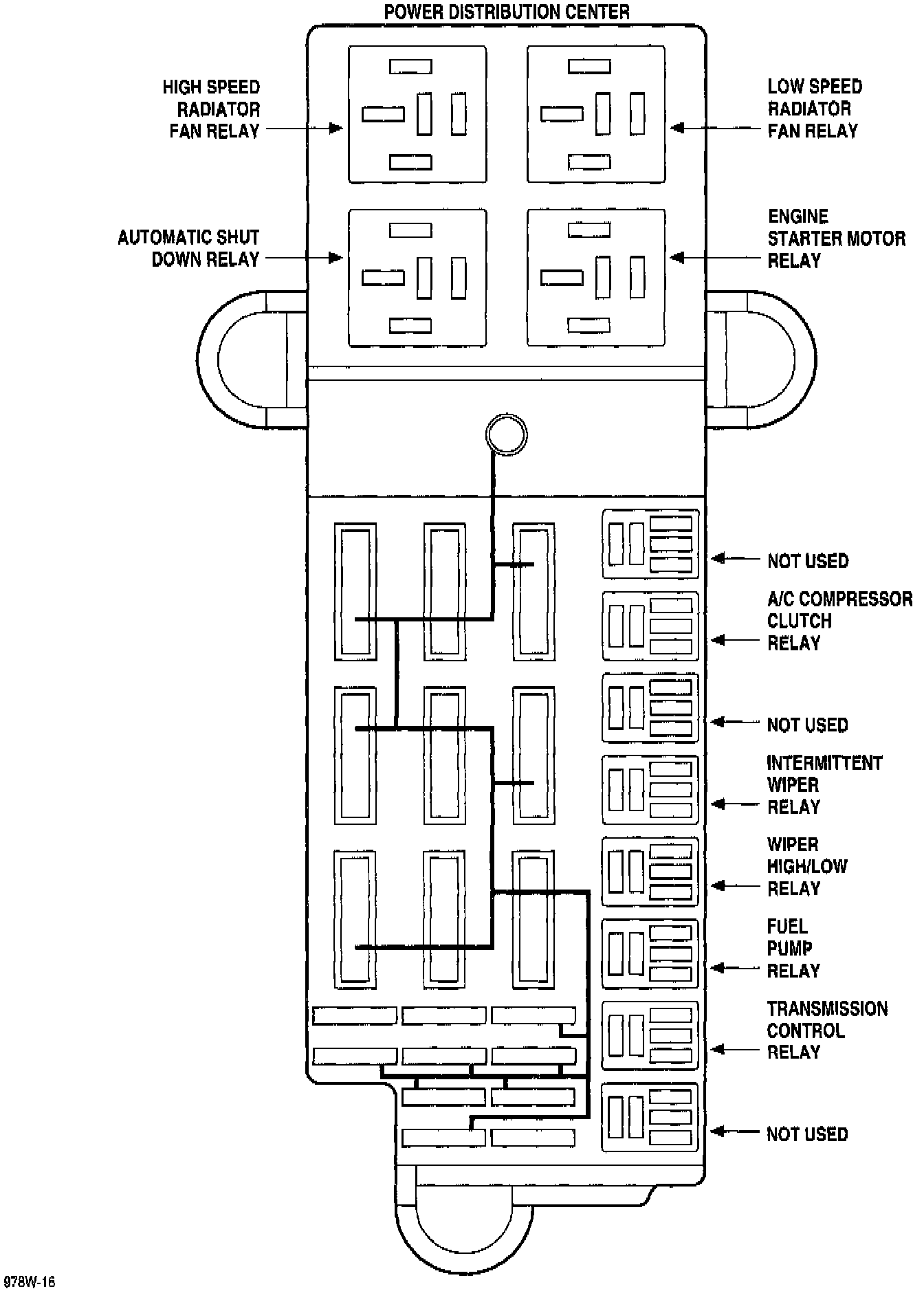

Power Distribution Center:

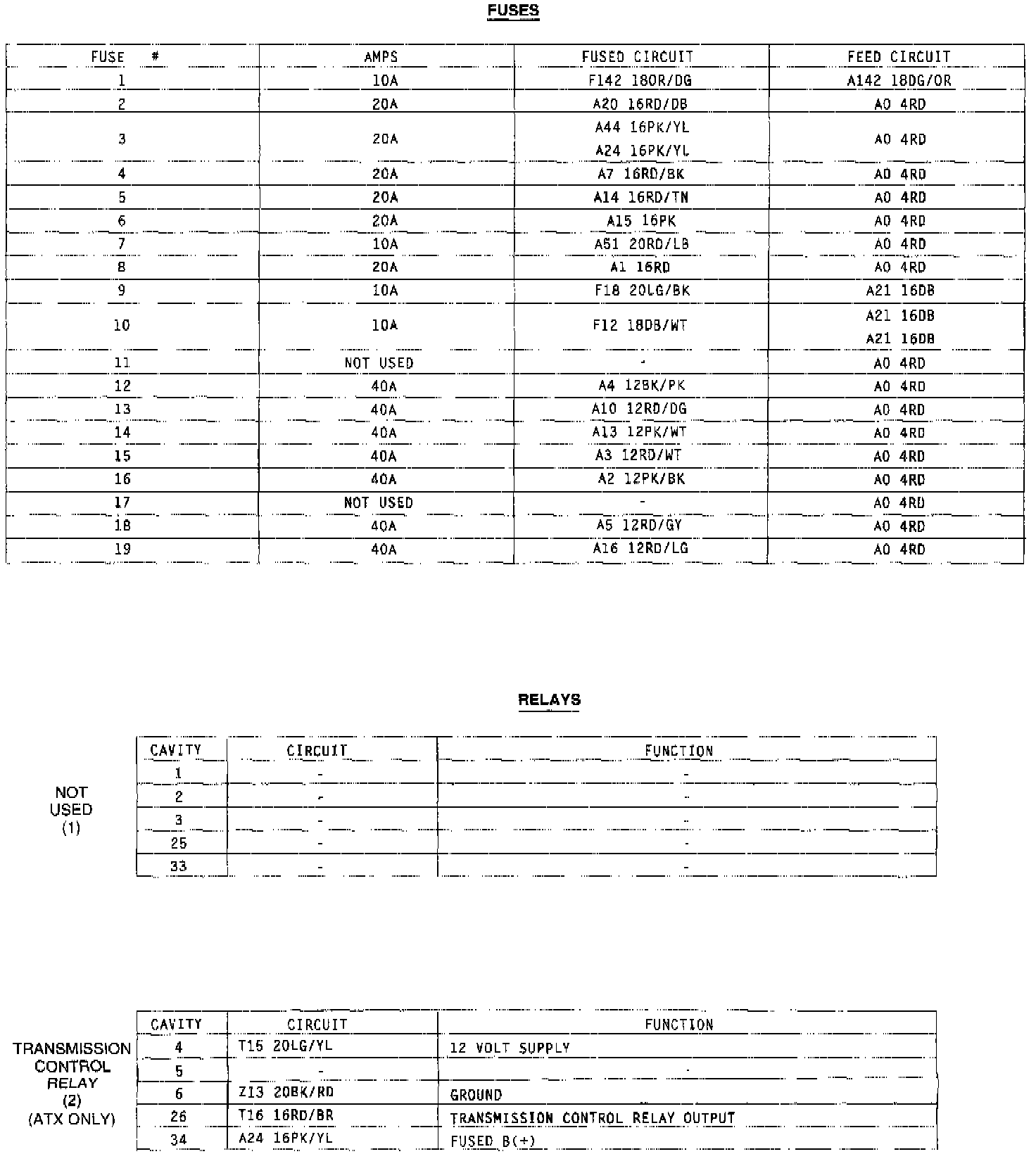

Connector Pin-Outs:

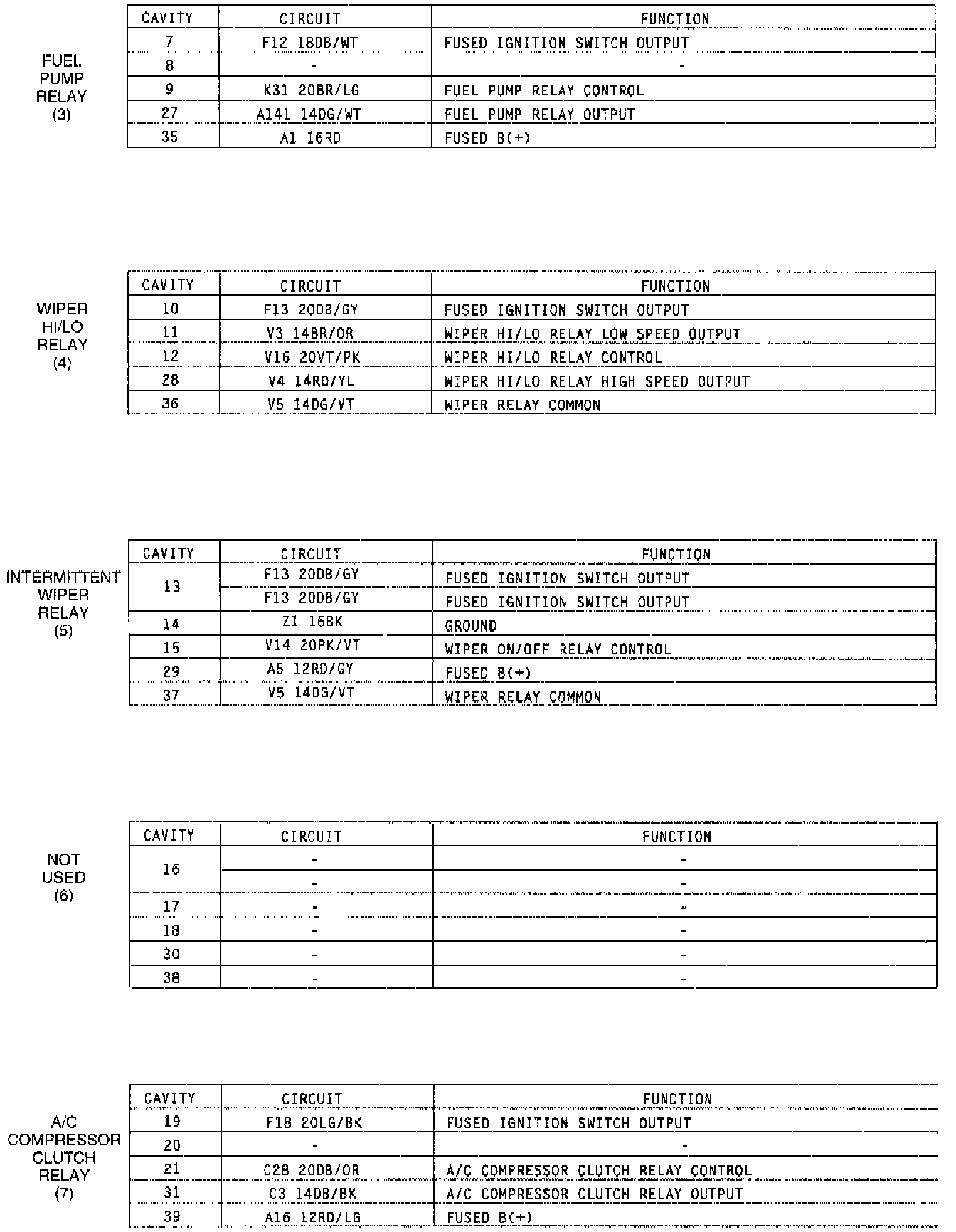

Connector Pin-Outs:

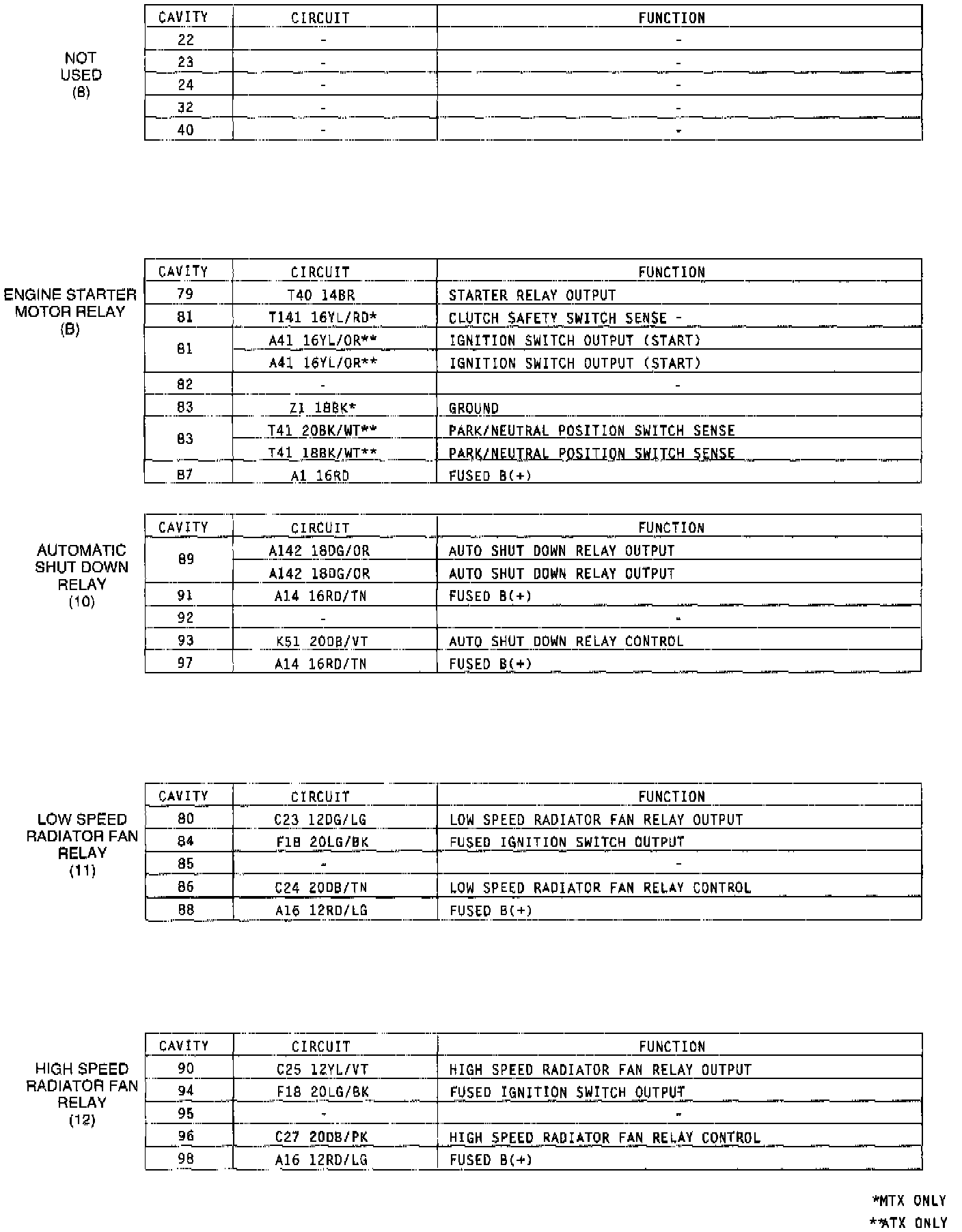

Connector Pin-Outs:







NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
