Engine Control Module



PCM Connector View:

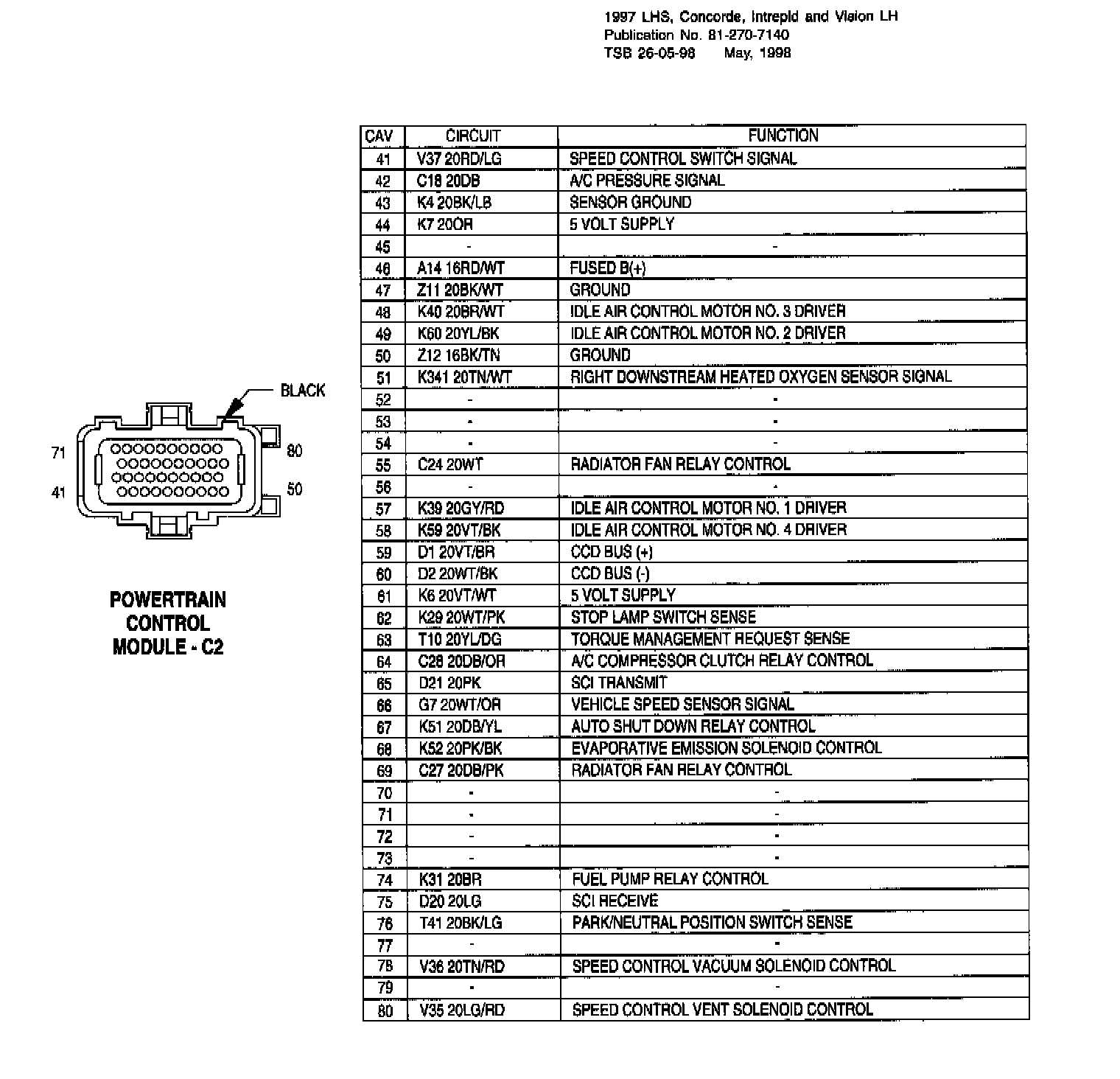

Connector Pin-Outs (Part 46 Of 63):

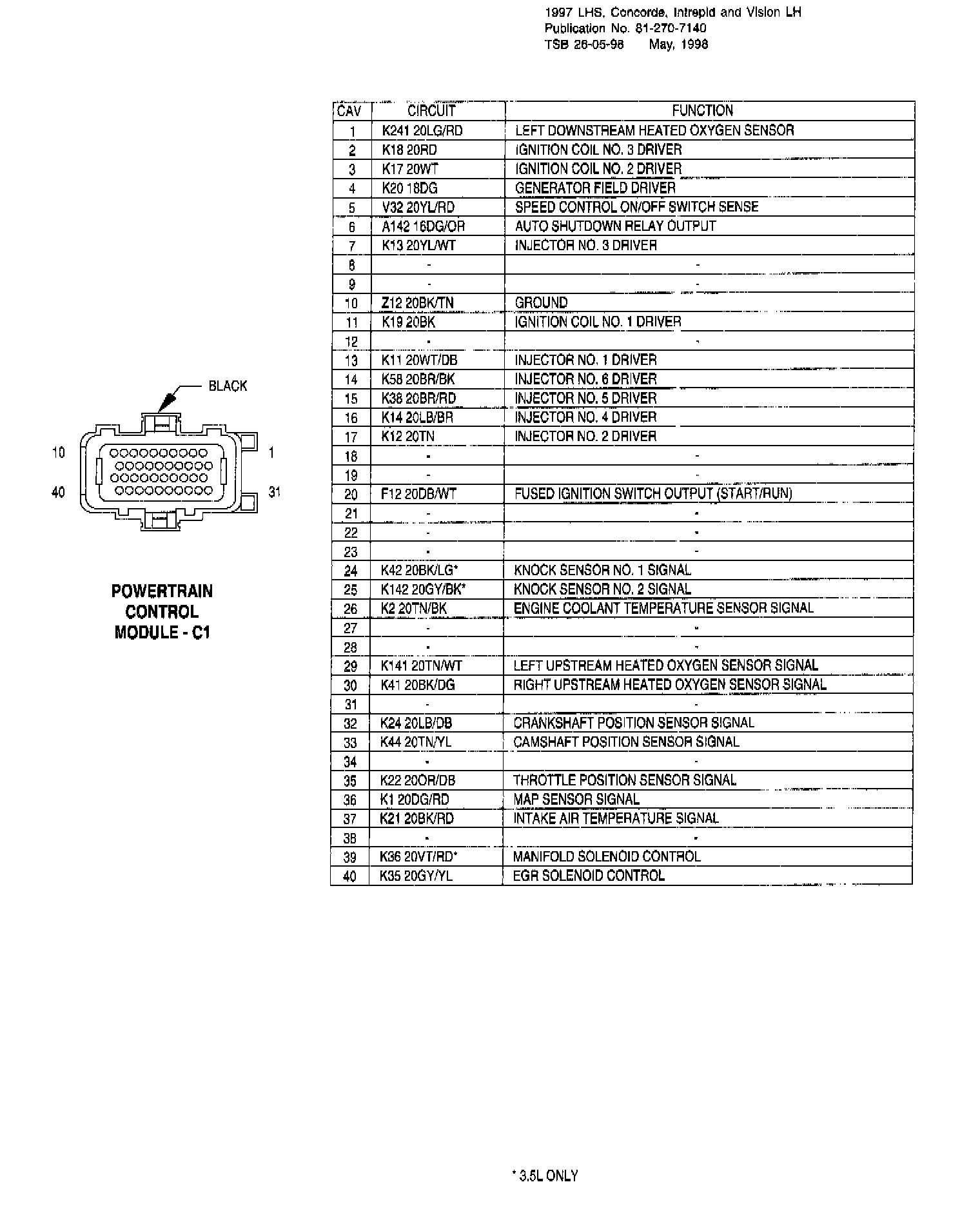

Connector Pin-Outs (Part 47 Of 63):
