ATC Sun Sensor Replacement

REMOVAL

Negative Battery Cable Remote Terminal:

1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.

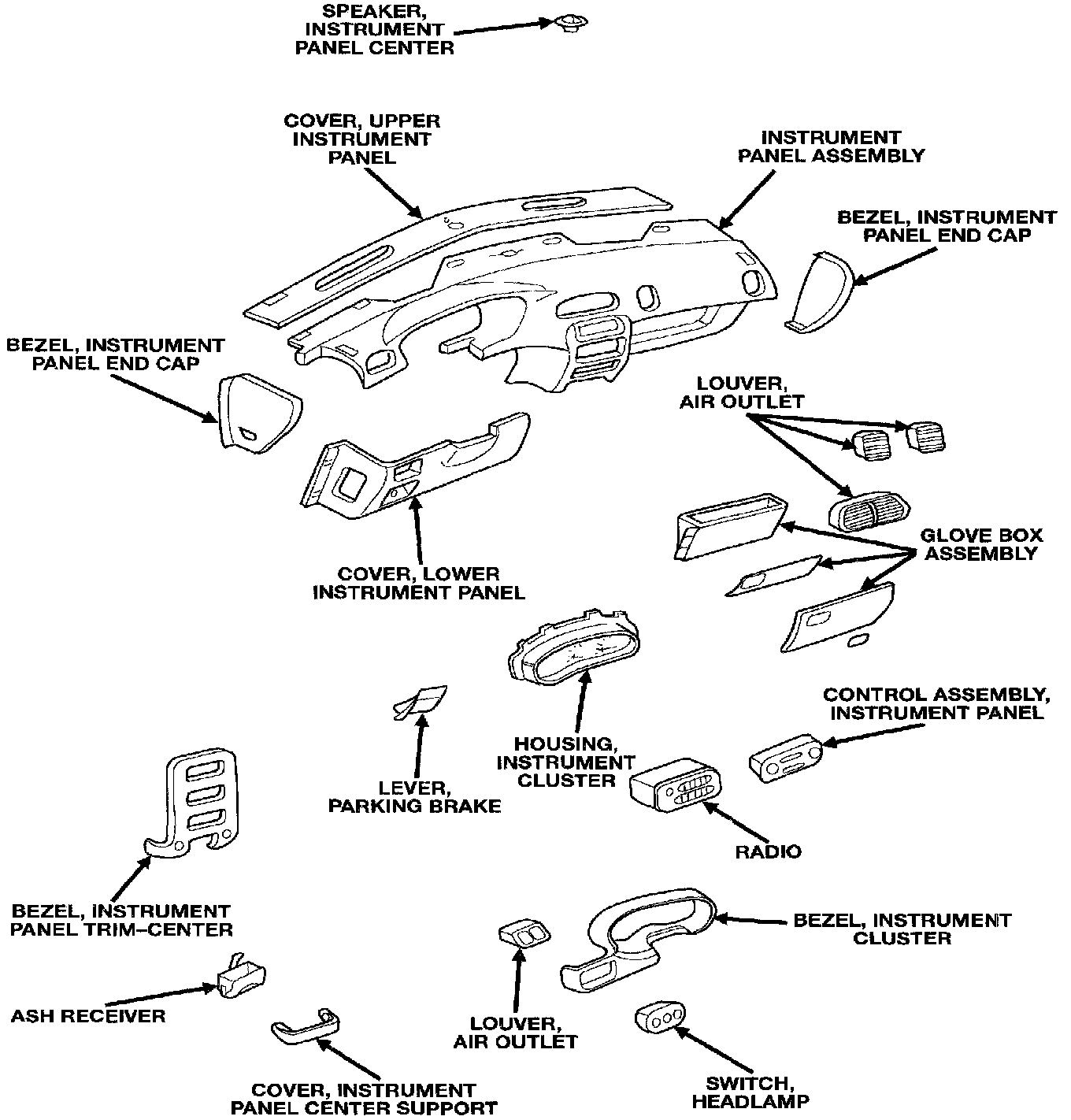

Instrument Panel Components:

2. Remove the instrument top cover.
3. Remove tile two sun sensor mounting screws.

ACT Sun Sensor:

4. Disconnect the wire connector and remove the sensor.

INSTALLATION
- For installation, reverse the above procedures
