Replacement



NOTE: For JA/JX with 2.4L engine, remove air cleaner clamps and air cleaner.

REMOVAL
1. Disconnect the battery negative cable.

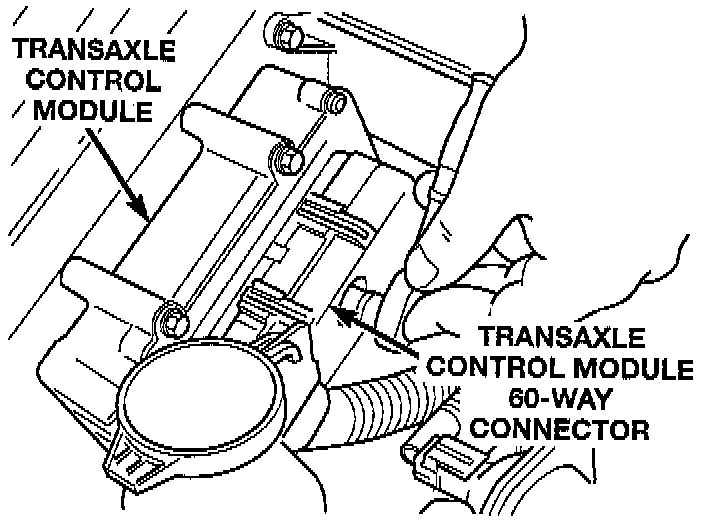

2. Loosen 60 way retaining screw, located in the center of the 60 way connector. Then disconnect the 60 way connector on Transmission Control Module.

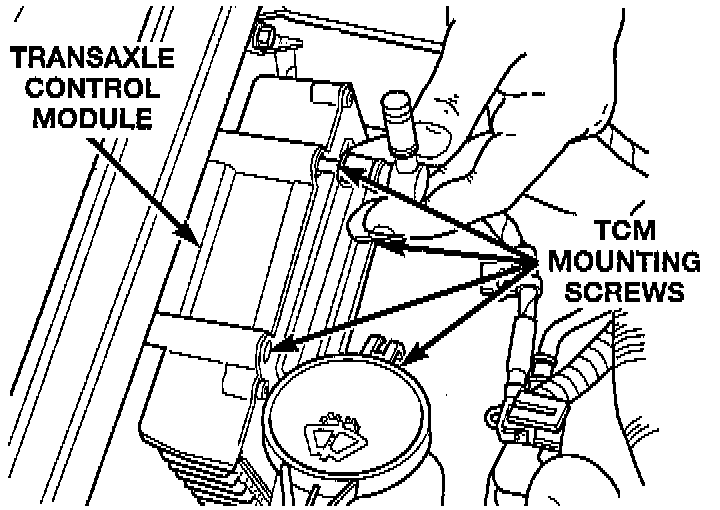

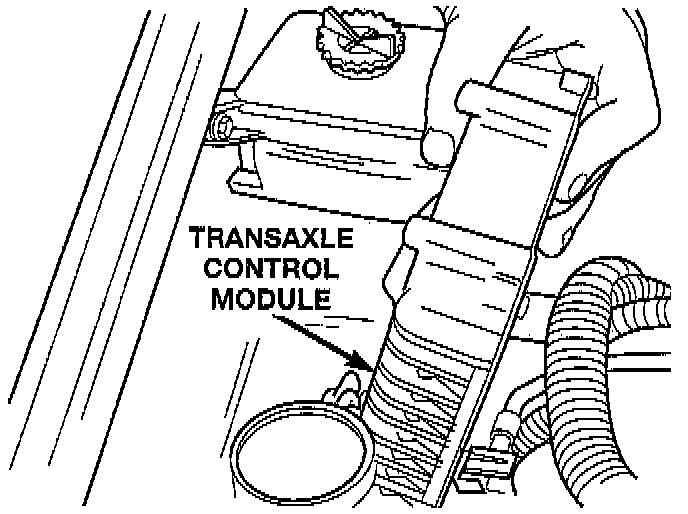

3. Remove Transmission Control Module mounting screws and lift module from vehicle.

INSTALLATION
To install, reverse removal procedures.
