Main Relay (Computer/Fuel System): Locations

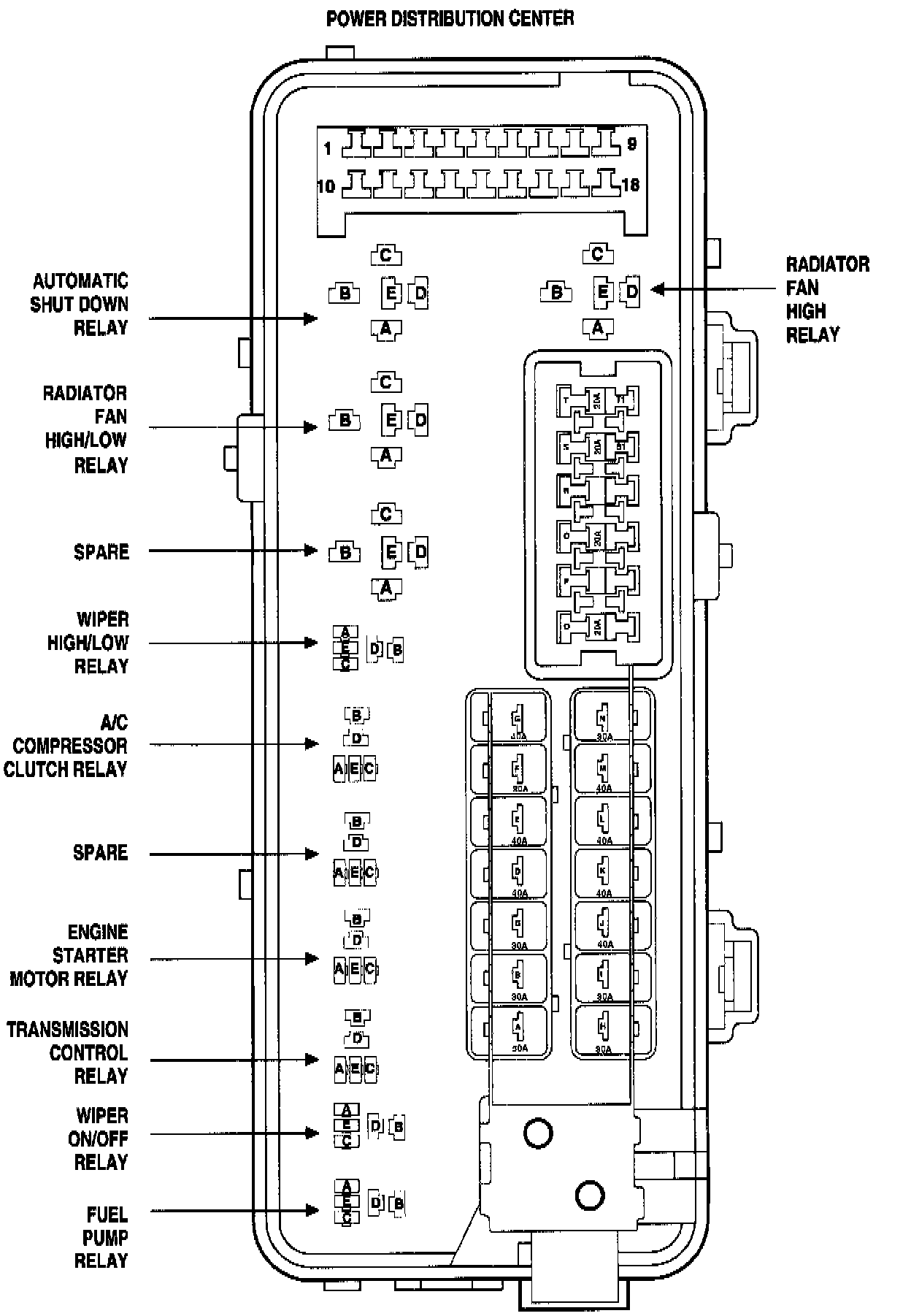

Power Distribution Center:

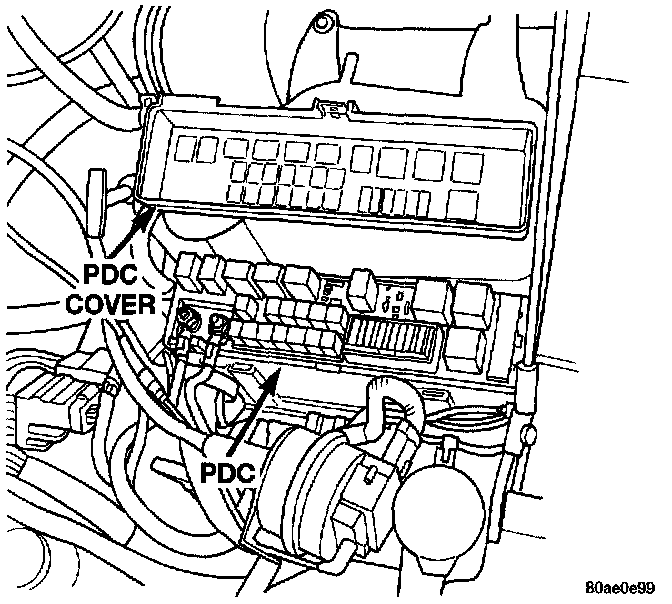

8w-10-2 -- Power Distribution Center (PDC) Near The Battery:






The ASD relay and fuel pump relay are located in the Power Distribution Center (PDC) near the battery.
