ATC Sun Sensor Replacement

REMOVAL

Negative Battery Cable Remote - Terminal:

1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.

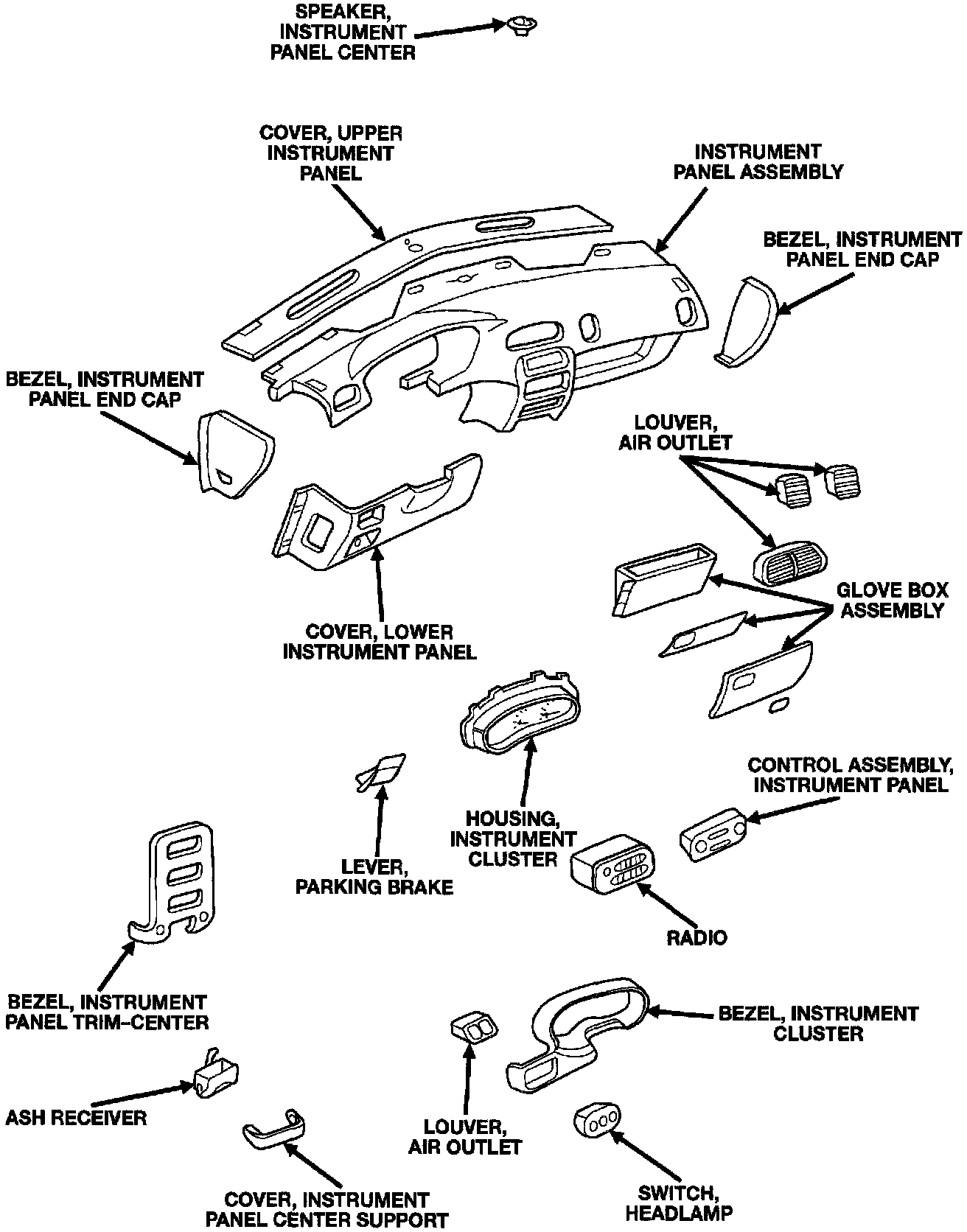

Instrument Panel Components:

2. Remove the instrument top cover.
3. Remove the two sun sensor mounting screws.

ATC Sun Sensor:

4. Disconnect the wire connector and remove the sensor.

INSTALLATION
For installation, reverse the above procedures.
