Camshaft Position Sensor: Locations

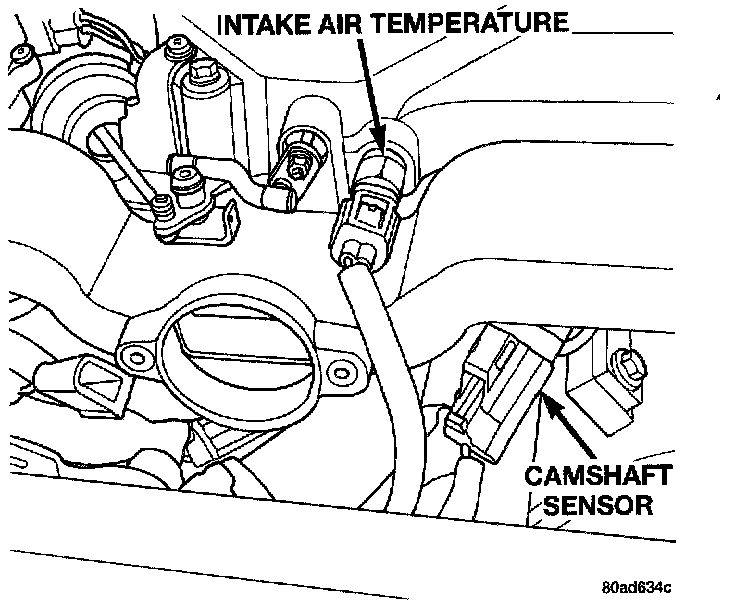

Camshaft Position Sensor Location:
The camshaft position sensor is mounted in the front of the timing case cover above the left camshaft sprocket.
The camshaft position sensor is mounted in the front of the timing case cover above the left camshaft sprocket.
