Power Distribution Center

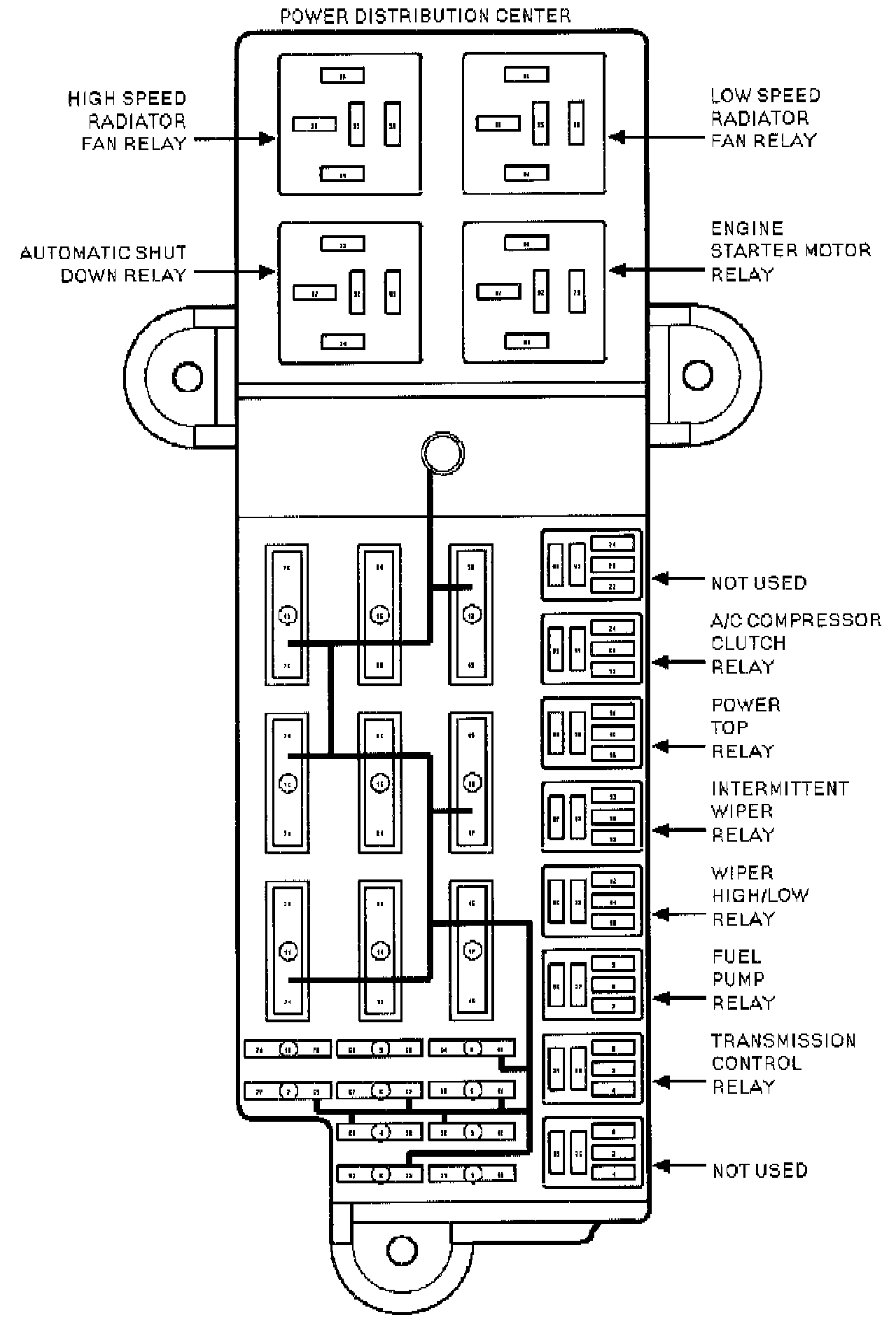

Power Distribution Center:

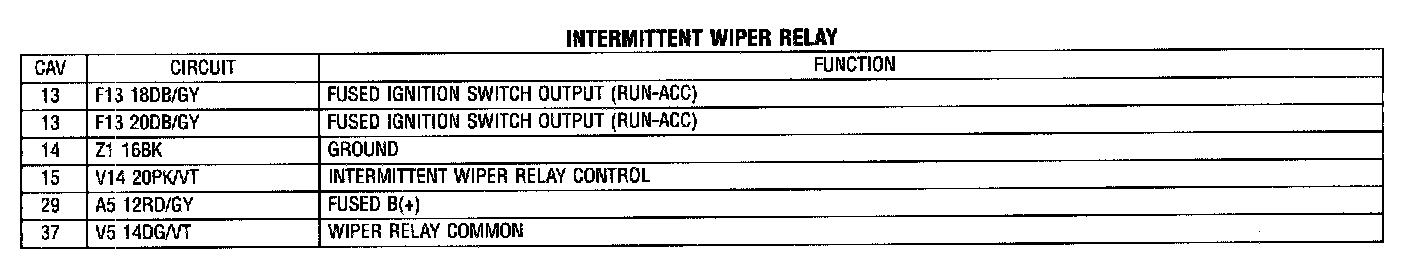

Intermittent Wiper Relay:

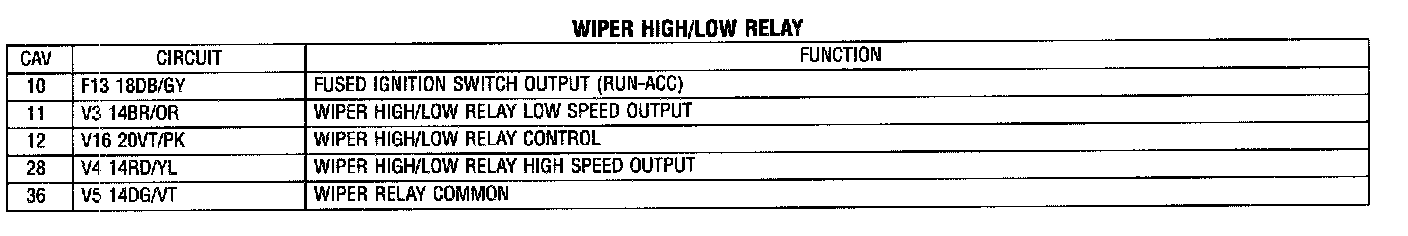

Wiper High/Low Relay:
