Sensor Locations

Sensor Location Overall View (SOHC):

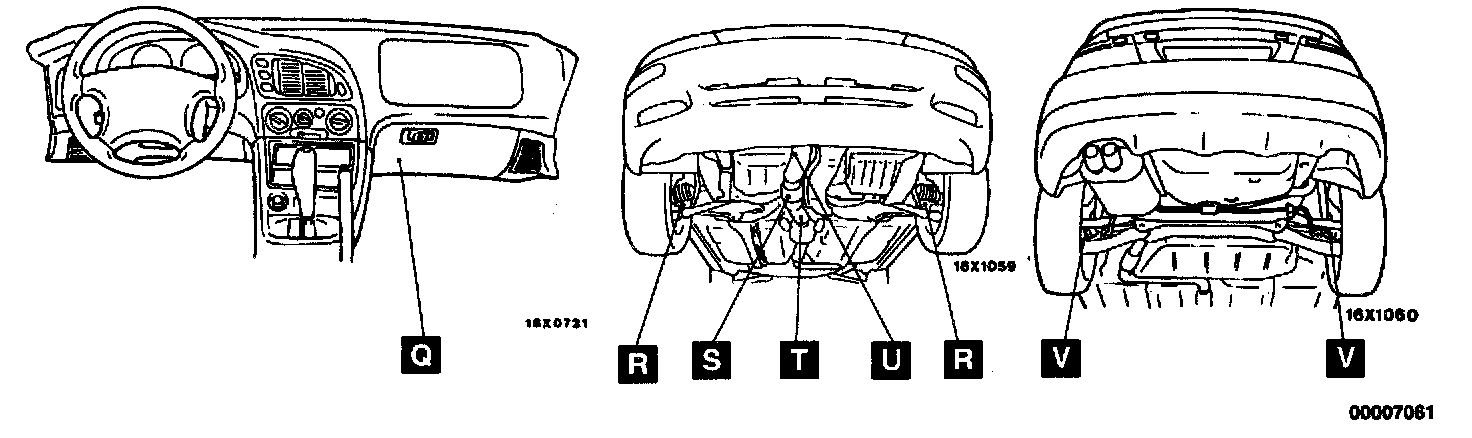

Sensor Location Overall Views:

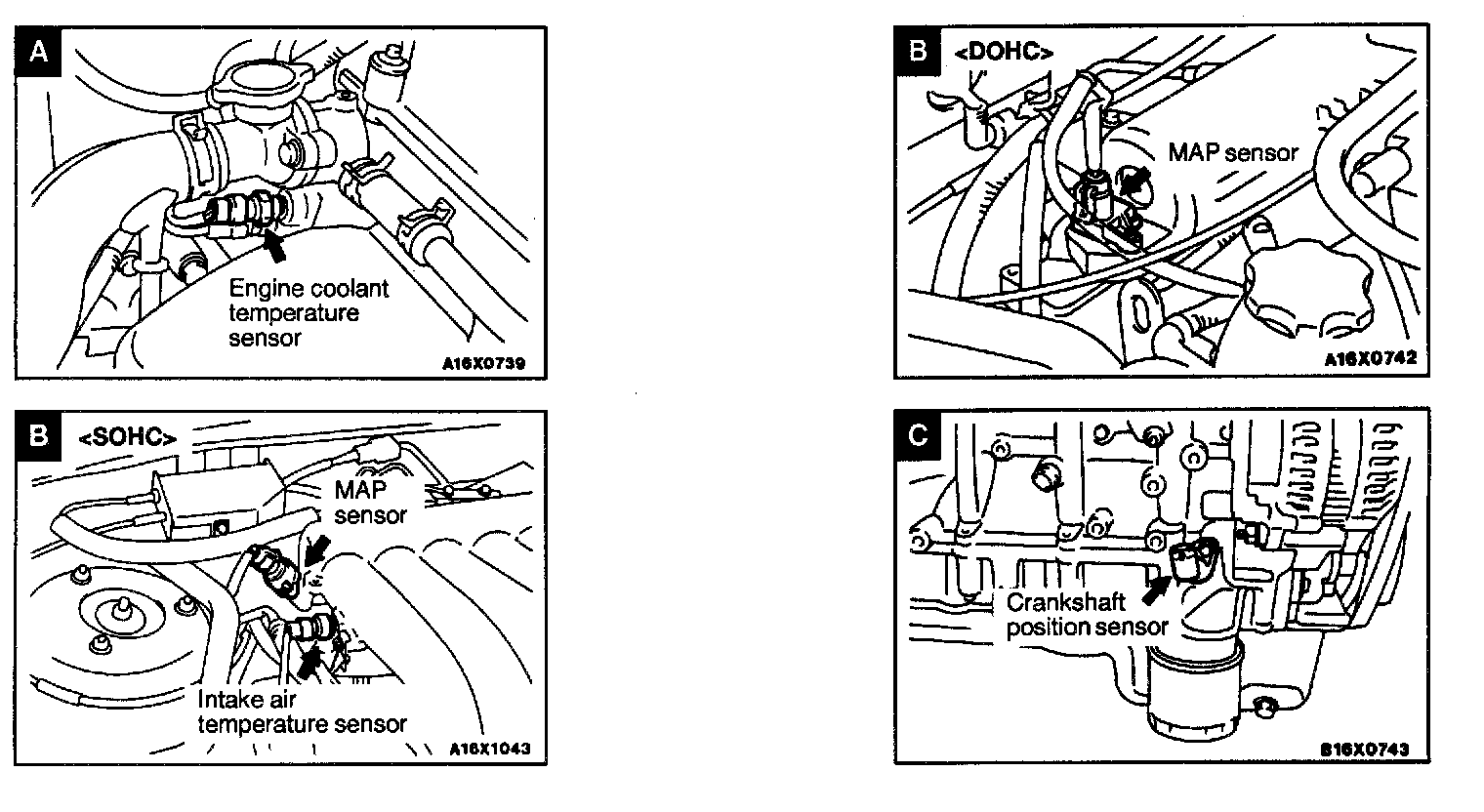

Sensor Location Views A - C:

Sensor Location Views D - L:

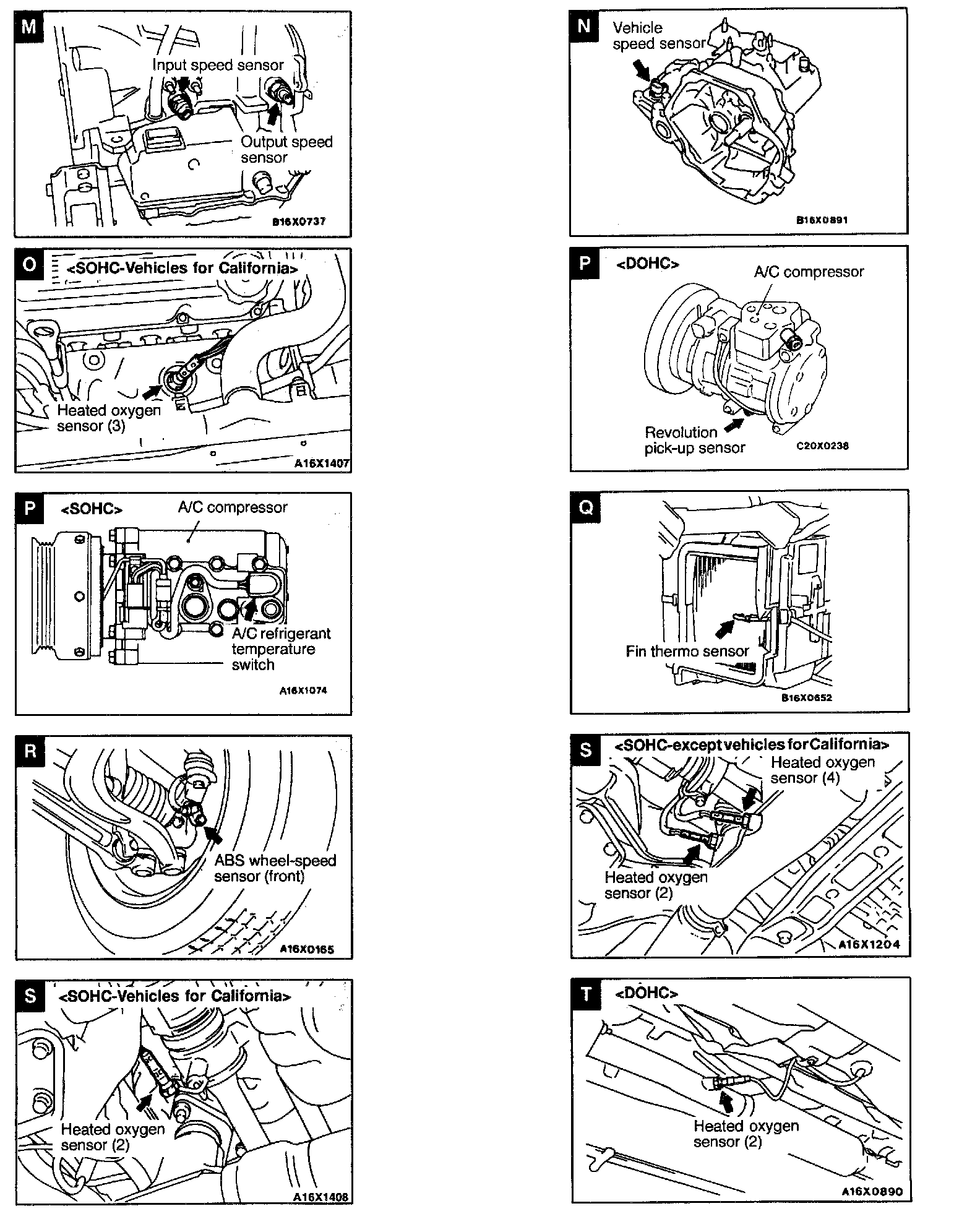

Sensor Location Views M - T:

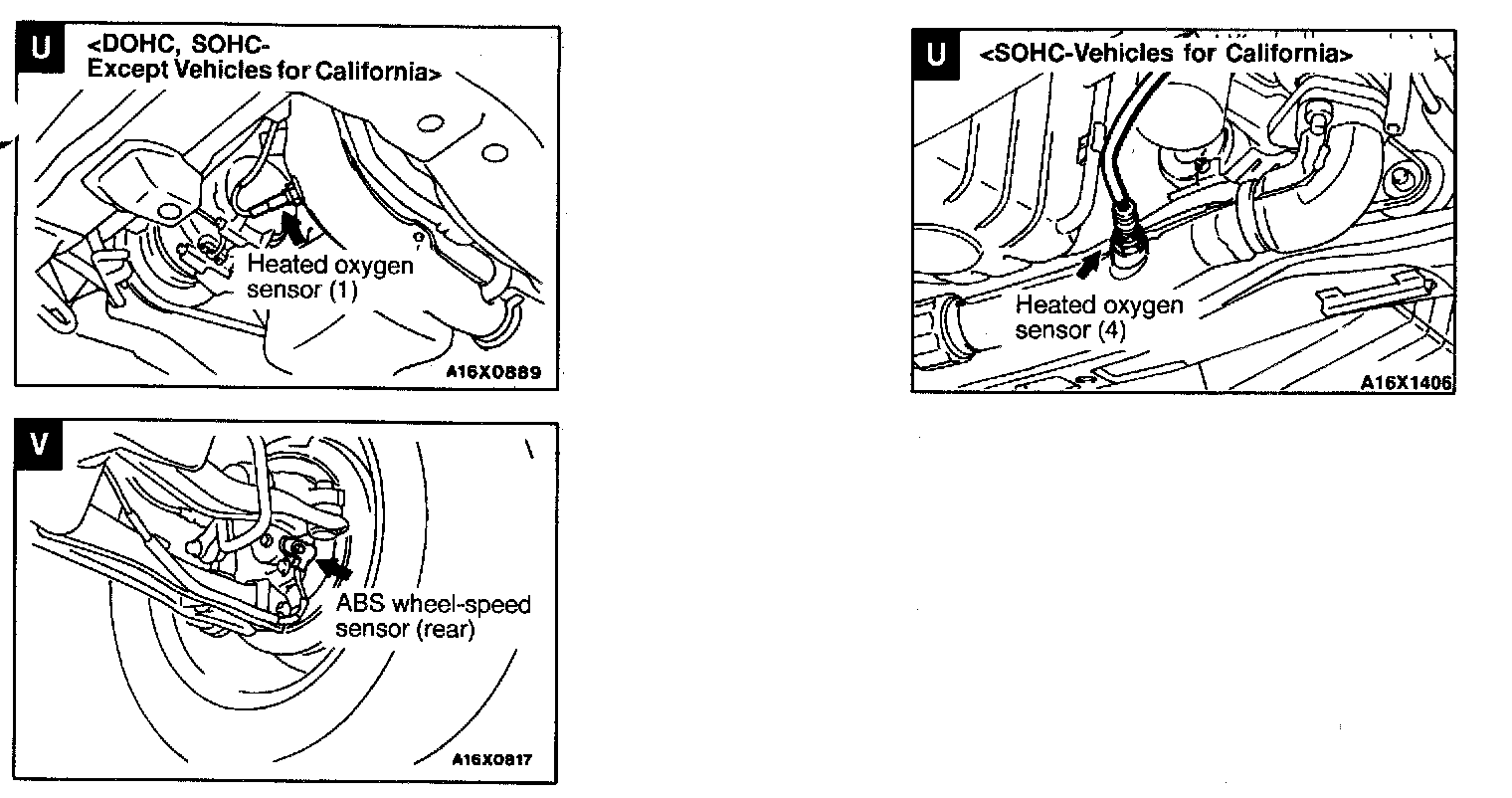

Sensor Location Views U - V:

Name Symbol

A/C Refrigerant Temperature Switch P
Crankshaft Position Sensor K
Distributor Assembly
(Built-In Camshaft Position Sensor) I
Engine Coolant Temperature Sensor J
Fin Thermo Sensor Q
Heated Oxygen Sensor (1) F
Heated Oxygen Sensor (2) S
Heated Oxygen Sensor (3) U

Heated Oxygen Sensor (3) O

Heated Oxygen Sensor (4) S

Heated Oxygen Sensor (4) U

Input Speed Sensor M
Intake Air Temperature Sensor B
MAP Sensor B
Output Speed Sensor M
Throttle Position Sensor G
Transaxle Range Sensor L
(Built-in Transaxle Temperature Sensor)
Vehicle Speed Sensor N
Wheel Speed Sensor (Front) R
Wheel Speed Sensor (Rear) V
