Heater Control Disassembly and Reassembly





DISASSEMBLY

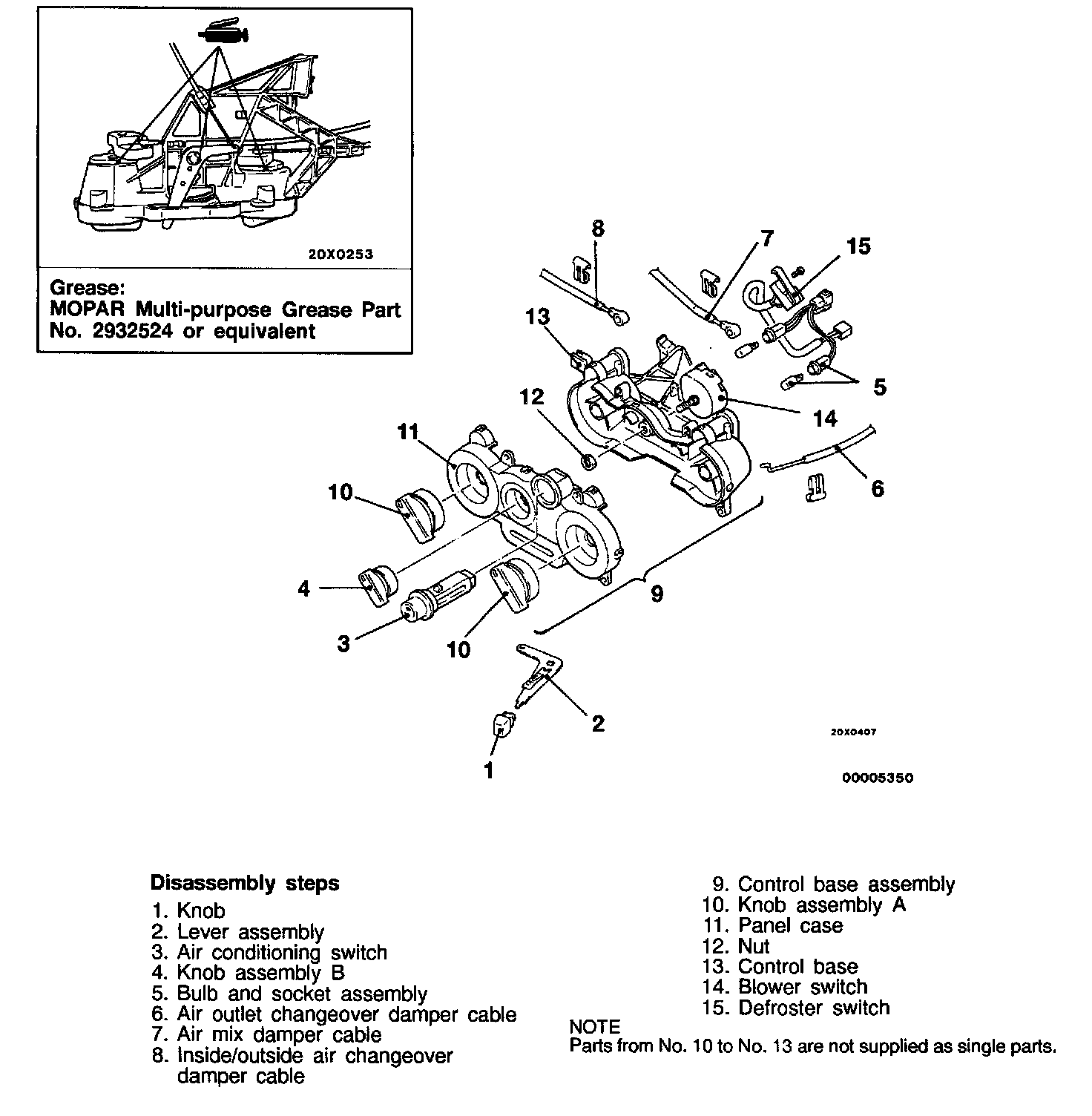

For disassembly follow steps in image noting the following:




Steps 6,7 & 8
AIR OUTLET CHANGE-OVER DAMPER CABLE/AIR MIXING DAMPER CABLE/INSIDE/OUTSIDE AIR CHANGE-OVER DAMPER CABLE REMOVAL
Insert a flat-tipped screwdriver to disengage the claws, and then remove the cables.
