Crankshaft Position Sensor: Service and Repair

CKP Sensor Removal And Installation:





Pre-removal and Post-Installation Operation
- Battery Removal and Installation

Removal

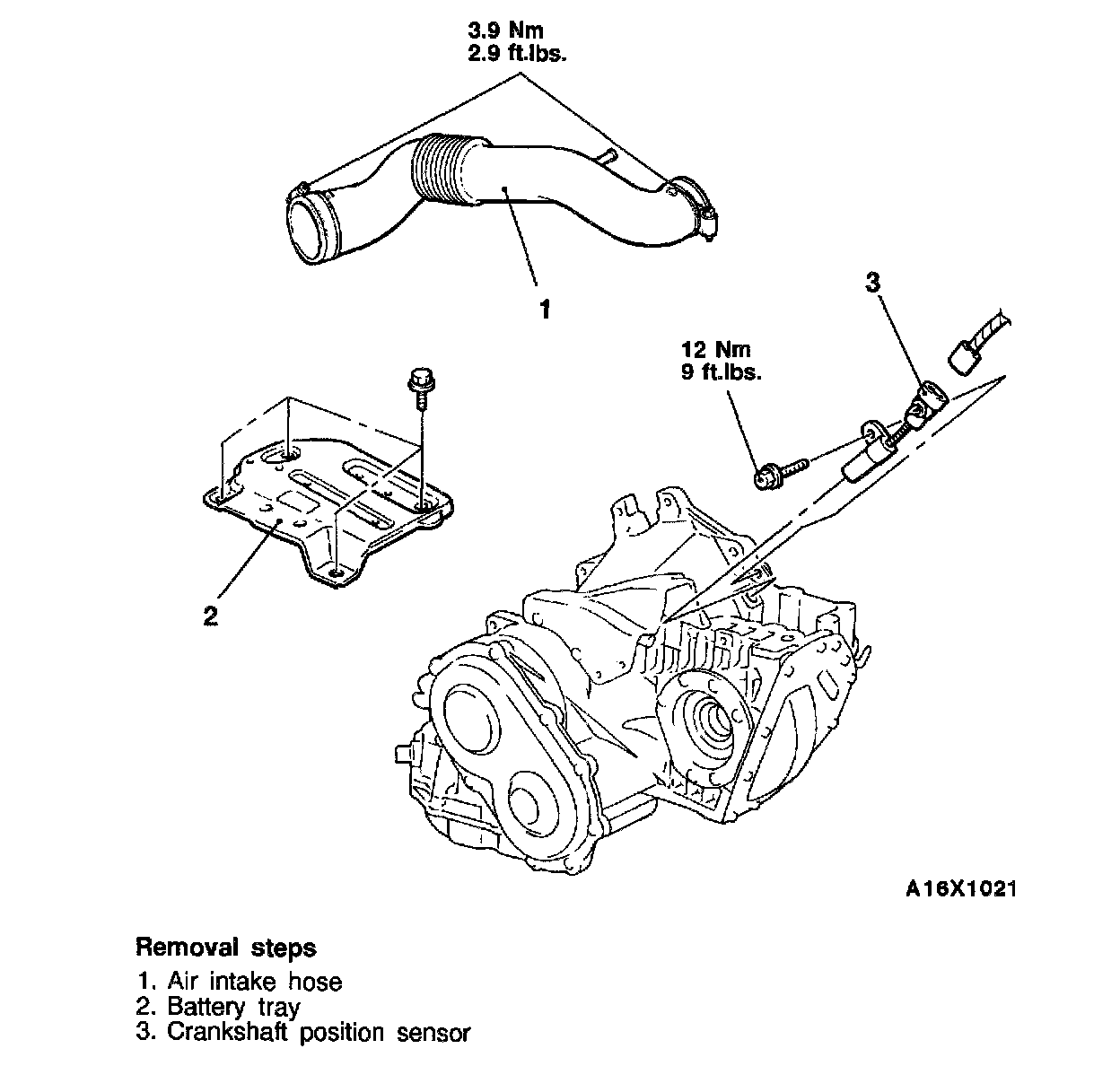

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.
