Left Mount: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

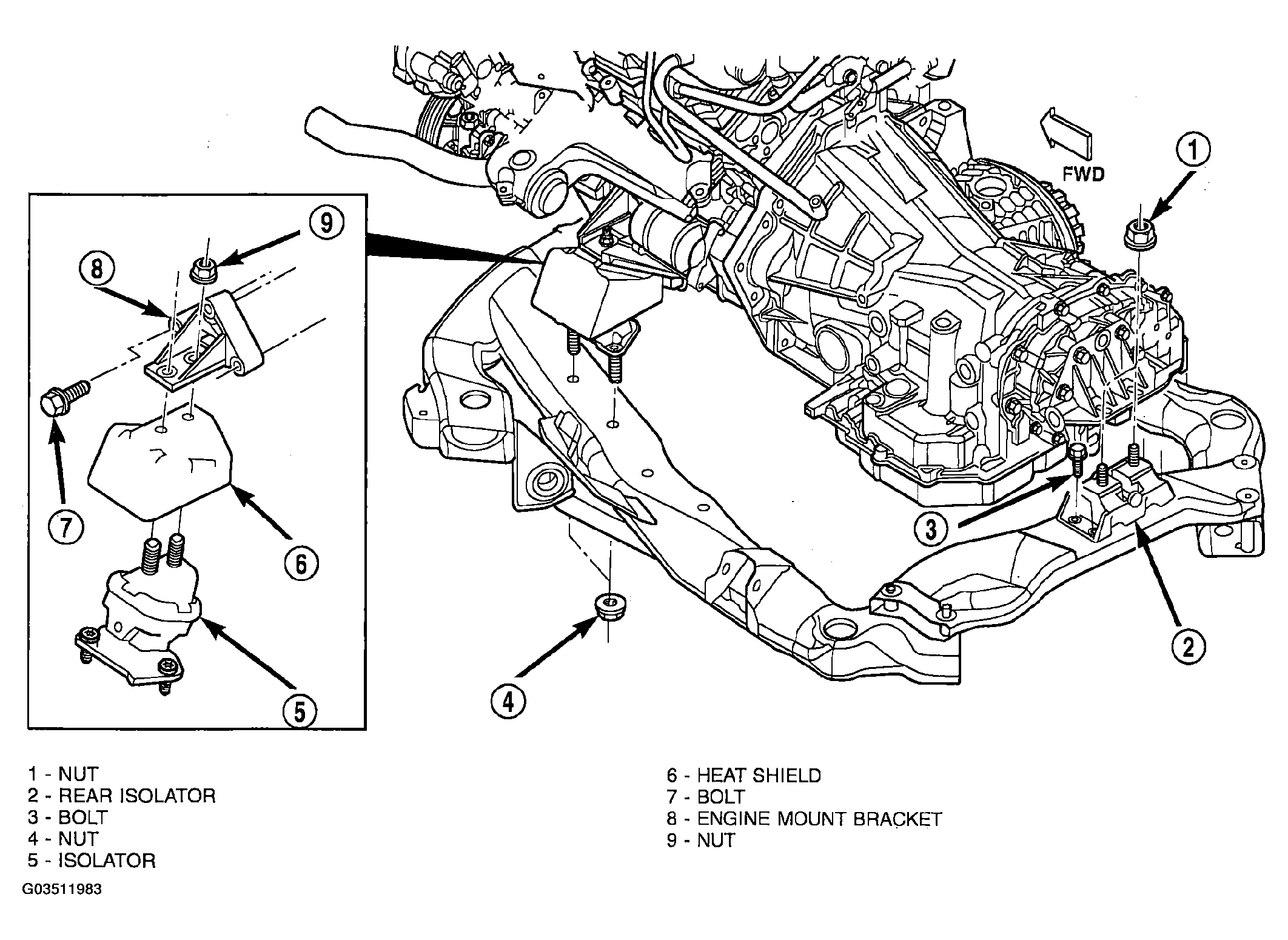

- Install isolator mount with heat shield onto the frame.
- Lower the engine onto the isolator mount.
- Remove jack from vehicle.
- Tighten the isolator to frame nuts to 61 N.m (45 ft. lbs.) (Figure
).
- Install the upper attaching nuts to mount and tighten to 61 N.m (45 ft. lbs.) (Figure
).
- Lower vehicle.
