Engine Cradle CROSSMEMBER: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
VERIFY THAT VEHICLE IS PROPERLY SUPPORTED AND SECURED TO THE LIFTING DEVICE. VEHICLE CENTER OF GRAVITY WILL CHANGE WHEN HEAVY COMPONENTS ARE REMOVED CAUSING A HAZARDOUS CONDITION.
- Release hood latch and open hood.
- Remove nuts holding engine mounts to cradle.
- Install a suitable engine support device.
- Raise and support vehicle on safety stands.
- Remove bolts holding transaxle crossmember to cradle.
- Lower vehicle and lift engine and transaxle off cradle.
- Raise and support vehicle on safety stands.
- Disconnect sway bar links.
- Remove bolts retaining suspension lower ball joints to spindles.
- Separate lower control arm from spindle. Refer to LOWER CONTROL ARM .
- Support cradle on a 10 cm by 10 cm by 90 cm (4 in. by 4 in. by 36 in.) wood beam and a jack.

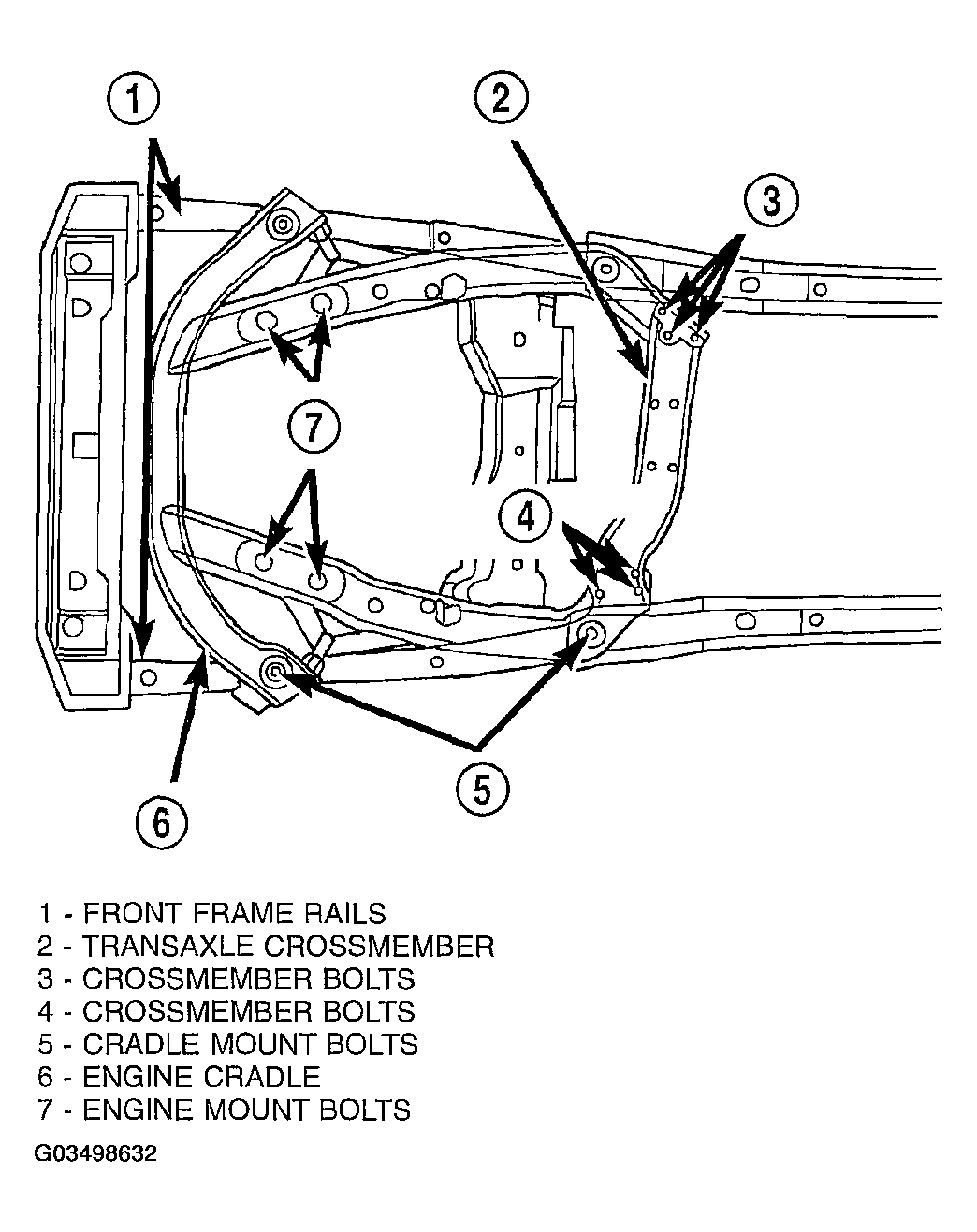

- Remove bolts holding cradle to body shell (Fig 1 ).
- Lower cradle away from body shell.
