Frame Dimensions

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Frame dimensions are listed in metric scale then converted to inch scale listed in parenthesis. All dimensions are from center to center of Principal Locating Point (PLP), or from center to center of PLP and fastener location. Vertical dimensions can be taken from the work surface to the locations indicated.

INDEX

DESCRIPTION	FIGURE
ENGINE COMPARTMENT TOP VIEW	11
ENGINE COMPARTMENT SIDE VIEW	12
FORWARD FRAME SECTION AND ENGINE CRADLE	13
REAR FRAME SECTION	14

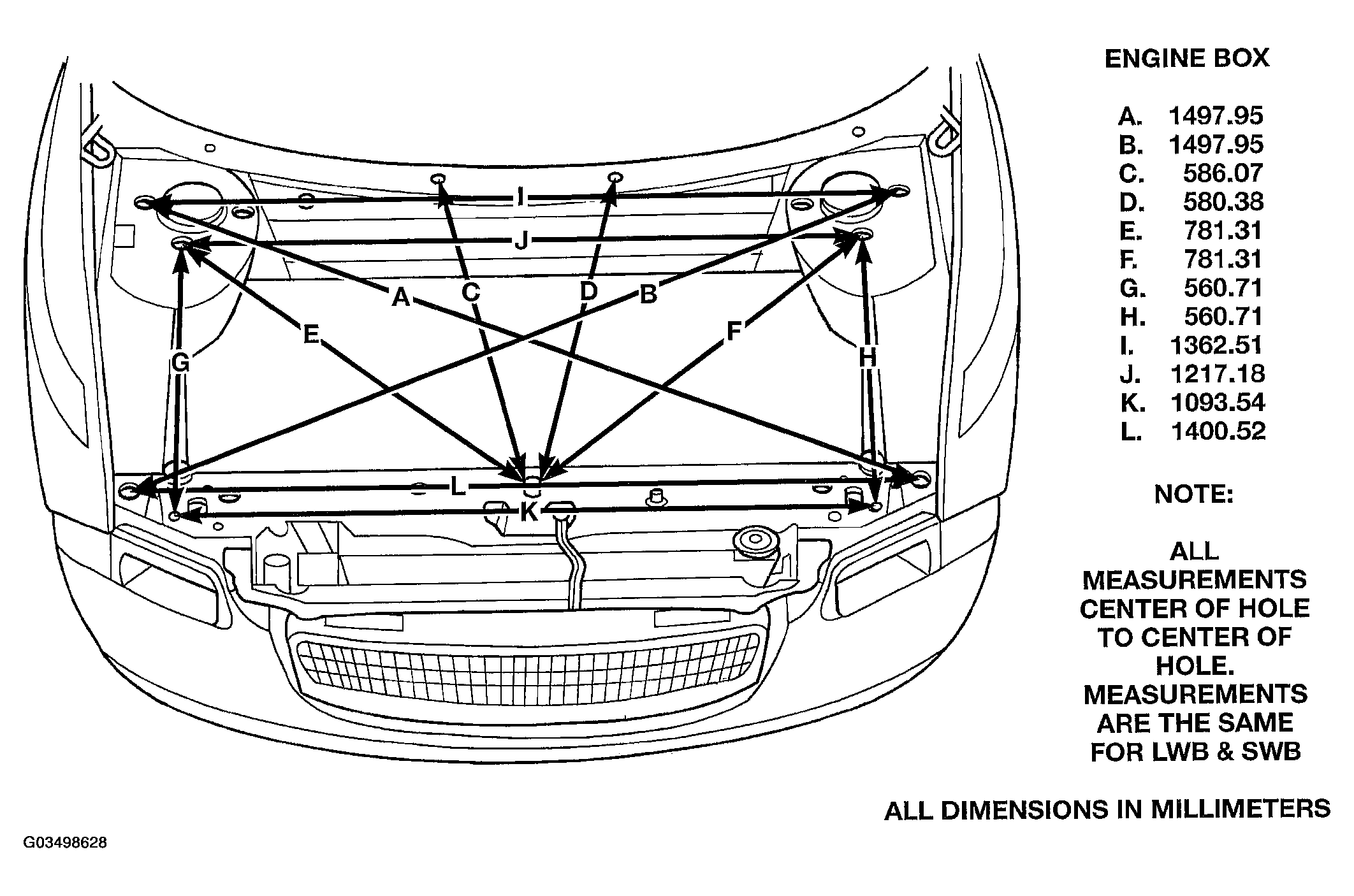

Fig 1: Engine Compartment Top View

Courtesy of DAIMLERCHRYSLER CORP.

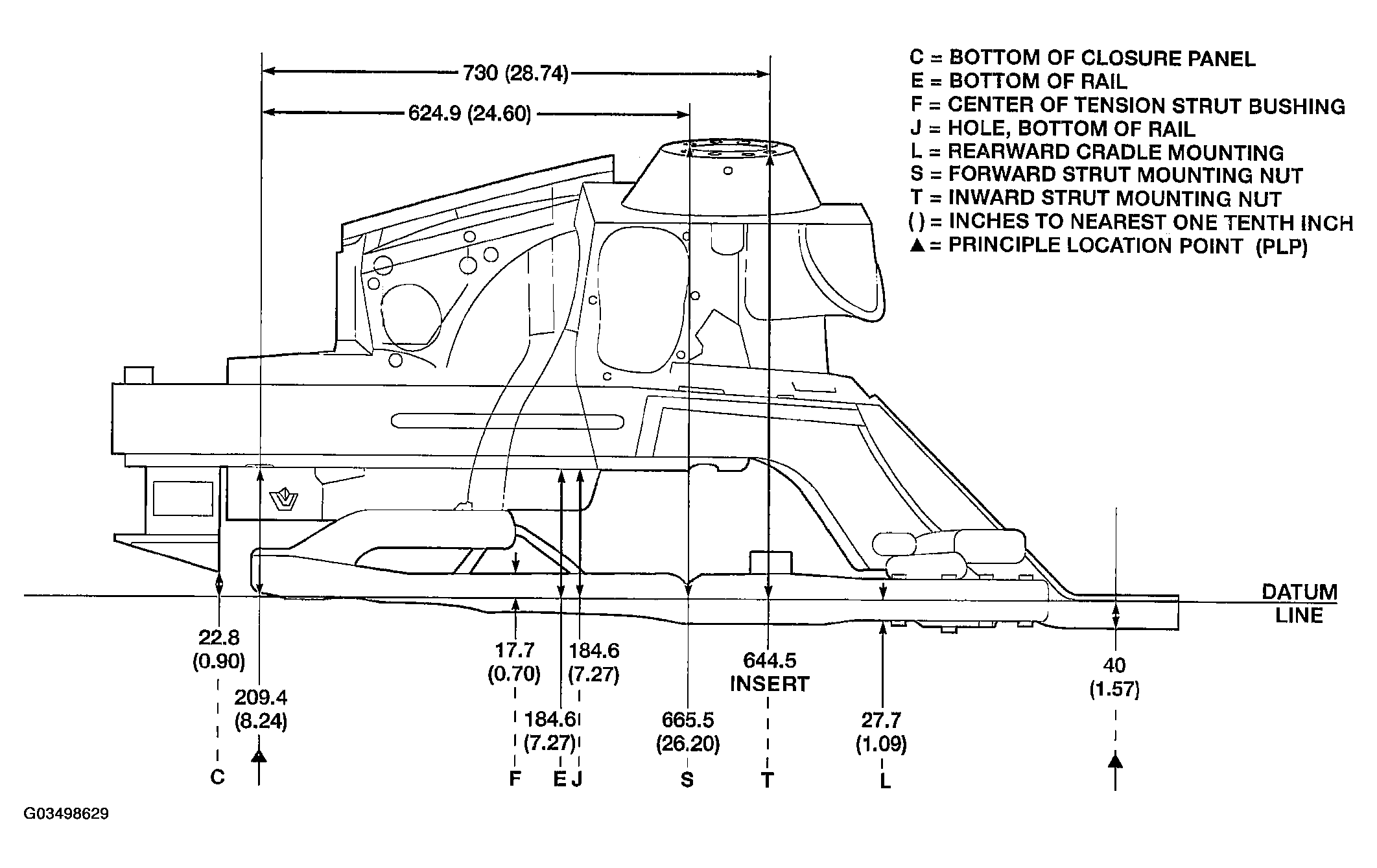

Fig 2: Engine Compartment Side View

Courtesy of DAIMLERCHRYSLER CORP.

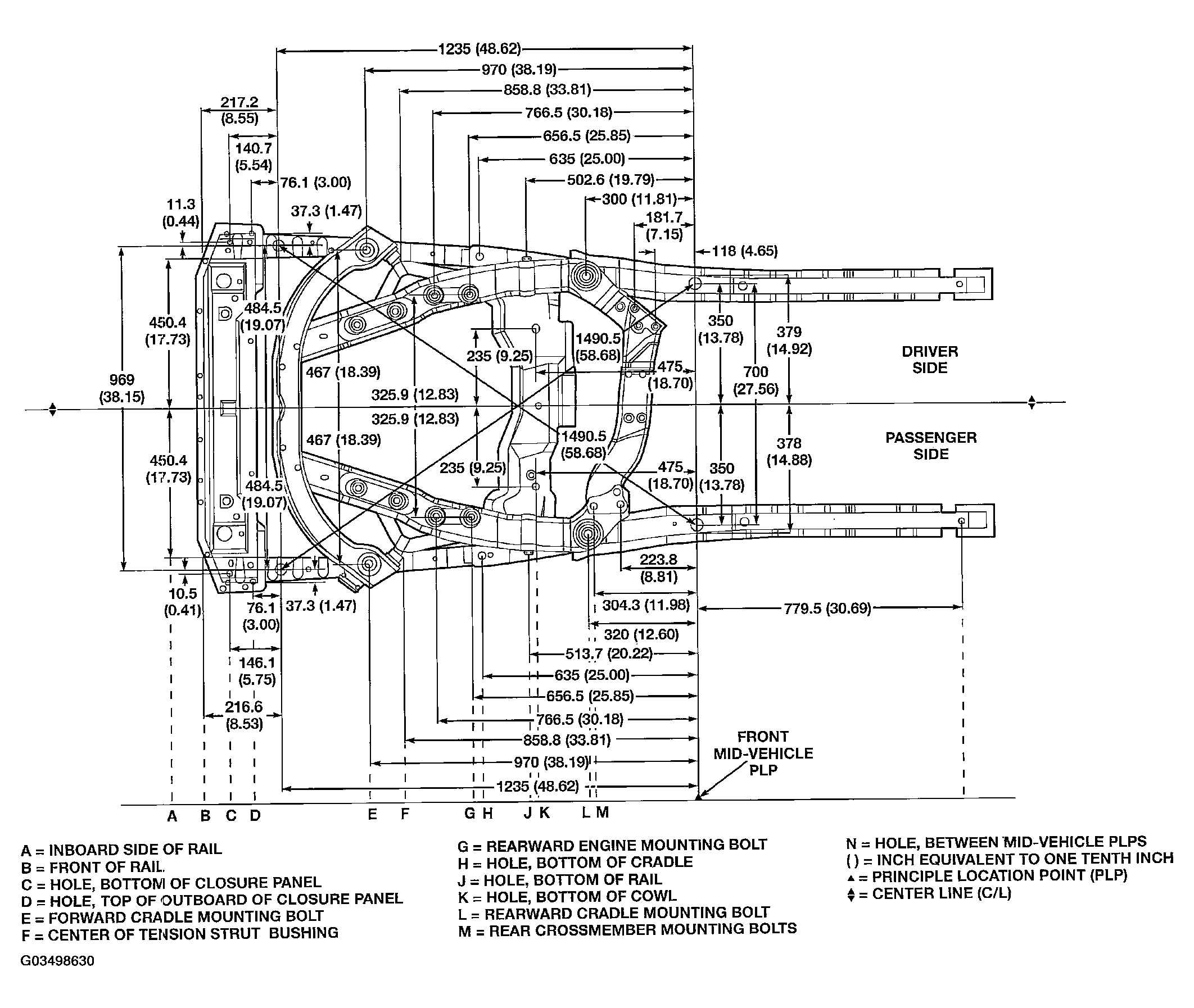

Fig 3: Forward Frame Section And Engine Cradle

Courtesy of DAIMLERCHRYSLER CORP.

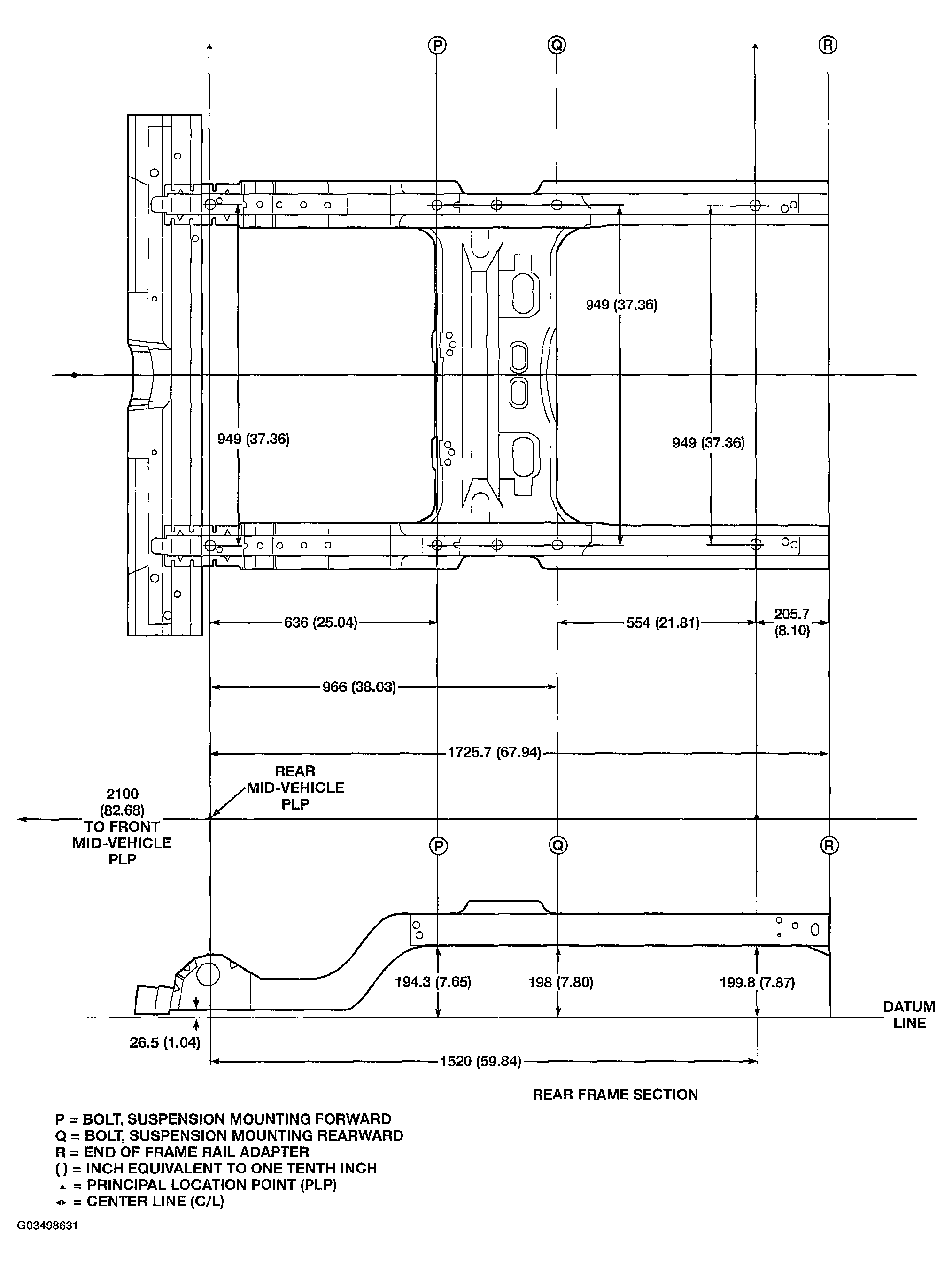

Fig 4: Rear Frame Section

Courtesy of DAIMLERCHRYSLER CORP.
