Removal - Intrepid

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Release hood latch and open hood.
Remove push pin fasteners attaching bottom of fascia (air dam) to lower crossmember (Fig 1 ).

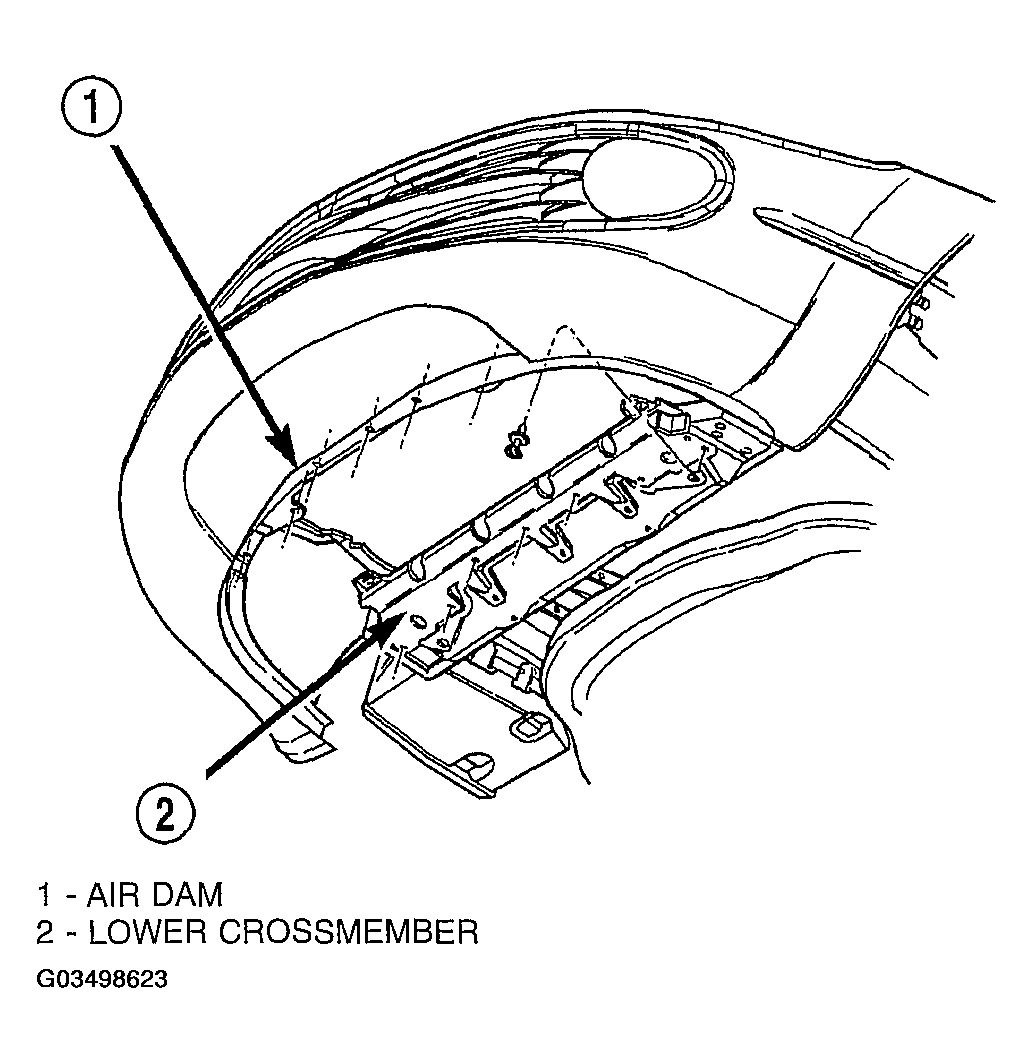

Fig 1: Air Dam
Courtesy of DAIMLERCHRYSLER CORP.
Remove fasteners attaching fascia to splash shields (Fig 2 ).

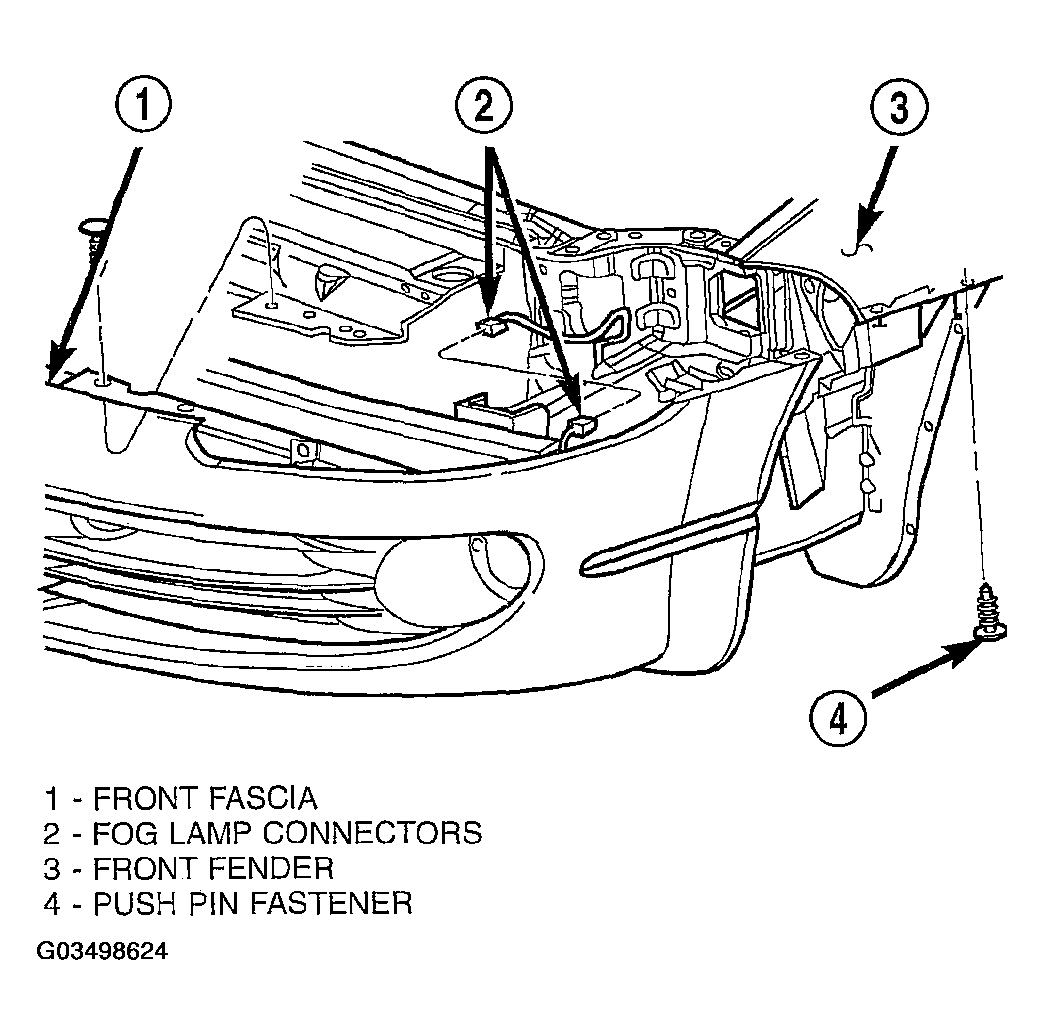

Fig 2: Front Bumper Fascia
Courtesy of DAIMLERCHRYSLER CORP.
Remove push pin fasteners attaching the fascia to upper radiator closure panel.
Pull the sides of the fascia outwards to disengage fascia from drive pins then pull fascia forward.
Disconnect fog lamp wire connectors, if equipped.
Remove fascia from vehicle.
