Front Tow Hook Bracket: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

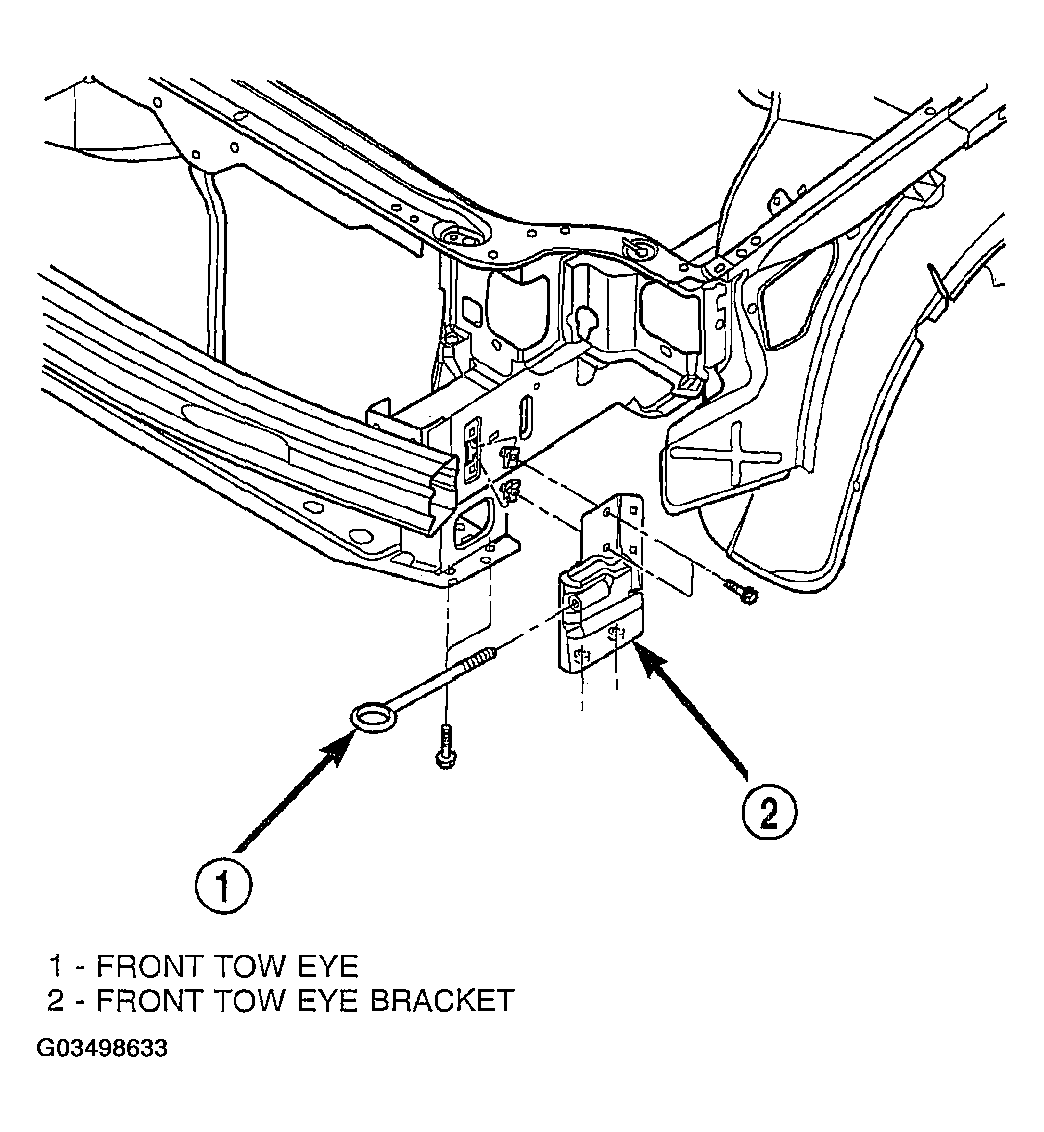

- Install the front tow eye bracket and fasteners. Torque bolts to 23 to 34 N.m (Figure ).
- Reinstall the front fascia as necessary. Refer to FRONT FASCIA for procedure.
- Lower vehicle from the hoist.
- Install the tow eye into the tow eye bracket. No torque specification is required, hand tighten only (Figure ).
- Reconnect the negative battery cable at the remote battery post.
