Check Strap: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Place door glass in the full up position.
Remove door trim panel. (Refer to TRIM PANEL )
Remove watershield as necessary.
Remove bolts attaching check strap to door end frame and body.
Remove check strap from vehicle (Fig 1 ).

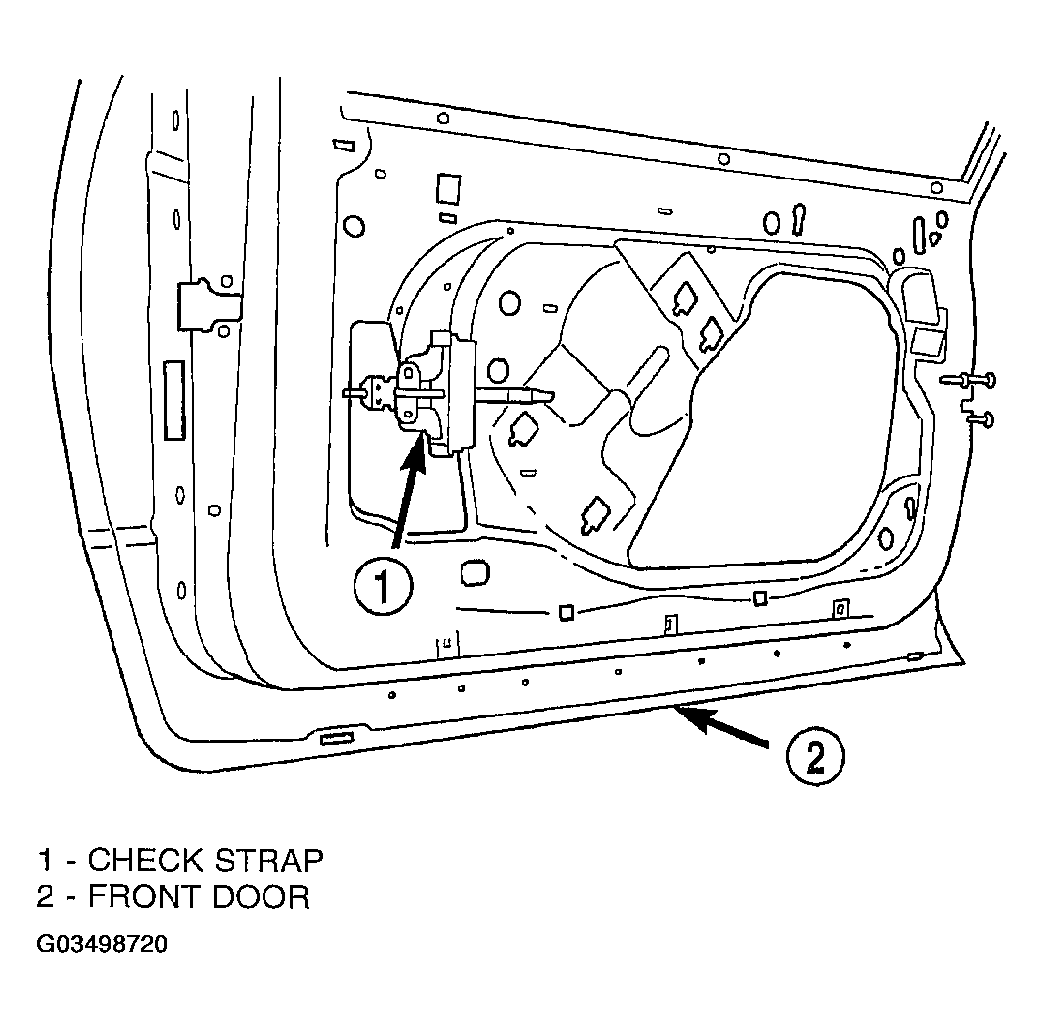

Fig 1: Front Door Check Strap
Courtesy of DAIMLERCHRYSLER CORP.
