Section 112 (Door System - Front): Latch: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Close door glass.
- Remove door trim panel. (Refer to TRIM PANEL )
- Remove water shield as necessary.
- Remove rear glass channel.
- Disconnect lock button link from door latch.
- Disconnect lock cylinder link from door latch.
- Disconnect outside door handle link from door latch.

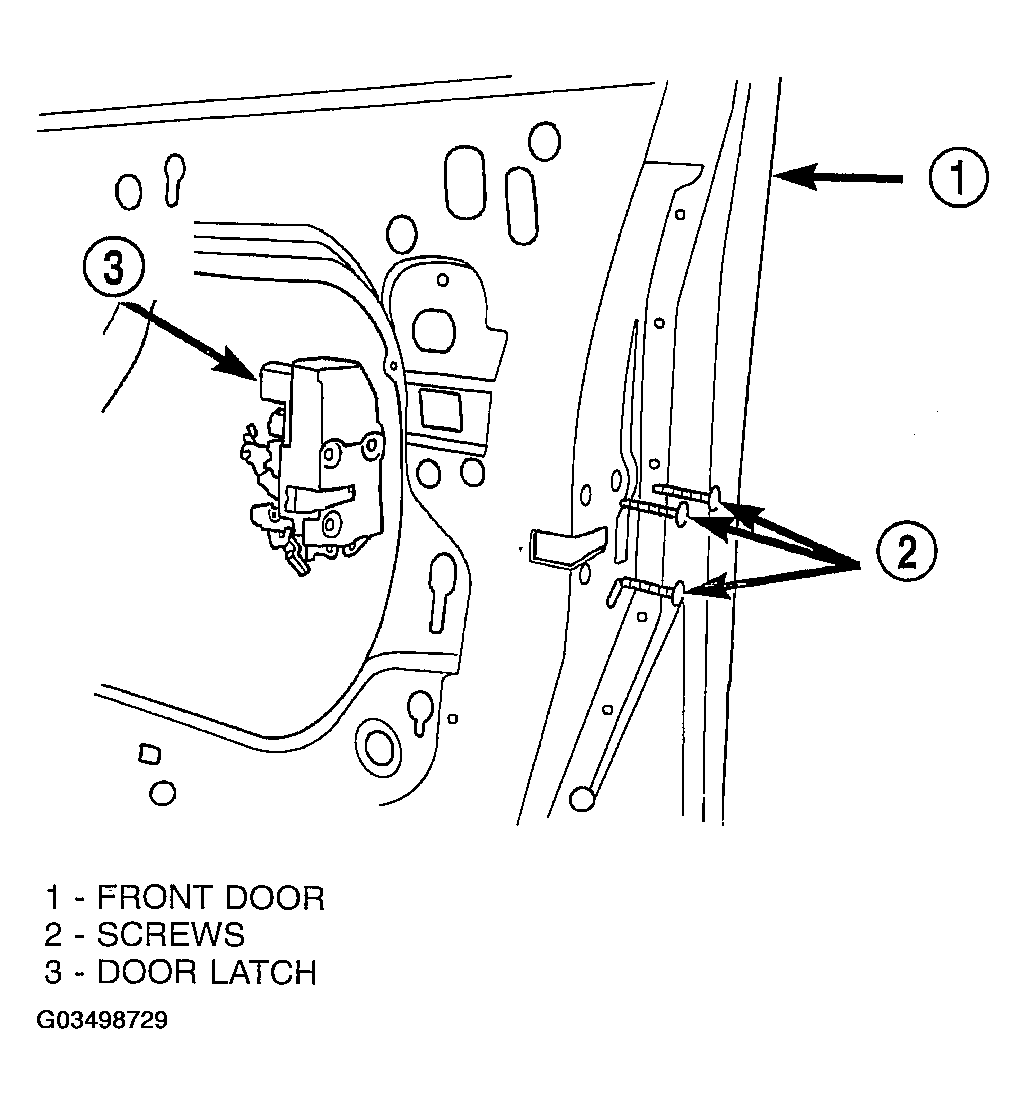

- Remove screws holding door latch to door end frame (Fig 1 ).
- Remove latch from door.
