Instrument Panel Center Bezel: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Connect wiring connectors to HVAC controls, cigar lighter/auxiliary power outlet and traction control switch (if equipped).

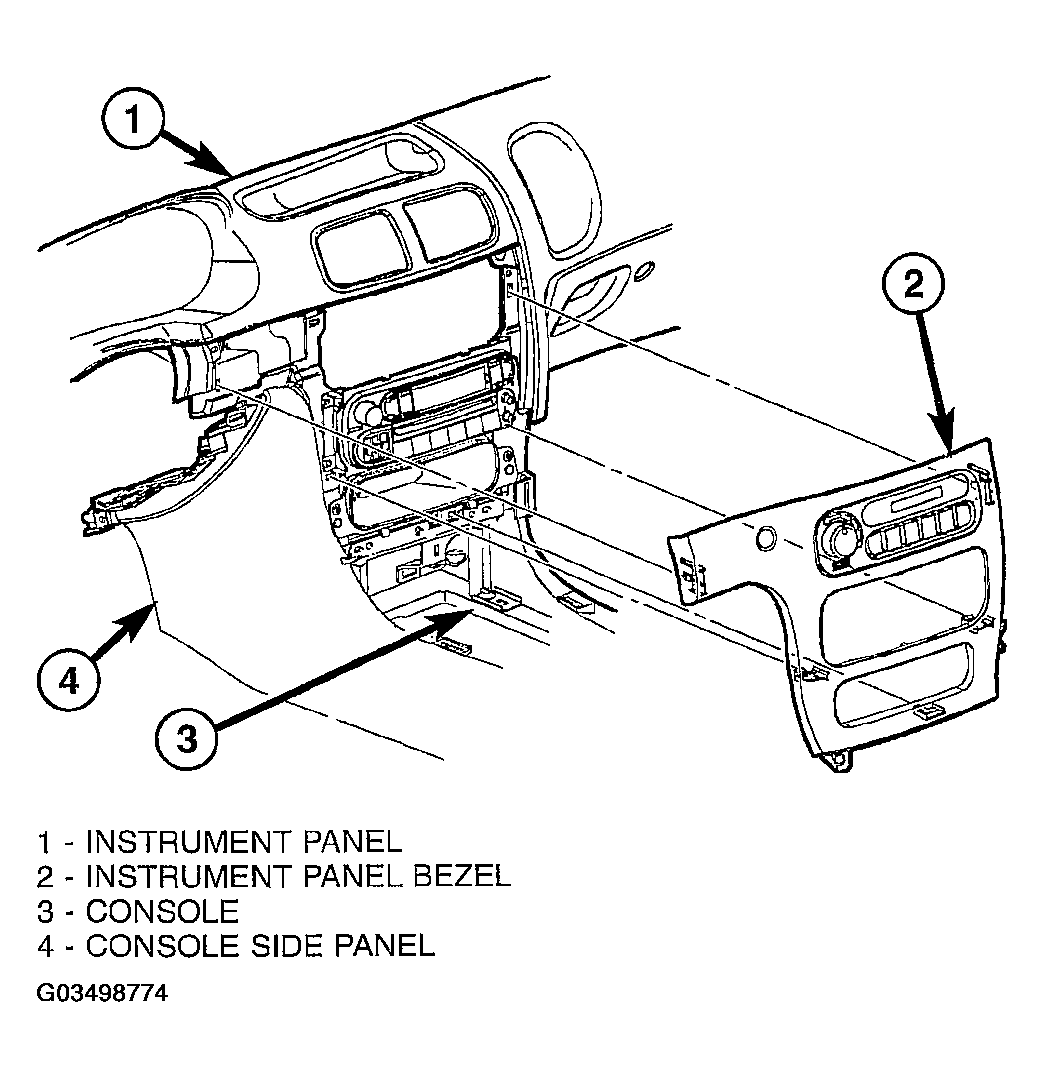

- Place the instrument panel center trim bezel into position and firmly snap into place (Figure ).
- Install the ash receiver (if equipped).
- Connect the negative battery cable remote terminal to the remote battery post (Figure ).
