Ambient Temp Sensor: Installation

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the sensor wiring harness connector.
  2. Install the sensor fastener screw and tighten to 2.2 N.m (20 in.lbs.).

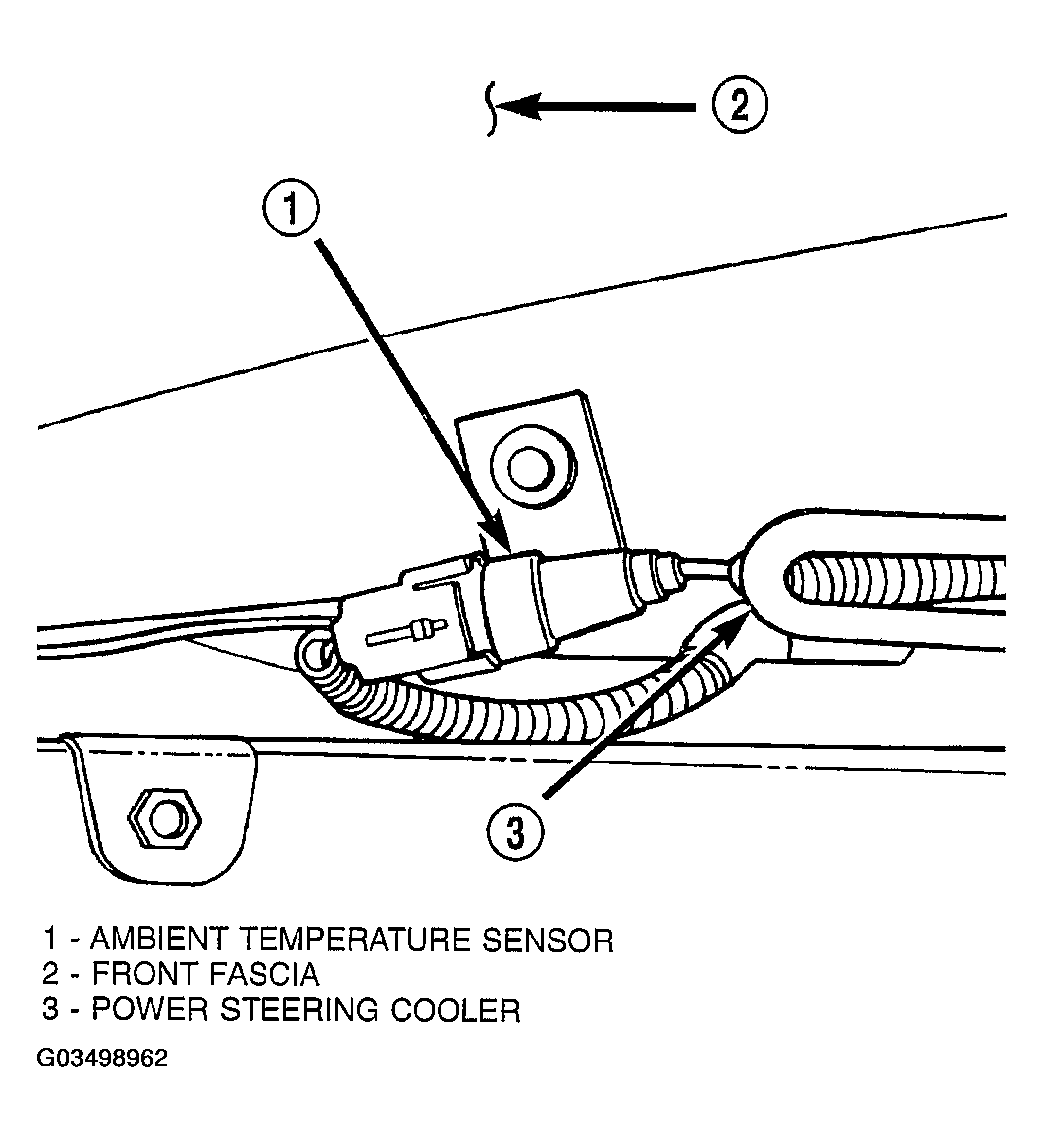

    Fig 1: Ambient Temperature Sensor Location
    G03498962Courtesy of DAIMLERCHRYSLER CORP.
